| Prod Model: |
T-3510&T-118P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Guangdong, China (Mainland) |
| Finish: |
Black Paint |
| Enclosure: |
Plywood |
| Warranty: |
One Years Free Warranty |
| Type: |
Two-Way Coaxial System |
| Noise: |
<95dB |
| Application: |
Commercial |
| Certification: |
RoHS |
| THD: |
<0.005% |
Product Description

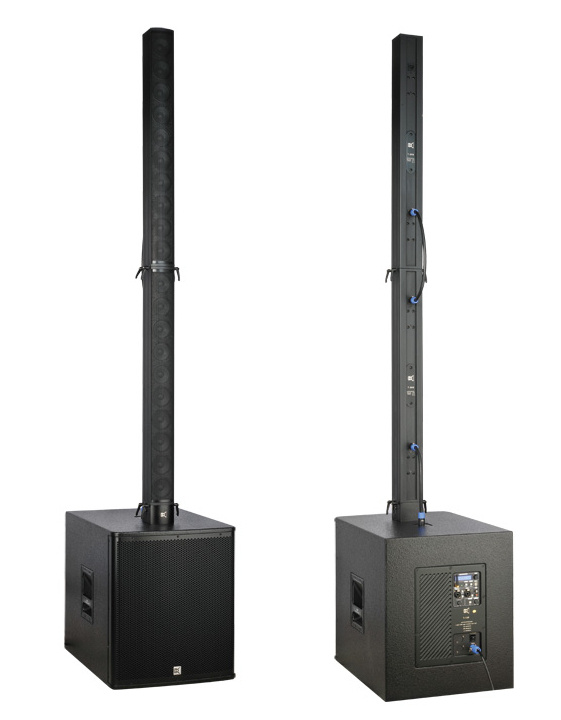

The T-3510 is a line array column system comprised of ten 3.5" neodymium magnet transducers housed in an elegant and sturdy stainless steel chassis. The ten closely spaced cone drivers provide true line array characteristics - phase coherence, low distortion and focused listening in both the near field, and at a distance from the speaker.
T-18/T-18P is a 18"subwoofer, specifically designed to reproduce deep bass frequencies with maximum efficiency, speed and impact. The T-18P with a Bluetooth features a highly efficient power amp module and incorporated DSP. It is also ideal for reproducing the concentrated energy of contemporary music environments such as discos, clubs and outdoor shows where extreme level of bass is required.
Model |
T3510 |
Type | Line Array Column system |
| Frequency Response | 130Hz-20kHz ± 3dB |
| Power handling | 250W(RMS)500W(PEAK) |
| Sensitivity | 96dB(1W@1M) |
| [email protected] | 120dB(PEAK/1M) |
| LF section | 5×3.5"(90mm)
20mm(0.8in)coil |
| Nominal impedance | 16 ohm |
| HF section | 5×3.5"(90mm)
20mm(0.8in)coil |
| Nominal impedance | 8 ohm |
| Output section | 2-channel |
| Dispersion pattern | 80° |
| Speaker cables | LF 1(+)1(-) HF 2(+)2(-) |
| Input connectors | 2×NL4MP speakon |
| Dimensions | 953×102×115mm(W×H×D) |
| Package dimensions | 1020×170×185mm/0.03cbm |
| Enclosure | Aluminum |
| Net weight | 6.5kg |
| Gross weight | 8kg |
Model | T-18 & T-18P(Active) |
| Type | Sub-bass system |
| Frequency Response | 35Hz-500Hz±3dB |
| Power handling | 800W(RMS)1600W(PEAK) |
| Power amp | 2X600W/4ohm + 1X900W/8ohm
(T-18P) |
| Amplifier type | Switching power amp, class D
circuit(T-18P) |
| Other functions | Bluetooth,DSP |
| Sensitivity | 104dB(1W@1M) |
| [email protected] | 136dB(PEAK/1M) |
| LF section | 1×18"(460mm) woofer 100mm
(4in)coil |
| Nominal impedance | 8 ohm |
| Surface finish | Black paint |
| Input connectors | 2×NL4MP speakon |
| Dimensions | 650×546×780mm(W×H×D) |
| Package dimensions | 720×646×850mm/0.40cbm |
| Enclosure | Plywood |
| Net weight | 48kg(T-18)/54kg(T-18P) |
| Gross weight | 51kg(T-18)/57kg(T-18P) |
