Product Description
New Block Ice machine
1. Less freezing time
2. Less space
3. Less cost, civil work, equipment and workers
4. Easy Operation
5. Food grade
New block ice machine Introduction
As conventional way to produce block ice is mainly from brine system, first you have to freeze the brine water, then put the ice can into the brine tank, take out the ice can for harvesting block ice after 20 hours or more. This system is complicate and you have to do a lot of civil work.
Our new block ice machine systems just need 2 to 4 hour for a batch according to block ice dimensions.

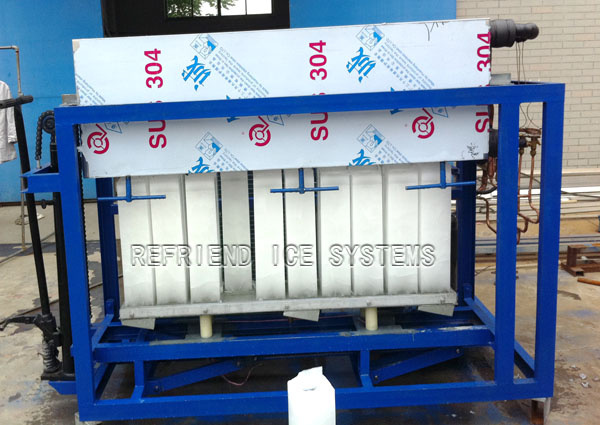

The new block ice system adopt aluminum plate as ice can(see the pic). The plate is hollow, the refrigerant can evaporate inside. That means it can directly freeze the water inside. This gets more efficience than that of brine system.
With less freezing time, the machine could be much smaller other systems with the same capacity. It's energy-saving too, obviously
This is the intergrated and compact system with refrigeration unit. It is plug-ready and built for tropical conditions and coastal climate.
The ice cans are made of food-grade alumium plate, never corrode, The parts contact with water are food grade too, are stainless steel or PVC. It is fully designed with food-grade standard.
New block ice machine Features:
Block ice plant Capacity: 1T to 20T
Ice block: 5kg to 20kg
Block ice plant Freezing Time: 2-5 hours
Intergarted machine with all components
PLC automatically controlled
Can put in a container to built a containerized plant
Bitzer or copeland compressor
Danfoss refrigeration part.
Less working field, less civil work, less capital cost
We are specialist in manufacturing and supplying Flake Ice Machines, shell ice machine, fluidic ice machine, tube ice machine and block ice machine, horizontal and vertical contact plate freezer, IQF, freezing room and cold room, etc.
The range of ice making capacity of our ice machine is from 800kg/day to 100tons/day, also we can supply sea water ice machine which can be installed on the fishing boats directly.
With an energetic team and more than ten years experience in international trade, we have our own international trading company LIGHTSTAR INTERNATIONAL TRADING Co., Ltd which is one of Sourcing Management Co., Ltd. Now in providing top services to the individuals and companies that come to China for business.
