| Prod Model: |
LED Sign double sided display series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
16mm |
| Display Function: |
Text Display |
| Scanning Mode: |
Static Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
ETL |
| Pixel Configuration: |
1r;1r1g |
| Average Power Consumption: |
7W; 15W |
| Pixel Density: |
3906 Dots/Sq.M |
Product Description

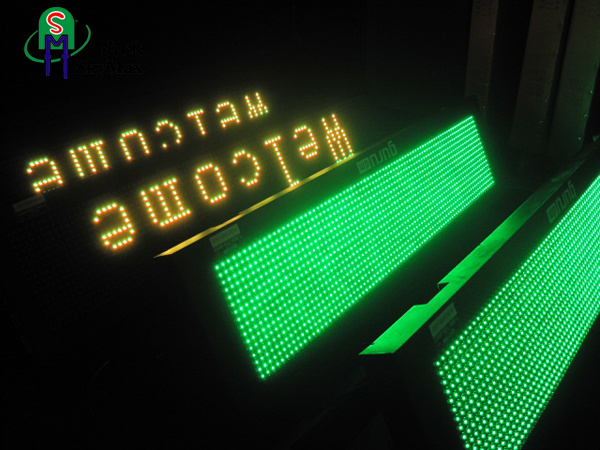

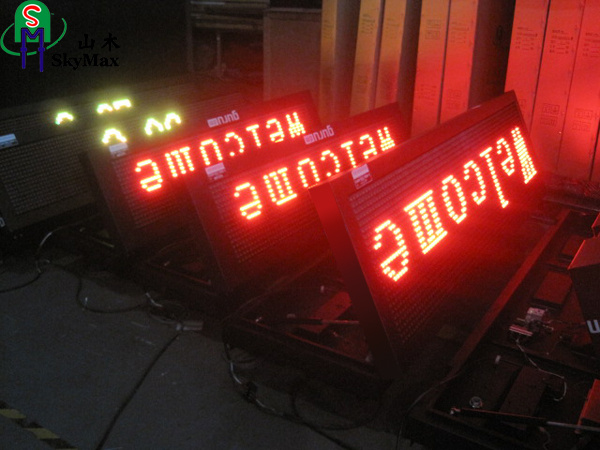

Mono color LED moving text sign.
Red, green, blue, white color is available.
Messages can be sent into the controller card and stored and programmed.
Asychronous system.
The sign is made basing on standard module size, can be made into any size the customers require.
Specification of P16 Outdoor Single Color Display
1. Size of Pixel Diameter(mm): 4.0
2. Pitch of Pixel(mm): 16.0
3. Quantity: 2R/3R
4. Colors: 1
5. Brightness(mcd): 3000 / 4500
6. Frame Rate(Hz/s): 128
7. Refresh Rate(Hz): 240
8. LED Life-span(hour): 80000
9. Mean Time Between Failures(hour): 50000
10. Viewing Angle (horizontal axis): >1600
11. Viewing Angle(vertical axis): >600
12. Data Transfer Range: RS485(1.2KM)/RS232(15m)
13. Viewing Distance (m): 16— 100
14. Module Demensions: WxH(mm): 256X128
15. Module Resolution WxH(pixel): 16X8
16. Maximum Power Consumption of the Module(W): 7 /11
17. Average Power Consumption of the Module(W): 2 /3
18. Pixel Density(pexels/m2): 3906
Specification of P16 Double color display
1. Size of Pixel Diameter(mm): 4.0
2. Pitch of Pixel(mm): 16.0
3. Quantity: 2R1G
4. Colors: 3
5. Brightness(mcd): 6000
6. Frame Rate(Hz/s): 128
7. Refresh Rate(Hz): 240
8. LED Life-span(hour): 80000
9. Mean Time Between Failures(hour): 50000
10. Viewing Angle (horizontal axis): >1600
11. Viewing Angle(vertical axis): >600
12. Data Transfer Range: RS485(1.2KM)/RS232(15m)
13. Viewing Distance (m): 16— 100
14. Module Demensions WxH(mm): 256X128
15. Module Resolution WxH(pixel): 16X8
16. Maximum Power Consumption of the Module(W): 15
SkyMax Display Technologies Co., Ltd is a world class advanced enterprise specialized in designing, researching and manufacturing LED lamps, LED Display and LED lighting. We are service enterprise in LED display field and focusing on offering LED projects solution. The company founded in 2006 and located in Zhongshan city which is famous as 'The China lighting city'.
SkyMax has 30, 000 square meters of air conditioned workshop area including dustless rooms, anti-static workshop, LED module aging room, LED display aging room. The factory is also equipped with all new and most advanced world first-class machines for LED automatic production line: American ASM auto-die bonder, ASM auto-wire bonder, Taiwan auto-encapsulate machine, Taiwan Chang-Yu handler, automatic LED braider, America Global automatic LED inserting machine, Japan JUKI automatic SMD machine, N2 lead-free relow soldering system, N2 lead-free dual wave soldering system. The company also has the machines testing system, including: Automatic PCB painting machine, automatic lamps adjusting machine, automatic rubber filling machine, automatic molding machine as well as high and low temperature testing machines, constant temperature and humidity machine, salt-spraying machine, shaking machine, waterproof testing machine. We have a group of professional, stable, pragmatic and innovative high-quality research and development team, which forms LED devices production to terminal manufacturing complete LED chain. SkyMax chooses high point, high standards, strict demand, in strict accordance with ISO9001: 2008 quality Guarantee system operation, and meticulous management into all aspects of production to ensure the quality of our products at the industry-leading position.

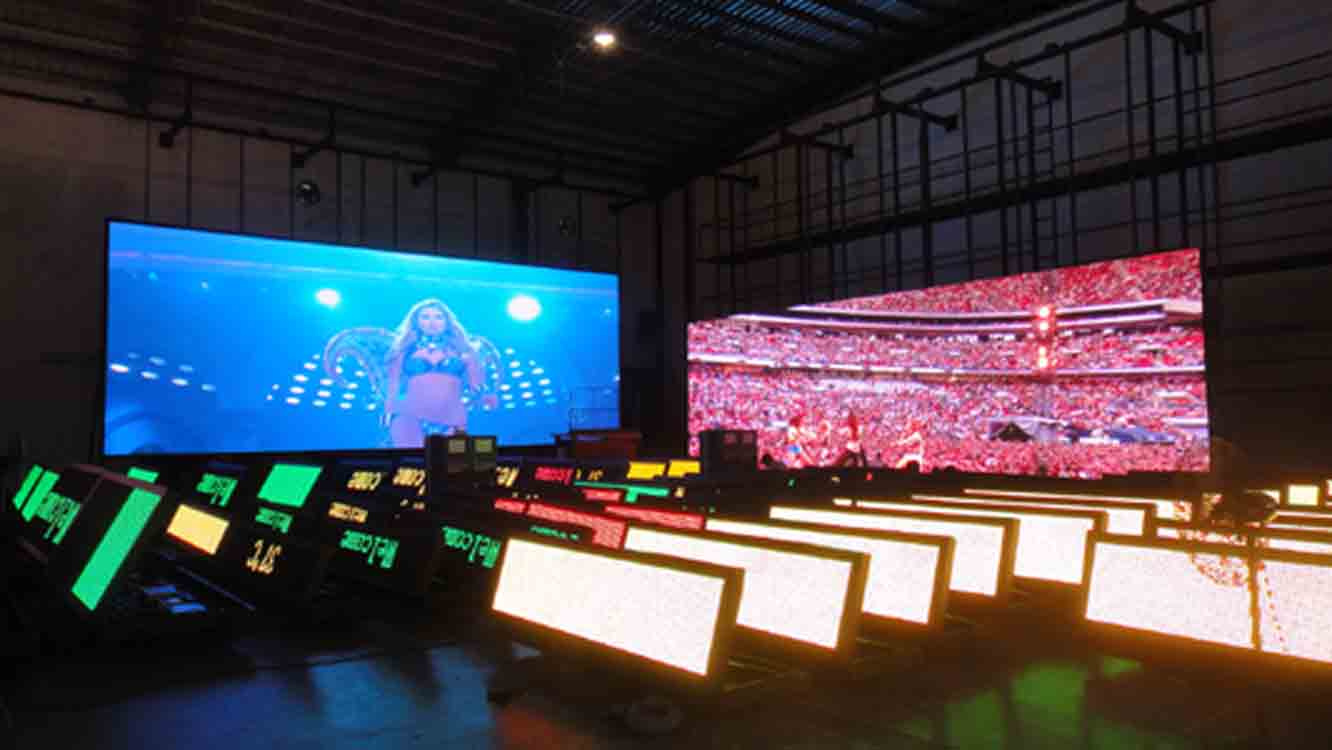

The company adopts advanced technology and management, producing a wide range of light-emitting diode, designing and manufacturing various electronic LED display, LED lighting to suit indoor and outdoor applications such as various stadiums, airports, wharf, stations, commercial system, exhibition centers, advertising etc. The products have been sold to America, Europe, South America, East Europe, Middle East, HongKong, Macao, the quality and customer service has won the recognition and acclaim. We are willing to work together with you to create a global production base for high-quality LED.
The company complies with the time development, promotes the scientific innovation and the time positively connects rails, the company quality system has updated into ISO9001: 2008, all products have got the certification of CE, FCC, RoHS ect.
To be the popular brand in LED business line is the final target of SkyMax. SkyMax means 'Mountain mind, Contains infinite; Green trees, Indomitable', SkyMax staff take 'honest, contains, thanks giving, responsibility' as the core values. Take 'creating professional, reliable products' as the duty. Offer the best products, best after-sale service. All SkyMax staff work together and let SkyMax products be popular in the world.
