| Prod Model: |
SV12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2u |
| Noise: |
≥105dB |
| Application: |
Commercial |
| Certification: |
CE |
| THD: |
<0.005% |
Product Description
2ch, 4CH Switching Power Amplifier (SV8, SV-12)
It is Light weight only 14KG,supply 10000W power output
It can be used for church,concert,nightclub,stadium,theater,speech,big live sound reinforcement etc
Switching amplifier SV series is big power amplifier, good quality, high stability, less heat, big power output.
The global power supply works anywhere in the world and offers PFC ( Power Factor Correction).
It is a switching power supply easily deals with a very high variation in the AC
mains voltage: it can drop by up to 20% below its nominal level (e.g. to 180VAC instead of 230VAC) without any loss of the amplifiers rated output power.
Regulated power supply also presents some other sonic advantages, such as better cone control and the same fast response as a linear power supply.Digital switch amplifier SV12Application: Commercial
Noise: <95dB Certification: CE
Size: 2u Except market: Global
Additional info:
Trademark: ACLON Packing: Carton
Standard: 483x410x88mm origin: CHINA
Production Capacity: 3000pcs/month| ACLON audio- Switching Power Amplifier- SV series specification |
| Model | SV-12 | SV-8 | SV-600 | SV-1200 |
| Output Power(20-20kHz, 1W with 1 kHz ) | 4 Channel | 2 Channel | 2 Channel | 2 Channel |
| 8ΩStereo Power(RMS) | 1300WX4 | 1300WX2 | 600WX2 | 1200WX2 |
| 4ΩStereo Power(RMS) | 2200WX4 | 2200WX2 | 1500WX2 | 1800WX2 |
| 2ΩStereo Power(RMS) | 2600WX4 | 2600WX2 | / | / |
| 8ΩBridged Power(RMS) | 4200WX2 | 4400W | 3000W | 3000W |
| 4ΩBridged Power(RMS) | 5000WX2 | 5000W | / | / |
| FrequencyResponse(+o/-0.3dB,1W/8Ω) | 20 Hz - 34 kHz |
| THD 20 Hz - 20 kHz for 1 W | <0.1% |
| Signal-to-Noise Ratio | >112 dBA |
| Damping factor | >1000 | >700 | >600 | >600 |
| Channel separation (Cross talk) at 1 kHz | >70 dB |
| Input Connectors (per channel) | 3-pin XLR, electronically balanced |
| Output Connectors (per channel) | Speakon or Binding Posts 2-pole |
| Class circuitry | Class TD | Class TD | Class AB | Class TD |
| Tour Class Protection | ACL, IGM, Auto Ramp, short circuit, DC voltage, |
| turn-on/off transient, current inrush, sub/ultrasonic input |
| Operating voltage, 230 V / 115 V nominal | 150-260 V50/60Hz, / 70-140 V 50/60Hz selectable |
| Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
| Input impedance (unbalanced) | 20 k Ohm (10k Ohm) |
| Level adjustment (per ch.) | Front-panel potentiometer, 31 position detente from -into 0 dB |
| Dimensions (H×W×D) | 2U: 88×483×396mm |
| Packing dimension | 180×560×500mm |
| Net weight (kg) | 14 | 12 | 13 | 15 |
| Gross weight (kg) | 16 | 14 | 16 | 18 |
1. Selling to over 60 countries and regions2. High performance with competitive price 3. Amplifier, active line array speaker, customized speaker is our strong points. Amplifier product:

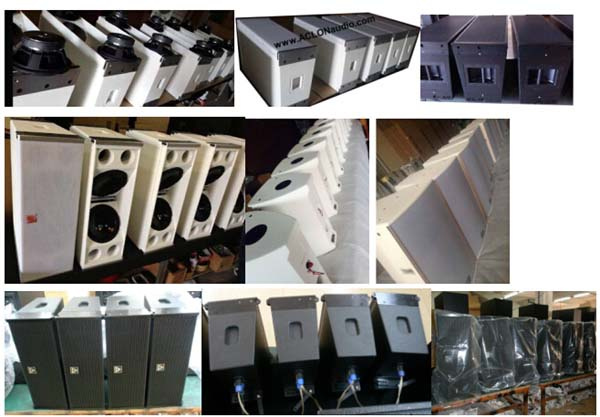

Some product:
Do you want to cut purchase cost?
Are you looking for reliable partner?
Contact ACLON now! Call me!
ACLON with you hand in hand, together, we will be stronger

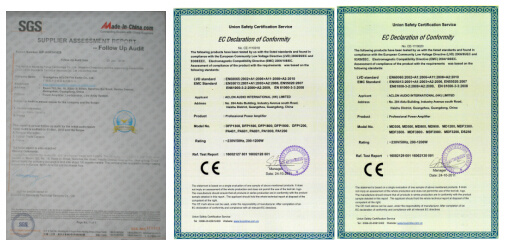

Certificate:
Guangzhou ACLON PRO Audio Co., Ltd. working many years have rich experience and ability for OEM /ODM. Offering over 50 various kinds of professional audio products and monthly output up to 6 thousands pieces. We are the best manufacturer that you can trust in China.

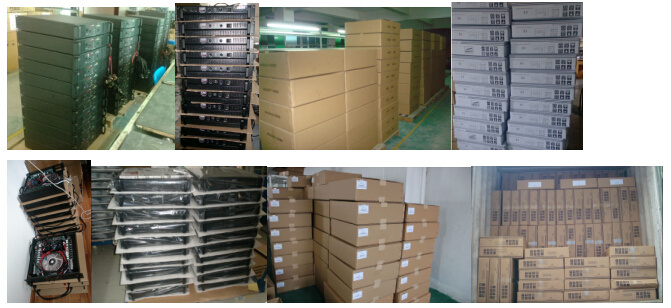

We have power amplifier and loudspeaker production workshop. OEM and sell ACLON brand is our main business. We are as professional audio factory. We can best control product quality and cost.
ACLON factory offer you not only a varied range of quality amplifier and loudspeaker products but also offer you technical assistance, all at very competitive prices.
Distributors welcome for ACLON products and any OEM/ODM order is welcome.
