| Prod Model: |
HC-DCP-001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Quality: |
Top Quality |
| Environmental Friendly: |
Raw Material Pass RoHS, SGS Test |
| Exterior: |
Good Looking |
| Material: |
Silicone |
| Type: |
Convex |
| Application: |
Camera |
| Brand: |
Tkm |
| Certification: |
RoHS |
Product Description

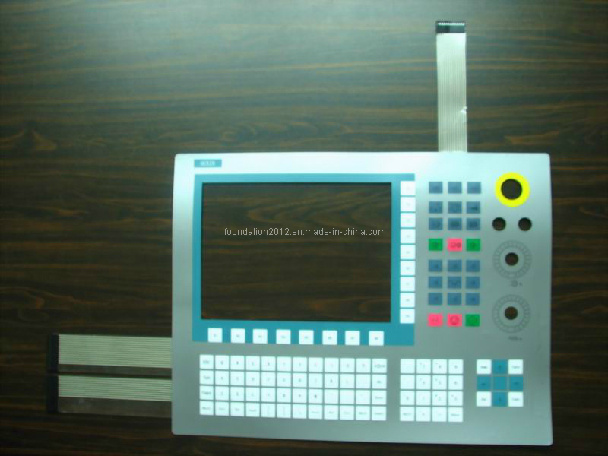

Digital Push Button Control Keypads Panel Film Switch
Digital Control Panel
Layers:
Overlay, Overlay adhesive, Dome retainer, Metal dome, Spacer adhesive, Circuit, Rear adhesive (as customers request)
Production Capacity:
Screen Print Department, IR Tunnel, Thickness Tester, IR Oven, Laser Cutting Machine, Punching Department, Emboss Key Section, Assemble, Electric Testing, OQC Department, Virtual Aspect Testing, Punch Machine Department, PU Coating Section,
Technical Parameters:
Wire Resistance: ≤ 1 Ohm/cm
Current Rating: 25-100mA, 0-30V DC
Work Voltage: ≤ 50V DC
Insulation Voltage: ≤ 100M Ohm 250V DC
Working Life: ≤ One Million Times
Work Temperature: -40 Centigrade-70 Centigrade
Work Humidity: 40 Centigrade-≤ 98%RH
Basic Material Pressurization: 1500V DC
| Insulation Resistance | <100MΩ,250V DC | Contact resistance | <1Ω /cm |
| operating voltage | ≤ 50VDC | working current | 25- 100mA,0-30V DC |
| reliability/service life | >1 million times/Withstand millions of cycles | Operating humidity | when40°C,<98%RH |
| spring time | ≤ 5ms | substrate voltage | 2000V DC |
| Tail flexiblility | any angle within 180 degree | Switch travel | Flat Type 0.05-0.3mm tactile type:0.3-1.5mm |
Foundation Industries Manufacturing Limited has been specialized in membrane field for over 15 years, which was founded in 1997, . It has two factories in Dongguan China, one is for membrane products (TKM membrane technology Ltd. )and the other is for silicone products(Huahongchuang). Now we have purchased a Taiwanese factory which is manufacturing various nameplates, and we' Ll use this new facility to expand our main business and make metal nameplate our new field.
We are an ISO9001: 2008 certified company and all of our products have passed RoHS and SGS test. We believe quality is vital for the growth of an enterprise, we undergo 100% functional test before shipment.
Our main product range are:
1)Membrane Switch and overlay
2)Flexible printing Circuit/ FPC/EL
3)Silicone products including silicone rubber key pad. And various silicone Rubber products.
4) Metal nameplate series
5) Rotary Switch/Rocker Switch/Push button Switch/Thermal protector
We' Ve established business relationship with over 120 customers from global market, including some famous brands such as PHILIPS, Siemens, Panasonic, SANYO, METTEL, BOSCH.
We sincerely hope can cooperate with you in the coming future!
