| Prod Model: |
NR6025 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Switching Power Adapter |
| Character: |
Fixed Plug |
| Color: |
Black or White |
| Input Type: |
Wall-Mount or Desktop |
| Energy Level: |
V |
| Max Output: |
90W |
| Quality Standard: |
High Quality |
| Safey: |
CE UL FCC Beab SAA RoHS GS C-Tick |
| Output Connector: |
Barrel Plug or Stereo Plug or USB Plug |
| Output Type: |
DC |
| Connection: |
Plug In |
| Usage: |
Display |
Product Description
FEATURES:

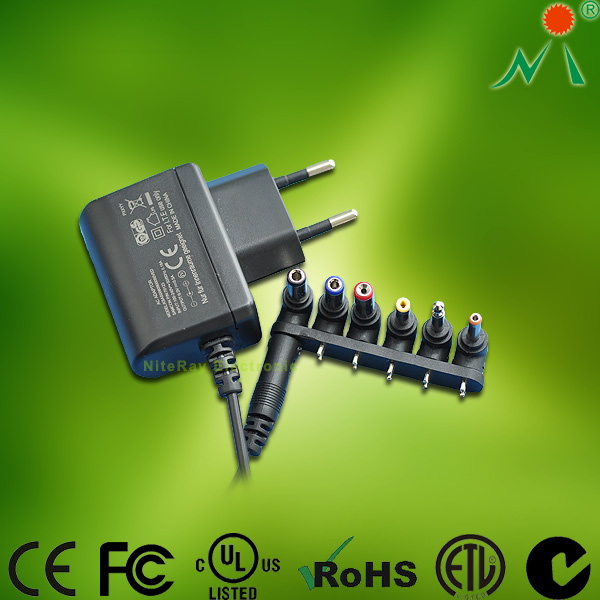

1) AC DC switching power adaptor travel adapter
2) Plug type for choosing: EU or US or UK or AU or Brazilian plug
3) CE/RoHS/ UL/FCC/C-Tick/SAA/BEAB/GS
4) Slim and compact design
PRODUCT HIGHLIGHT:
1. Complete, inexpensive, self-contained
2. Regulated power source
3. Super power supply, fixed frequency control circuit guarantees Stable, long-lasting output required by any mobile Eectronics, such as mobile phones, PDA, Digital camera, CDMA Digital phones, Walkie- talkie, tester machine, HUB, Modem, Scanner, Printer and much more
4. Extra safe design, all with their respective
5. Safety approvals
6. Ultra low no-load /standby power consumption, meeting EC 2005 green power requirements
7. Light, sleek, and compact design
8. On-line LED power indicator
9. High efficiency circuitry that generates little heat B urn-in EMI filter
PROTECTION:
Short circuit protection
Over voltage protection
Over current protection
Thermal shutdown capability
RELIABILITY:
Burn-in: 100% full load, 40 ± 5° C, 4Hrs min
Leakage Current: 0.25mA max. At 254Vac
Withstanding Voltage: (between primary & secondary) 3000Vac 1 minute 10mA max
MTBF: Meet MIL-HDBK-217F over 50K hours, full load, 25 ° C
SAFETY APPROVALS:
UL60950 3 rd edition CAN/CSA C22.2 NO. 60950
EN60950: 2000
CE(Low Voltage Directive)
AS/NZS 60950: 2000
PSE IEC60950
GB4943-2001
EMISSIONS:
FCC Part15 class B
EN55022 class B
AS/NZS3548, AS/NZS4251.1 class B
VCCI class B
CNS13438 class B
GB9254-1998/GB17625.1-2003
CISPR22 class B
SAFETY APPROVALS:
UL1310
EN60335
CE
IMMUNITY:
EN55024/A1: 2001
Electrostatic discharge: 61000-4-2
Radiated electromagnetic fields: 61000-4-3
Fast transients(burst): 61000-4-4
Surge transients: 61000-4-5
Conducted disturbance: 61000-4-6
Voltage dips, interruptions&variations: 61000-4-11
|
Description |
Symbol |
Min |
Typ |
Max |
Units |
Comment |
|
Input |
|
Voltage |
V IN |
90 |
120/240 |
264 |
V AC |
2 Wire no Protective Ground |
|
Frequency |
F LINE |
47 |
50/60 |
63 |
Hz |
|
|
No-load Input Power(230VAC) |
|
|
|
0.5 |
W |
|
|
Efficiency |
η |
|
75 |
|
% |
|
|
Inrush Current(240Vac) |
I |
|
40 |
|
A |
Cold 25 o C |
|
Environmental |
|
Operating Temperature |
T |
0 |
/ |
40 |
o C |
Free convection, Sea level |
|
Non-operating temperature |
T |
-20 |
/ |
80 |
o C |
Free convection, Sea level |
|
Operating humidity |
T |
10 |
/ |
90 |
%RH |
Non condensing |
|
Non-operating humidity |
T |
10 |
/ |
90 |
%RH |
Non condensing |
Typical model list:
|
INPUT CONDITION |
DC OUTPUT VOLTAGE |
DC OUTPUT CURRENT |
OUTPUT VOLTAGE PRECISION |
RIPPLE & NOISES |
REGULATION |
MAXIMAL OUTPUT POWER |
|
LINE |
LOAD |
|
Input voltage: 90-264VacFrepuency: 47-63Hz Inputcurrent: 0.6A |
1 |
3.0-4.0V |
0.1-4.0A |
6% |
100 mV |
± 1% |
± 5% |
16W |
|
2 |
4.1-6.0V |
0.08-4.0A |
6% |
100 mV |
± 1% |
± 5% |
24W |
|
3 |
6.1-6.9V |
0.07-4.1A |
6% |
100 mV |
± 1% |
± 5% |
25W |
|
4 |
7.0-8.0V |
0.06-3.57A |
5% |
100 mV |
± 1% |
± 5% |
25W |
|
5 |
8.1-9.0V |
0.055-3.09A |
5% |
100 mV |
± 1% |
± 5% |
25W |
|
6 |
9.1-10.0V |
0.05-2.75A |
5% |
100 mV |
± 1% |
± 5% |
25W |
|
7 |
11.1-11.9V |
0.04-2.25A |
5% |
100 mV |
± 1% |
± 5% |
25W |
|
8 |
12.0-17.9V |
0.04-2.5A |
5% |
100 mV |
± 1% |
± 5% |
30W |
|
9 |
18.2-22.0V |
0.035-1.67A |
5% |
100 mV |
± 1% |
± 5% |
30W |
|
10 |
22.1-30.0V |
0.03-1.36A |
5% |
100 mV |
± 1% |
± 5% |
30W |
|
11 |
30.5-31.0V |
0.025-0.98A |
5% |
150 mV |
± 1% |
± 5% |
30W |
|
12 |
31.5-48.0V |
0.02-0.95A |
5% |
150 mV |
± 1% |
± 5% |
30W |
|
REMARK: ( ripple and noise) 1. Measurements shall be made with an oscilloscope with 20MHz bandwidth. 2. Outputs shall be bypassed at the connector with a 0.1uF ceramic disk capacitor and a 10uF electrolytic Capacitor to simulate system loading. |
