| Prod Model: |
MP-326 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| RoHS: |
Yes |
| Material: |
Paper Phenolic Copper Foil Substrate |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Flame Retardant Properties: |
V0 |
Product Description
1. PCBA, SMT, DIP and final Assembly.
2. High quality with best service and fast shipping.
3. Certification CE & RoHS.

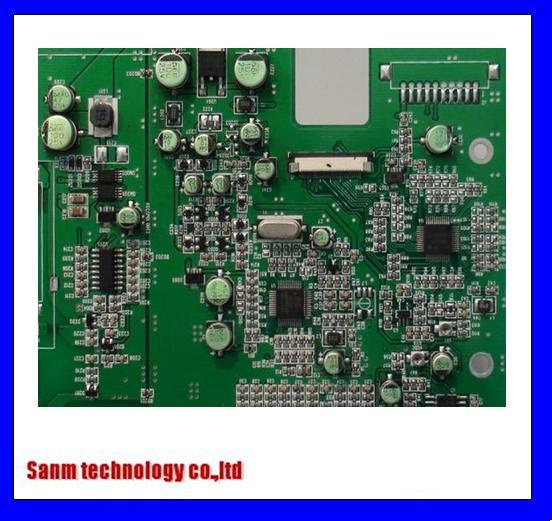

Your professional OEM partner for consumer electronics, digital photo frame Printed Circuit Board Assembly(PCB Assembly)
Technical discription:
RoHS compliant
Soldering components: 122PCS
Minimum component size: 0402
Our PCB fabrication capacity:
1. Layer Count: 1-22 layers HDI
2. Material: CEM1, CEM3, FR-4, High TG FR4, halogen-free FR4, aluminium, ceramic etc.
3. Maximum Size: 610mm× 1200mm
4. Board thickness: 0.125mm-6.0mm
5. Minimum Line/Space: 0.075mm
6. Minimum Drilling Hole(Mechanical): 0.15mm
7. Minimum Laser Hole: 0.075mm
8. Copper Thickness: 17µ M-175µ M
9. Mini Solder Mask Bridge: 0.025mm
10. Impedance Control Tolerance: L. ± 5%
11. Surface finishing: HASL, LEAD-FREE HASL, Immersion gold, Immersion tin, Immersion Silver, Plated gold, OSP, Carbon ink.
12. Solder Mask Color: Green, Red, White, Yellow, Black, Blue.
13. Quality Standards: IPC-A-600F and MIL-STD-105D China GB4588
14. Inner Packing: Vacuum packing/Plastic bag Outer Packing: Standard Carton Packing
15. Special Requirements: Buried and blind vias+controlled impedance+BGA
16. Provides OEM services to all kinds of PCBA as well as electronic encased products
17. Profiling: Punching, Routing, V-CUT, Beveling
18. Certificate: UL, ISO9001: 2000, ISO14001, SGS, RoHS
Founded in 2006, Sanm Technology is a newly established high-tech company. We are one of the leading providers of innovative products for EMS, including PCB, PCBA, imaging products. Our other products include camera modules, membrane switches/panels and enclosures, all of which have large global market shares.
Our primary objective for all our product lines is to be number one in South China and within the top three in the global market. Since then, our distinguished reputation has its beginning in the PCBA industry, where we have ranked number one for the past years. Today, we employ over 200 staff and we have two domestic OEM factories, with global headquarters located in Shenzhen.
We are a fully electronic contract manufacturer which delivers complete turn-key services including BOM, material procurement, quality assurance, assembly and logistics services. We are sure that we can provide you complete product support to make your outsourcing projects successful. Our capabilities and services include but are not limited to material sourcing services, sample and prototype building, PCB assembly and box building.
We are dedicated to offering superior-quality products at competitive prices. Send us an inquiry today.
