Product Description

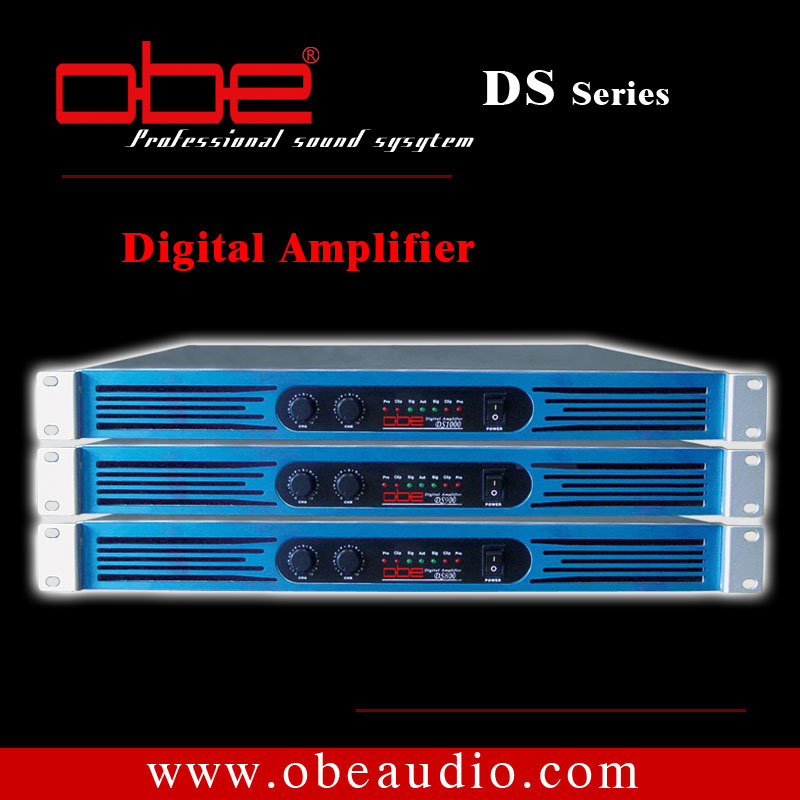

OBE Audio
Model: DS-1000
Power Output(Max)8Ω : 1100W× 2
Power Output(Max)4Ω : 1800W× 2
Power Output(Max)2Ω : 3400W× 2
Input Impedance: 20KΩ -10KΩ
Frequency Response: 10Hz-40KHz
THD: ≤ 0.1%
S/N: ≥ 105dB
IMD: ≤ 0.2%
Damping Factor: >600
DC Protection: Have
Temperature Protection: Have
Input Sensitivity: 1.1V
Net Weight: 10Kg
Dimension(HWD): 46× 500× 480mm
Model: DS-900
Power Output(Max)8Ω : 1000W× 2
Power Output(Max)4Ω : 1650W× 2
Power Output(Max)2Ω : 3200W× 2
Input Impedance: 20KΩ -10KΩ
Frequency Response: 10Hz-40KHz
THD: ≤ 0.1%
S/N: ≥ 105dB
IMD: ≤ 0.2%
Damping Factor: >600
DC Protection: Have
Temperature Protection: Have
Input Sensitivity: 1.1V
Net Weight: 10Kg
Dimension(HWD): 46× 500× 480mm
Model: DS-800
Power Output(Max)8Ω : 900W× 2
Power Output(Max)4Ω : 1500W× 2
Power Output(Max)2Ω : 2800W× 2
Input Impedance: 20KΩ -10KΩ
Frequency Response: 10Hz-40KHz
THD: ≤ 0.1%
S/N: ≥ 105dB
IMD: ≤ 0.2%
Damping Factor: >600
DC Protection: Have
Temperature Protection: Have
Input Sensitivity: 1.1V
Net Weight: 10Kg
Dimension(HWD): 46× 500× 480mm
Model: DS-650
Power Output(Max)8Ω : 650W× 2
Power Output(Max)4Ω : 1200W× 2
Power Output(Max)2Ω : 2300W× 2
Input Impedance: Balanced: 20kΩ Unbalanced: 10kΩ
Frequency Response: 20Hz-20KHz
THD: ≤ 0.1%
Input Separability: 1.1V
IMD: ≤ 0.2%
Switching speed(8Ω ): 50V/μ S
Damping Factor: >600
DC Protection: Yes
Tempearature Pretection: Yes
Dimension(HWD): 46× 500× 460mm
S/N: ≥ 105dB(20Hz~20KHz)
Net Weight: 8.5Kg
Model: DS-550
Power Output(Max)8Ω : 550W× 2
Power Output(Max)4Ω : 1000W× 2
Power Output(Max)2Ω : 1900W× 2
Input Impedance: Balanced: 20kΩ Unbalanced: 10kΩ
Frequency Response: 20Hz-20KHz
THD: ≤ 0.1%
Input Separability: 1.1V
IMD: ≤ 0.2%
Switching speed(8Ω ): 50V/μ S
Damping Factor: >600
DC Protection: Yes
Tempearature Pretection: Yes
Dimension(HWD): 46× 500× 460mm
S/N: ≥ 105dB(20Hz~20KHz)
Net Weight: 8.5Kg
