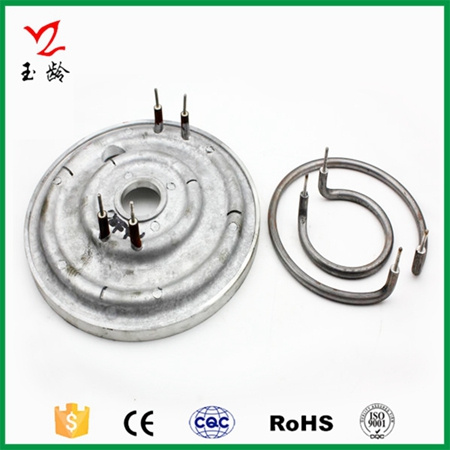

Die Cast Aluminum Heating Element for Rice Cooker

Prod Model:	YL-TYN4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Aluminum
Voltage/Wattage:	220V/1500W
Tube Length:	Customized
Warranty:	2-5 Years
Leakage Current:	<0.5mA
Intension:	1800V/S

Product Description

die cast aluminum heating element for rice cooker



Specification  parameter	Detail	Remark
Sheath Material	Aluminum	Materialscan be changed to be copper,sus321,sus316L,incoloy804,incoloy800 as requested
Voltage/wattage	220v/1500w	Voltage/Wattage/Tolerance can be customized as required,and Wattage tolerance(cold condition)+5%-10%
Tube Diameter	8.5mm	Tube diameter can be customized as required
Weight	400g
Screw thread	1"	Other thread can be made if required
MgO	A	We can use other powder if requested
Resistance  wire	Ni80Cr20	Or OCr25Al5
Tube Length	Customized	or customized
Leads	Stainless steel	Materials of terminal piece could be stainless iron,stainless steel if required
Faston Terminal	Nickel plated iron	Material of terminal housing could be stainless iron,stainless steel if required
Insulation resistance	≥1000MΩ(cold condition)
Leak current	≤0.5mA
Density	6.6W/CM2
Usage	It can be used direct with batteries, solar panels, hydroelectric generators, as a wind turbine dump diversion load.
Warranty	3-5 years


 Applications:

1. Injection and Blow Moulding
2. Extruders
3. Moulds & Dies
4. Packaging machinery
5. Medical equipments
6. Thermoforming equipme


FAQ
1.Q:Worry about your money?
   A: Trade Assurance can protect your money. (more information, pls contact me)

2.Q:Are you a factory or trading company?
   A:We are a factory.specilizing in heating element for over 40 years.

3.Q:Where is your factory located? How can I visit there?
A:our factory is located in Qingtong Industrial Area,Jiangyan District,Taizhou City,Jiangsu Province,China,about 3 hours bus ride from Shanghai.All our clients,from home or abroad, are warmly welcome to visit us!

4.Q:How can I get some samples?
 A: 1 pcs sample for free. If you need more samples please pay the cost, but we will return the samples cost to you when you formal order.

5.What is the delivery date of the samples?
 A:About 5 ~ 10 days. Because some kind of the heating elements need to prepare the material.

6.Q:Are your products customized?
 A:Yes,the products in the website are only the common type or the previous types from other customers,we can supply the new products according to your requirements or drawings.

7.Which items you are inspection?
1, External dimension.  2, Insulation Puncture Test (2000V 1amp).  3, Insulation resistance test (1000V).

8.Q:If we find the elements has quality problems I mean If, how will you dispose?
 A:The frist, our factory has ISO9001:2008 quality control certificate and we has been implemented, so it is slim chance. But, if you find any elements has quality problems please tell me, then we will 100% compensation the rejects with next order!

We custom design various heating elements as your demands. Please kindly advise your specifications.

1, Material, diameter, length
2, Wattage and voltage
3, Working environment and temperature
4, Type of terminal
5, Drawing of special type configuration
6, Special testing requirements before shipment
7, We like to got any questions of heating elements from your side. We will try our best to do for you.


                   Any new design and technical drawing are welcome.  click below!
