| Prod Model: |
DGX-IP06 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pitch: |
6mm |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/8 Scan |
| Certification: |
UL |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
6mm |
| Pixel Density: |
27,777 dots / m² |
| Application: |
Shopping Guide |
| IP Rating: |
IP40 |
| System Operating Platform: |
WIN XP |
Product Description

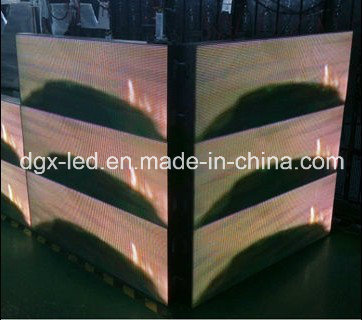

P6 indoor led screen
Features
1)cost performance;
2)high resolution, 27, 777 dots/m2;
3)easy installation, low maintenance cost
4)full color to play vivid video advertisement;
5)advance video control system and super input system;
6)pre-setup play list, easy to handle;
7)software for remote control of communication and scheduling;
8)various ads available to play, text, picture, video, flash, etc.;
9)widely used in stage, concert, stadium, parties, bank, restaurant, station, shopping center, government, schools, and enterprise;
10)long life-span;
11) customized design available
12) certification: CE, Rohs, FCC, SGS, UL
| 1 | Module Size | 192mm * 96mm |
| 2 | Module resolution | 32*16 pixels |
| 3 | Density | 27777 dot / M2 |
| 4 | Power consumption | ≤1000w/m2 |
| 5 | Display Luminance | ≥2000cd/m2(Full Black Light:≥1200cd/m2) |
| 6 | Drive Mode constant | 1/ 8 scan |
| 7 | Viewing Angle | Horizontal :140°,vertical : 140° |
| 8 | Viewing Distance | From 5 meters to 60 meters |
| 9 | Grey Scale | red\green\blue ,256 gray scales respectively |
| 10 | Color | 16.7 million |
| 11 | Change frame | ≥100HZ |
| 12 | Scanning rate | 180HZ |
| 13 | Screen life | 50000-80000 hours |
| 14 | Screen MTBF | 100000 hours |
| 15 | Blind rate | ≤0.0002 |
| 16 | Working Voltage | AC220V±10%,50Hz |
| 17 | Control distance | ≤100 meter with cat5 cable(MMF 500 m,SMF 20 000m ) |
| 18 | System working
Environment temperature | -55 °C~ +85°C |
| 19 | System working
environment Humidity | 10%_95%RH |
| 20 | Continuous working time | 24hours /day |
| 21 | Color temperature | 6000K±500 |
| 22 | Information source | Many kinds of signal access ,can input TV signal ,DVD
signal ,Computer signal,internet and other |
| 23 | Control graphics
technology | Intellective control technology, test-itself technology ,correct
technology. |
| 24 | Multimedia control
technology | Abundant multimedia video picture ,characters manifest function ,and
switch quickly function |
| 25 | Maintenance | Pixel by pixel |
| 26 | Configuration | Screen composed of the cabinets ,cabinets composed of the modules |
| 27 | Maintenance manner | Reservation position is 45cm |
| 28 | Switch manner | Computer control switch automatically |
| 29 | Remote management (extra charge,optional,default is cable control)) | Remote control display system and operate
|
