| Prod Model: |
HFG12864-160 |
| Markets: |
North America,South America,Eastern Europe,Mid East,Western Europe |
| DOT Matrix: |
128*64 |
| Glass Type: |
Dfstn |
| Module Size: |
63.00(W)*42.50(H)*5.00(T) mm |
| View Area: |
59.00(W)*32.00(H) mm |
| Active Area: |
55.01(W)*27.49(H) mm |
| Driving IC: |
St7565p |
| Driving Vvoltage: |
DC 3.0V |
| Color: |
Black |
| Display Mode: |
Negative, Transmissive |
| Bcklight Color: |
White |
| Usage: |
Small-sized LCM |
| Type: |
Graphic |
| Response Time: |
30ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
FSTN/CSTN |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
| Digital LCD Module Type: |
Na |
| Touch Screen Type: |
Na |
Product Description
DFSTN COG Graphic LCD 128*64 Specifications:
Module Size: 63.00(W)*42.50(H)*5.00(T) mm
View Area: 59.00(W)*32.00(H) mm
Display mode: Negative, Transmissive
Driving IC: ST7565P
IC bonding: COG
DOT matrix: 128x64
Backlight: White LED
Connector: FPC
Display type: DFSTN
View direction: 6 o'clock
Mechanical Data
NO
ITEM
SPECIFICATION
UNIT
1
Dot Marrix
128(W) x 64(H)
dot
2
Module Size
63.00(W)*42.50(H)*5.00(T)
mm
3
View Area
59.00(W)*32.00(H)
mm
4
Active Area
55.01(W)*27.49(H)
mm
5
Dot Size
0.40(W) x 0.40(H)
mm
6
Module Thickness
5.00
mm
LCD drawing and Pinouts:

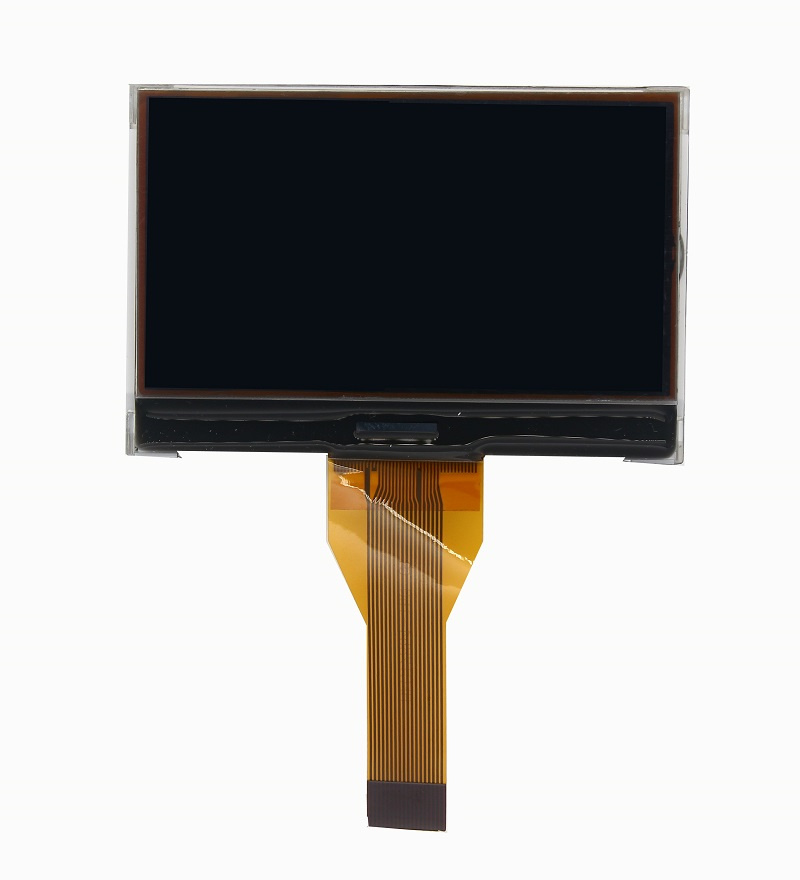

Product Photo
