| Prod Model: |
SS505 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
FCC |
Product Description

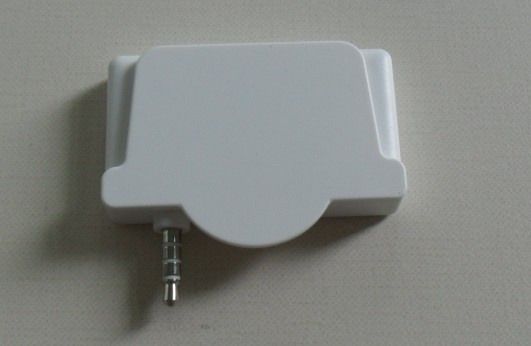

PCI3.1 ComplianceEncrypted Mobile Credit Card Reader
1. Provide SDK of IOS and Android, software demonstration in C language for customer to make application. The MCU and encrypting chip are sealed inside of the magnetic head, sure be security when swiping.
2. Difference between our encrypted card reader and the current ones in the market: Our MCU and chip are sealed inside of the magnetic head and the current ones are made outside of the magnetic head. If we connect wires from the two pins of magnetic head or connect wires to the pins of F2F decoder IC, then stick a flash to the back side of IC, card information will be recorded and stored in the flash when swiping, so that our encrypted card reader is the only one with the best security protection system.
3. The out plastic case of encrypted reader can be made as customer's request or use our current models are no problem.
4. There are 2 different types:
Type 1: Track 2 encrypted mobile credit card reader (read track 1, 2 or track 2, 3 of the card data );
Type 2: Track 3 encrypted mobile credit card reader ( read all 1, 2, 3 tracks of the card data ).
5. Features:
Manual-swipe type reader
Bi-directional reading capability
ISO 7810, ISO 7811
1, 2, 3-Track conformance
PCI 3.1 conformance
DES/3DES data encrypting capability
4KB FLASH Memory for Key Stored
Audio jack interface
Power supplied by Audio jack interface only (for IOS don't need a battery, for Android with battery inside )
High specification, Low power consumption
Small size
Dongguan Geka Electronics Technology Co, .Ltd is a company specialized in research, development, production, Sale and after-sale, which contribute to the presentation of technologically advanced and cost-effective electronic products such as:Read magnetic head, Write magnetic head, read /write magnetic head leaded by finacial and magnetic application system.
We have a number of theoretical solid and experienced technical engineers in the field of card reader.In addition to Geka's full line of products and techinical support, we also provide OEM/ODM, other value-added and flexible delivery services ranging from design to finished product assembly, packaging and testing.
We have our subsidiary company in Hongkong, all business exchange can be concluded conveniently at both mainland and Hongkong China.Our production bases:Tangxia Dongguan, Zhongguan Cun, Beijing, Ji Ning City.
With company's strict production management and quality control, after getting ISO9001, ISO14001, other products have UL, CE 3C, EMV certificate.The R&D and production for magnetic card reader (Mobile Credit Card Reader )is strictly in compliance with PCI3.0 PCI3.1 which issued in DEC, 2012, on the basis of CUP, ISO07810, ISO07811, ISO7816, PBOC2.0 and EMV2000 standard.
More than 80% of products exported to Europe, the United States, Canada, Japan, Australia, Argentina, Korea, Mexico, Singapore Russia and other countries.We have extensive experience in international trade, adhere to "Quality first, Customer first " to provide best products and support for our customers.Your satisfy is our invariable aim.
