| Prod Model: |
LS-208 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| -: |
- |
| Capacity: |
401-500L |
| Door Number: |
Single Door |
| Type: |
Chest/Deep Freezer |
| Door Type: |
Folding Door |
| Power Source: |
Electricity |
| Temperature Control: |
Smart Thermostat |
| Temperature Type: |
Double-temperature |
| Defrost Type: |
Manual Defrost |
| Function: |
Cold Storage & Freezing |
| Certification: |
ETL |
Product Description
Specifications

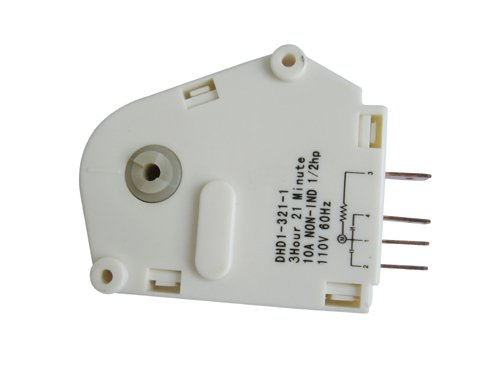

Refrigerator Defrost Timer,Refrigerator parts
Synchronous gearbox provides extremely quiet operation
Low power consumption.
Features of DHD series defrost timer:
1 Particular blocking design and optimized the structure ensure the product to work stably with long term.
2 Synchronous gearbox provides extremely quiet operation.
3 Positioning freedom , can be mounted in any plane.
4 Plastics cover, completely enclosed, without screws, requires no earth grounding.
5 Light weight : the timer weights less than 60 grams.
6 Low power input, required only 1 watt. Special 1/4 watt model available upon request.
7 Standard terminals (0.8mm by 6.35mm),acceptable in most position.
8 Interchangeablity : standard mounting configuration permits to use in all application.
9 Products have Chinese patent
SPECIFICATION
1. RATED VALUE
RATED
VOLTAGE
FREQUENCY
INPUT
CURRENT
INPUT
POWER
LOAD
1-2
1-4
AC208-240V
50/60Hz
<4mA
<1W
10A
1/2hp
AC120V
50/60Hz
<4mA
<1W
15A
1/2hp
2. AMBIENT TEMPERATURE :-10 °C- 65 °C
3. INSULATE RESISTANCE: >100M Ω
4. ELECTRICAL STRENGTH:
1500VAC 1MIN(1800VAC 1SEC)
5. ELECTRICAL LIFE: 30000CYCLES
6. NOISE: <30dB
7. CONTACT RESISTANCE: <10m Ω
8. MOTOR START VOLTAGE
<160VAC@220V
<90VAC@120V
9. MOTOR INSULATE LEVEL: A
10. AXLE TORQUE: <9.8Nmm
11. TERMINAL STRENGTH
12. PTI : >250V
TIMING SCOPE & PRECISION
MODEL
CYCLE TIME
DEFROST TIME
50Hz
60Hz
50Hz
60Hz
DHD1-420
4H ± 3MIN
3H20MIN ± 3MIN
20MIN ± 3MIN
16MIN40SEC ± 3MIN
DHD1-621
6H ± 3MIN
5H ± 3MIN
21MIN ± 3MIN
17MIN30SEC ± 3MIN
DHD1-625
6H ± 3MIN
5H ± 3MIN
25MIN ± 3MIN
20MIN50SEC ± 3MIN
DHD1-803
8H ± 3MIN
6H40MIN ± 3MIN
3MIN ± 30SEC
2MIN30SEC ± 30SEC
DHD1-807
8H ± 3MIN
6H40MIN ± 3MIN
7MIN ± 3MIN
5MIN50SEC ± 3MIN
DHD1-825
8H ± 3MIN
6H40MIN ± 3MIN
25MIN ± 3MIN
20MIN50SEC ± 3MIN
DHD1-830
8H ± 3MIN
6H40MIN ± 3MIN
30MIN ± 3MIN
25MIN ± 3MIN
DHD1-1025
10H ± 3MIN
8H20MIN ± 3MIN
25MIN ± 3MIN
20MIN50SEC ± 3MIN
DHD1-1221
12H ± 3MIN
10H ± 3MIN
21MIN ± 3MIN
17MIN30SEC ± 3MIN
DHD1-2496
24H ± 3MIN
20H ± 3MIN
96MIN ± 3MIN
80MIN ± 3MIN
Different specification and model can be produced according to customer's requirement.
Application
Refrigerator, Freezer, Showcase,ice maker
Description
Removes frost inside the freezer and on the surface of evaporator.
Certification
UL, VDE
