| Prod Model: |
QDZH30G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Displacement: |
3.0 |
| Power Source: |
DC Power |
| Application: |
Low Back Pressure Type |
| Mute: |
Mute |
Product Description

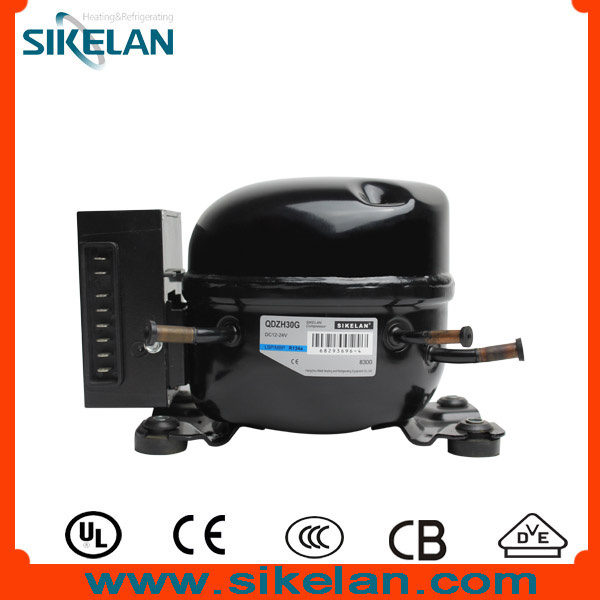

Suitable for water dispenser, small refrigerator, small freezer, wine cellar and other small cooling appliances used for car, ship and camping.
Cooling system running requirement: In case the ambient temperature over 43°C, the stable running input of DC compressor should not be over 120 watt.
The main feature: Small Volume, light weight ,Strong Bearing to Shocking, high efficiency,low noise ,good reliability.
|
Refrigerant |
Application |
Model |
Displacement |
Rotate speed |
-23.3 |
Oil charge |
Cooling type |
Certification |
Power suply |
|
Ashrae |
|
Capacity |
Efficiency |
|
COP |
EER |
|
|
|
|
cm3 |
rpm |
w |
Kcal/h |
Btu/h |
w/w |
Btu/w.h |
ml |
|
|
|
|
R134A |
LBP |
QDZH30G |
3 |
2000 |
51.6 |
44.6 |
176 |
1.05 |
3.58 |
160 |
FC |
CE |
12/24V(DC) |
|
2500 |
63.6 |
55 |
217 |
1.05 |
3.58 |
|
|
|
|
3000 |
74.4 |
64.3 |
254 |
1.06 |
3.62 |
|
|
|
|
3500 |
86.4 |
74.7 |
295 |
1.04 |
3.55 |
|
|
|
Hangzhou Maidi Heating and Refrigerating Equipment Co.Ltd is located in Hangzhou City, who has the reputation of China Heaven.We founded in 2009, and moved into new plant on Jul 2011, land area 12, 084 square meters.
The former company name is Hangzhou Sporlan Heating and Refrigerating Equipment Co., Ltd, established on 2002, engaged in manufacturing and exporting since 2004.

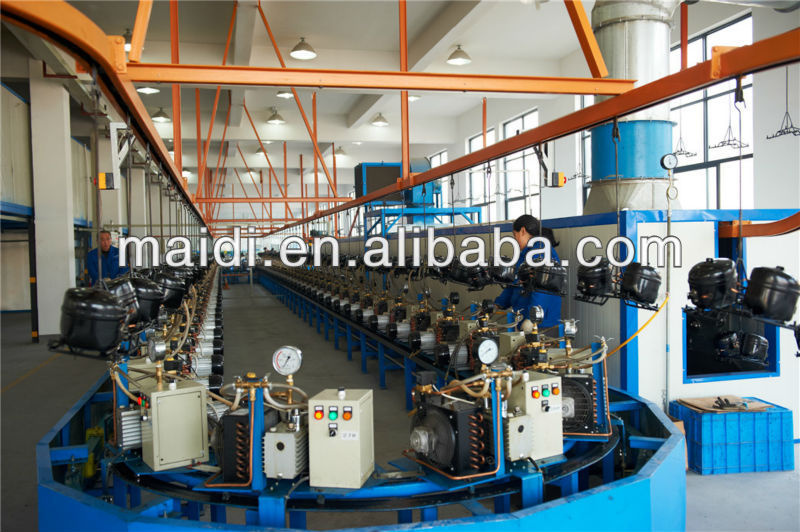

Our new plant owns 5 new production lines, with advanced technology, manufacturing 3 series products:
