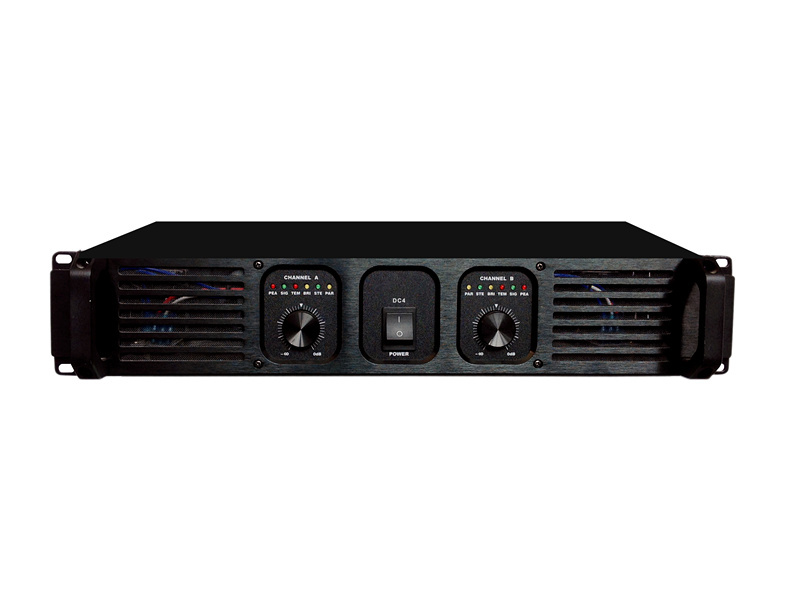

| Prod Model: |
DC4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Power: |
300W |
| Height: |
2u |
| Channel: |
2 Channel |
| Input Sensitivity: |
32db |
| Voltage Gain: |
0.775V/0dBm |
| Certificate: |
CE |
| Type: |
Professional Amplifier |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
2.1 |
| Usage: |
Concerts |
| Output Number: |
2 |
| Voltage: |
AC100V~220V |
| Conductive Mode: |
H |
Product Description
1.OEM :CALM or your brand
2.zero noice & Temperature control system
3.Real-time/online detecting of load resistance
LINEAR AMPLIFIER BASED ON LINEAR POWER SUPPLY,THE FOLLOWING INIOVATIVE TECHNOLOGIES PUT THE POWER-TO-WEIGHT RATIO AND POWER-TO-VOLUME RATIO TO A NEW, UNEXP ;ARED LIMIT:
1. Less heat loss due to accurate power allocation
2. Unique power supplying program lower the requirements of power supply
3. Select material and appropriate production technology maximizing the turnout of adapter
4. Ideal radiator structure improving heat sinking so that a smaller and lighter radiator can dissipate heat far faster and more efficiently
Specification
THD+N |
Rate power,1KHz |
<0.025% |
Smpte IMD |
Rate power,60Hz/7kHz4/1 |
<0.075% |
Frequency response |
Rate power,20Hz-20kHz |
< +/- 0.25dB |
Phase response |
Rate power,20Hz-20kHz |
< +/- 8 Degree |
Signal to noise ratio |
1KHz,0.775V input, A weight, |
>110dB |
Damping factor |
Rate power,63Hz |
>1500 |
Controlled slew rate |
1KHz Tone burst,40dB Gain |
>100V/us |
Input impedance |
Rate power,1KHz,Balanced input |
20kohm |
Lowest loaded impedance |
Stereo |
>1.6 ohm |
|
Bridge |
>3.2 ohm |
Dimensions |
|
88mm X 482mm X 400mm |
Guangzhou Calm Audio Electronic Co., Ltd Is Devote Ourselves to Researching, Manufacturing, Marketing and Serving of Professional Electro-Acoustic Products Since From 2007. Now, All Our Products Are Past The 3c, CE Certifications. We Have Been Self-Developed Patent, The Electronic and Electro-Acoustic Products Are Recognized by The Market, and Provide OEM and ODM Services to Many Domestic and Foreign Audio Brands. The Good Quality Products Are Depend on The Professional and Scientific Management. Ultimately, There Is a Professional R&D Team in Our Company, Consistent Adherence to Rigorous Design Style and Exquisite Craftsmanship, All The Products Are Through The Complete QC Procedures Just Wanna Give The First-Class Products and Services for Domestic and Foreign Customers.
Our Company'S Factory Is Located in Guangzhou. At Present, Our Products Are Not Only Popular in China'S Major Areas, But Also Europe, Asia. Australia. Calm Audio Electronic Co., Ltd Is Attaches Great Importance to Product Quality and Market Demands. We Will Continue to Deliver The Most Advanced Eletro-Acoustic Technology Information to Our Customers and Manufacture The More Welcoming Audio Products.
Calm Audio'S Brands Include Calm, Djg, AAA, 92, Queen and F• Audio. Some of Them Have Been Widely Used in Large Stadiums, Stage, Venues, Conference Rooms, Hotels and Other Large-Scale Sound Reinforcement System, All These Are Loved by The Users.
Our Company'S Purpose Is to Building a Century Enterprise. Virtue, Responsibility, Pursuit, Honest, Enterprising and Innovation Are Throughout The Company'S Operating Management.
