| Prod Model: |
DC-ONE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Receiver Mode: |
Secondary Superheterodyne |
| Wireless Connecter: |
BNC/50 Ohm |
| Sensitivity: |
12dB |
| Spurious Suppression: |
>=75dB |
| Maximum Output Level: |
+10dbv |
| Power Supply: |
AA*2 |
| Style: |
Handheld Microphone |
| Application: |
Measurement |
| Signal Transmission: |
Wireless |
| Sound Channel: |
Stereo |
| Transducer Principle: |
Electrodynamic Microphone |
| Connector(',s): |
XLR 3 Pin |
| Wireless Technology: |
UHF |
Product Description

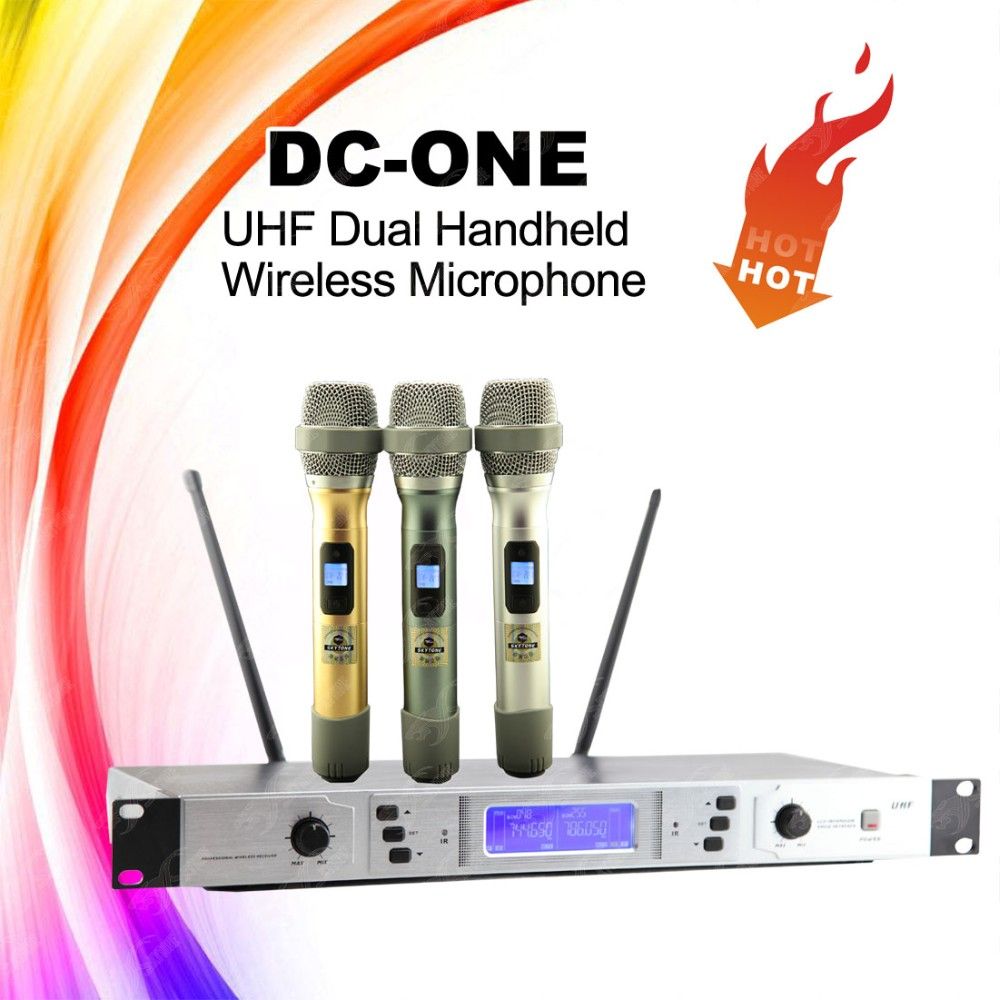

DC-ONE karaoke Double handheld UHF wireless microphonenice sound dual handheld UHF wireless mic, cordless audio microphone
![]()
Main Features:DC-One intelligent sleep system
740-790MHz Bandwidth,dual channels receipt.UHF frequency band,PLL Infrared automatic frequency fuction,which ensure ustage for 150 sets.Handheld microphones in common use,strong anti-interference.
Static stanby once reaches 7 seconds will switch to mute mode immediatelly,continuous static for 10 seconds will shut down automatically and restart when you use it, which can avoide a waste of power because of longtime nonuse and conserve battery power
Transmitted LED displays channels and battery capacity, once low-voltage battery indicator flashing at 18V, it will shut down automatically
LED which receives various channels will respectively display frenquency,radio density,mute, split pole of internal antennas and various indicators adjustment of menu
Transmitter adjustment in two levels of power, low power is less than 30m, high power is more than 60m.
Applicable to great stages and small stages,meeting rooms and KTV rooms.Specifications:| DC-ONE Wireless Microphone Specifications |
| Frequency range: | 740-790MHz |
| Dynamic range: | 100dB |
| Modulation Mode: | Wide band FM |
| Maxium Frequency Deviation: | ±45KHz |
| Signal channels | 200/300 |
| Comprehensive SNR | >105dB |
| Channel Spacing | 250KHz |
| Composite Distortion | <=0.5% |
| Frequency Stability | within ±0.005% |
| Working Temperature | -10ºC-+40ºC |
| Receiver specs: | |
| Receiver mode: | Secondary superheterodyne |
| Wireless connecter: | BNC/50 ohm |
| Sensitivity: | 12dBμv(80dBS/N) |
| Sensitivity adjustable range : | 12-32dBμv |
| Spurious suppression : | >=75dB |
| Maximum output level : | +10dBV |
| Transmitter specs: | |
| Antenna program: | Lavalier comes with 1/4 wave whip, handheld
built-in helix antenna |
| Output power: | 3mW~30mW |
| Spurious suppression: | -60dB |
| Power supply: | AA*2 |
![]()
![]()
![]()
---------------------------------------Skytone Audio------------------------Skytone Audio---------------------------Skytone Audio-------------------------Client good feedbacks of our DC-ONE microphone
![]()
Application of our DC-ONE dual handheld cordless microphone:Stage performance;
live show;
road show;
conference speech;
concert;
sales activities.![]()
