| Prod Model: |
HE |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
9000 BTU |
| Certification: |
CE |
| China Energy Efficiency Standard: |
Level 3 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
DC |
| Condition: |
New |
| Type: |
Split Type |

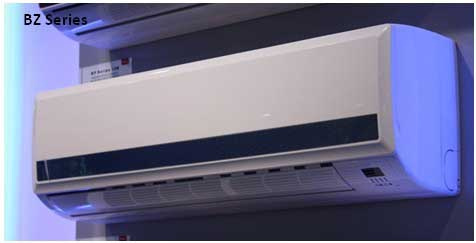

Product Description
Professional OEM Manufacturer For Air Conditioner, CE CB UL cUL CSA ETL RoHS Certifications
NINGBO AKL ELECTRIC Co., Ltd is a professional manufacture of Air Conditioner equipment.
Air Conditioner Feature&Function
2012 New Arrival Split Air Conditioner/Air Conditioning
1) Capacity: 9000-24000BTU
2) Cooling only / cooling and heating
3) COP/EER: 3.6/3.2
4) Gas: R22, R410A
5) Power: 220-110V
6) Working condition: T1, T2, T3
7) Compressor: HITACHI, TOSIHBA, Panasonic.
8)SEER 16-22
Features and specifications:
1) Multi-angle air intake
2) with LED and VDF display.
3) Sleep mode
4) 24-hour timer
5) Independent dehumidifying function
6) Removable & Washable Panel, Color Panel
7) High Coefficient of Performance & Energy Efficiency Ratio
8) Auto recovery after power resumption
| Model | KF-09GW/DN1 | KF-12GW/DN1 | KF-18GW/DN1 | KF-24GW/DN1 |
| Power supply | Ph-V-Hz | 1Ph, 220-230V, 60Hz | 1Ph, 220-230V, 60Hz | 1Ph, 220-230V, 60Hz | 1Ph, 220-230V, 60Hz |
| Cooling | Capacity | Btu/h | 9000(2250~10000) | 12000(4000~13500) | 18000(5100~20000) | 24000(12000~25000) |
| Input | W | 820(270~1200) | 1100(280~1220) | 1750(380~2300) | 2345(820~2750) |
| Rated current | A | 3.7(1.2~5.5) | 5.0(1.4~6.0) | 8.0(1.8~10.2) | 9.8(3.6~12.5) |
| EER | W/W | 3.21 | 3.21 | 3.01 | 3.01 |
| Heating | Capacity | Btu/h | ----- | ----- | ----- | ----- |
| Input | W | ----- | ----- | ----- | ----- |
| Rated current | A | ----- | ----- | ----- | ----- |
| COP | W/W | ----- | ----- | ----- | ----- |
| Moisture Removal | L/h | 1.0 | 1.2 | 1.8 | 2.6 |
| Max. input consumption | W | 2200 | 1900 | 2900 | 3200 |
| Max. current | A | 10.0 | 8.5 | 13.0 | 14.5 |
| Starting current | A | ----- | ----- | ----- | ---- |
| Compressor | Model | | DA89X1C-20EZ | DA89X1C-20EZ | DA130S1C-20FZ | DA150S1C-20FZ |
| Type | | ROTARY | ROTARY | Rotary | ROTARY |
| Brand | | TOSHIBA | TOSHIBA | Toshiba | TOSHIBA |
| Indoor fan motor | Model | | RPG20B | RPG20B | RPG28B | YDK36-4CB(A) |
| Brand | | Welling | Welling | Welling | Welling |
| Input | W | 43 | 43 | 55 | 82/79/58 |
| Capacitor | uF | 1.5 | 1.5 | 1.5 | 3 |
| Speed(Hi/Mi/Lo) | r/min | 1200/1000/880 | 1200/940/800 | 1180/1050/900 | 1285/1245/1040 |
| Indoor coil | a.Number of rows | | 2 | 2 | 2 | 2 |
| b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 | 21x13.37 | 21x13.37 | 21x13.37 |
| c.Fin spacing | mm | 1.3 | 1.3 | 1.3 | 1.3 |
| d.Fin type (code) | | Hydrophilic aluminium | Hydrophilic aluminium | Hydrophilic aluminium | Hydrophilic aluminium |
| e.Tube outside dia.and type | mm | φ7, innergroove tube | φ7, innergroove tube | φ7,innergroove tube | φ7, innergroove tube |
| f.Coil length x height x width | mm | 538x252x26.74 | 637x294x26.74 | 755X336X26.74 | 810x357x26.74 |
| g.Number of circuits | | 2 | 2 | 4 | 4 |
| Indoor air flow (Hi/Mi/Lo) | m3/h | 480/400/350 | 630/500/450 | 730/650/560 | 1100/1050/900 |
| Indoor noise level (Hi/Mi/Lo) | dB(A) | 37/34/31 | 39/36/33 | 43/40/37 | 48/45/42 |
| Indoor unit | Dimension(W*D*H) | mm | 710x195x250 | 790x195x265 | 920x225x292 | 1080x228x330 |
| Packing (W*D*H) | mm | 800x270x340 | 875x285x375 | 1015x295x368 | 1165x445x320 |
| Net/Gross weight | Kg | 7.5/9 | 9/11 | 11.5/14.5 | 15.5/20.5 |
| Outdoor fan motor | Model | | YDK24-6KB | YDK24-6GB | YDK49-6B | YDK47-6KB |
| Brand | | Welling | Welling | Welling | Welling |
| Input | W | 75/56 | 72/53 | 119/96 | 115/89 |
| Capacitor | uF | 2.5 | 2.5 | 2.5 | 2.5 |
| Speed | r/min | 815/640 | 830/570 | 860/680 | 860/720 |
| Outdoor coil | a.Number of rows | | 1 | 1.5 | 2 | 2 |
| b.Tube pitch(a)x row pitch(b) | mm | 19.5x11.6 | 19.5x11.6 | 19.5x11.6 | 19.5x11.6 |
| c.Fin spacing | mm | 1.2 | 1.2 | 1.2 | 1.2 |
| d.Fin type (code) | | Unhydrophilic aluminium | Unhydrophilic aluminium | Unhydrophilic aluminium | Unhydrophilic aluminium |
| e.Tube outside dia.and type | mm | φ5, innergroove tube | φ5, innergroove tube | φ5,Innergroove tube | φ5, innergroove tube |
| f.Coil length x height x width | mm | 697x507x11.6 | 744x507x11.6+370x507x11.6 | 652x546x23.2 | 782x663x23.2 |
| g.Number of circuits | | 2 | 4 | 4 | 4 |
| Outdoor air flow | m3/h | 1650 | 1800 | 2200 | 2700 |
| Outdoor noise level | dB(A) | 55 | 55 | 58 | 56 |
| Outdoor unit | Dimension(W*D*H) | mm | 700x235x535 | 780x250x540 | 760x285x590 | 845x335x695 |
| Packing (W*D*H) | mm | 815x325x580 | 910x335x575 | 887x355x645 | 965x395x755 |
| Net/Gross weight | Kg | 25/27 | 29/32.5 | 37/40.5 | 44/48 |
| Refrigerant type | g | R410A/570g | R410A/690g | R410A/980g | R410A/1180g |
| Design pressure | MPa | 4.2/1.5 | 4.2/1.5 | 4.2/1.5 | 4.2/1.5 |
| Refrigerant piping | Liquid side/ Gas side | mm(inch) | φ6.35/φ9.53(1/4"/3/8") | φ6.35/φ12.7(1/4"/1/2") | φ6.35/φ12.7(1/4"/1/2") | φ9.53/φ16.0(3/8"/5/8") |
| Max. refrigerant pipe length | m | 20 | 20 | 25 | 25 |
| Max. difference in level | m | 8 | 8 | 10 | 10 |
| Connection wiring | | 1.5(Optional) | 1.5(Optional) | 2.5(Optional) | ---- |
| Plug type | | 16#/SP008 | 16#/SP008 | 2.5x3/---- | ---- |
| Thermostat type | | Remote control | Remote control | Remote control | Remote control |
| Operation temp | C | 17-30 | 17-30 | 17-30 | 17-30 |
| Ambient temp (cooling/heating) | C | 18-50/---- | 18-50/---- | 18-50/---- | 18-50/---- |
| Application area | m2 | 13-22 | 18-29 | 26-44 | 35-58 |
NINGBO AKL-Histar Electric Co., Ltd was founded in 2004. Main products consist of various electric appliance, and more than 70 kinds in all. with complete specifications, novel models, products are extensively applied to home and commercial department. Our products export to the whole world. Europe, South & North America, Southeast Asia, Africa and Middle East. Our factory obtains reliance and praise from customers and societies with excellent quality and competitive price.
Our company has passed CE, RoHS. COC, SAA. SONCAP. UL. SASO Certificate. For purpose to control products' quality well, we develop a whole set of standard testing equipment by ourselves.
We always insist on the management aim of "quality first, customers supreme", strive for top grade products and offer first rate service. We sincerely welcome the old and new customers to visit our factory, negotiate business, cooperate extensively and achieve common prosperity.
