| Prod Model: |
JD8020DC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Low Consumption Cooling Fan: |
High Speed Cooling Fan |
| Power Supply: |
Electric |
| Application: |
Industrial |
| Remote Control: |
Without Remote Control |
| Certification: |
ISO |
| Speed: |
1 Speed |
| Power: |
<100W |
| Material: |
Plastic |
| Type: |
Air Cooling Fan |

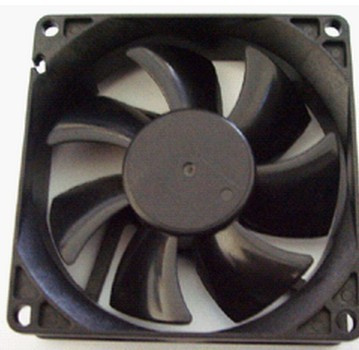

Product Description
Size: 80X80X20mm
Frame: Plastic
Impeller: Plastic P. B. T.
Voltage: 12V, 24V
Current: 0.13-0.24A
Power: 1.92-3.60W
Speed: 2440-3010RPM
Air flow: 22.1-27.3CFM
Pressure: 2.0-3.5(mmH2O)
Noise: 25.4-31.4dBA
Bear type: Sleeve, ball
Weight: 61G
Motor: Brushless DC, auto restart Impedance & polarity protected
Operation temperature: -20° C~80° C
Insulation Resistance: 10MΩ At 500VDC between lead and frame
Dielectric Strength: 1 min at 500VAC/50-60Hz, current min 5mA
Operation Humidity: 20%~85%
Working voltage: Rated voltage± 15%
Life at 25oC: Ball bearing 50, 000hr and sleeve bearing 30, 000hr
