| Prod Model: |
BCD-30L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Carton Size(mm) (L*W*H): |
487*673*472 |
| N.W. /G.W(Kg): |
18/21 |
| Loading Quantity: |
152PCS/20gp, 312PCS/40gp,390PCS/40hq |
| Power Consumption: |
45W |
| Warranty Time: |
3 Years |
| Color: |
Blue Pink Gray White |
| Certification: |
CB SGS |
| Capacity: |
30L |
| Voltage: |
DC 12/24V AC 110-240V |
| Shape: |
Mini Portable Box Type |
| Power Source: |
Electricity & Solar |
| Power Supply Type: |
DC AC Solor |
| Brand: |
Junyue |
Product Description
Specifications:Camping or car fridge/freezer
Environment friendly technology
Quick freezing and high-efficiency
Energy saving design
New design:DC 12V 24V Mini Portable car Refrigerators
30L/45L/60L camping/car fridge/freezer
Advantages:*Anti-vibration design for harsh condition
*30 Degree tilt can still work normally
*Suitable for solar power supply
*CFC-free refrigerant R134a

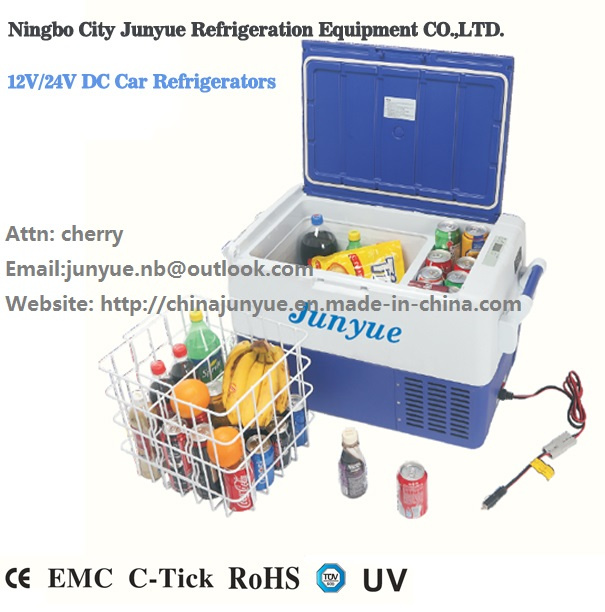

DC 12V 24V Mini Portable car Refrigerator
1. High quality DC compressor
2. Germany design
3. DC12V/24V automatic recognition , AC/DC operated
4. Can set temperature from an ice cold 8ºC to ≥ -18ºC.
5. Perfect for tropical climate, can even refrigerate in blistering hot temp up to 50ºC.
6. Digital temperature pre-setting and LCD display with failure prediction show.
7. Automatic power cut off at 10V to protect the battery.
8. Anti-vibration design for harsh condition.
9. Use for camping & outdoor, car, 4WD, motor homes, RV, caravan, truck, automotive, boat, marine, home.
DC 12V 24V Mini Portable car Refrigerator | Model | BCD-30 |
| Gross capacity | 30 liters |
| Demension | 397*560*400mm |
| Carton size | 487*673*472mm |
| Voltage | 12/24V DC current ≤3.8A
AC 110-240V |
| Average power consumption | ≤45W |
| Temperature range | 8ºC to ≥ -18ºC (variable via electronic thermostat) |
| Refrigerating Fluid | R134a |
| Refrigeration capacity | Arrived -16 degree in 2 hours.
(under the standard running condition and rated load) |
| N.W./G.W. Kg | 18/21 |
| Certifcate | CE ROHS BCB SGS |
| Other features | Digital temp.control panel
The compressor could adjust the torque and rotate speed automatically |

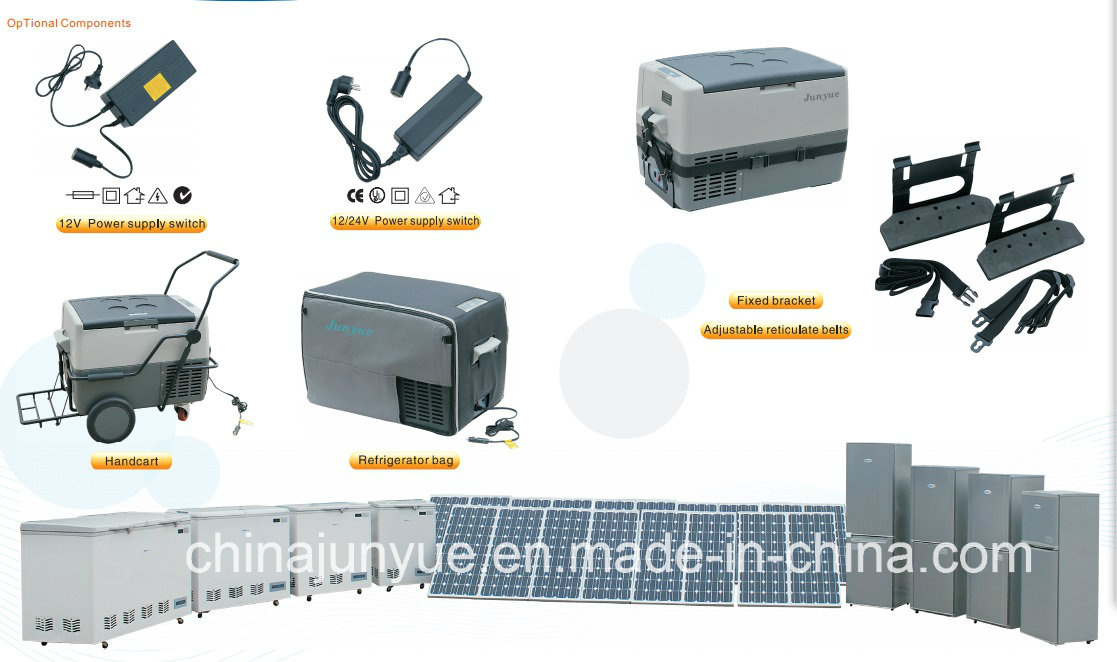

Some photos for the accessories.1.Cable with cigarette plug (for each freezer):free of charge.2.Adaptors (optional):for ac power using.3.Travel bag(optional):there are two layers on the bag,inners is pvc with coated aluminium,outside is pe.Product detail
Why you choose us?1.Thick insulation
2.Efficient compressor
3.Lock & key for safty
4.Low noise design
5.10 years exporting experience
6.Partner of FAQ
7.3 years warranty time for compressor and 1 year for other accessories.
8.We have strong engineering team that can give the best solution for your projects.
9.CE ROHS BCB SGS
FAQ1.WHAT DO MINI FRIDGES NEED TO RUN?
You fridge uses electricity; 12V or 24V adoptor, or battery or a set of solar system and the laws of thermodynamics to move heat from the inside of your fridge where the food is, to the outside air. We provide 4 types to choose whatever you like.
2.SO HOW DO MINI FRIDGES KEEP THINGS COOL?
In a refrigerator, you use a refrigerant to absorb the heat from the food, and then you pump it using a compressor away from the food and replace it with fresh refrigerant to keep the contents cold.
3.WHAT IS A REFRIGERANT?
A refrigerant is usually a gas or a liquid that requires a lot heat energy to freeze, condense or evaporate; that's what makes it useful. Car air conditioners and portable electric fridges usually use R134A which is much less damaging to the atmosphere than previous refrigerants such as R12 {Freon}.
4.WHY DO MINI FRIDGES KEEP RUNNING ONCE EVERYTHING IS COLD?
It's about insulation. Because the contents are colder than the surroundings, heat will flow from the surroundings and through the walls into that cold space. Insulation slows down that heat transfer, but it can't stop it. And every time you open the lid, add some contents, heat gets in too. Better fridges have better quality insulation and seals.
5.CAN MINI FRIDGES BE OPERATED FROM 12V DC POWER SOCKET OF A CAR?
Yes, but almost all cars will only supply 12V while the accessories are switched on or the ignition is on and/or the car is running. So if you stop and turn off the car the fridge will probability stop working too. This will help to prevent you from flattening your car battery, of course. If your car battery is not in good condition the low voltage error protection may switch off the fridge just when you are stopped, especially if it is at night and the car headlights are running too.
6.WHY DO PORTABLE FRIDGES TAKE 2 MINUTES TO START?
When the fridge turns off there is still high pressure refrigerant in the condenser. If the compressor tried to start straight away the load would be too high. The startup delay allows the pressures in the system to equalise so the compressor uses less power to start again. It also protects the system when it is first turned on in case the unit has not been sitting level.
7.CAN SOLAR PANELS BE USED WITH MINI FRIDGES?
The car fridge will not work properly if directly connected to solar panels, as the voltage output fluctuates too much for the controller built in the fridge. You can, however, connect solar panels through a charger/regulator to a 12V battery running the fridge. The requirements for heavy duty wiring between the battery and the fridge are the same as recommended for battery only operation.
8. WARRANTY SERVICE?
We can provide spare parts(compressors,fans,bulbs,controllers,etc) to support you within warranty year for free, fridge box is under 1 year warrenty, compressor is under 2-3 year warranty.
