| Prod Model: |
BCD-30L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Carton Size(mm) (L*W*H): |
487*673*472 |
| N.W. /G.W(Kg): |
18/21 |
| Loading Quantity: |
152PCS/20gp, 312PCS/40gp,390PCS/40hq |
| Power Consumption: |
45W |
| Color: |
Blue Pink Gray White |
| Warranty Time: |
3 Years |
| Certification: |
CB SGS |
| Capacity: |
30L |
| Voltage: |
DC 12/24V AC 110-240V |
| Shape: |
Mini Portable Box Type |
| Power Source: |
Electricity & Solar |
| Power Supply Type: |
DC AC Solor |
| Brand: |
Junyue |
Product Description
Specifications:Camping or car fridge/freezer
Environment friendly technology
Quick freezing and high-efficiency
Energy saving design
New design:DC 12v 24v mini portable camping car refrigerator
30L/45L/60L camping/car fridge/freezer
Advantages:*Anti-vibration design for harsh condition
*30 Degree tilt can still work normally
*Suitable for solar power supply
*CFC-free refrigerant R134a
DC 12v 24v mini portable camping car refrigerator1. High quality DC compressor
2. Germany design
3. DC12V/24V automatic recognition , AC/DC operated
4. Can set temperature from an ice cold 8ºC to ≥ -18ºC.
5. Perfect for tropical climate, can even refrigerate in blistering hot temp up to 50ºC.
6. Digital temperature pre-setting and LCD display with failure prediction show.
7. Automatic power cut off at 10V to protect the battery.
8. Anti-vibration design for harsh condition.
9. Use for camping & outdoor, car, 4WD, motor homes, RV, caravan, truck, automotive, boat, marine, home.
DC 12V 24V mini portable camping car refrigerator| Model | BCD-30 |
| Gross capacity | 30 liters |
| Demension | 397*560*400mm |
| Carton size | 487*673*472mm |
| Voltage | 12/24V DC current ≤3.8A
AC 110-240V |
| Average power consumption | ≤45W |
| Temperature range | 8ºC to ≥ -18ºC (variable via electronic thermostat) |
| Refrigerating Fluid | R134a |
| Refrigeration capacity | Arrived -16 degree in 2 hours.
(under the standard running condition and rated load) |
| N.W./G.W. Kg | 18/21 |
| Certifcate | CE ROHS BCB SGS |
| Other features | Digital temp.control panel
The compressor could adjust the torque and rotate speed automatically |

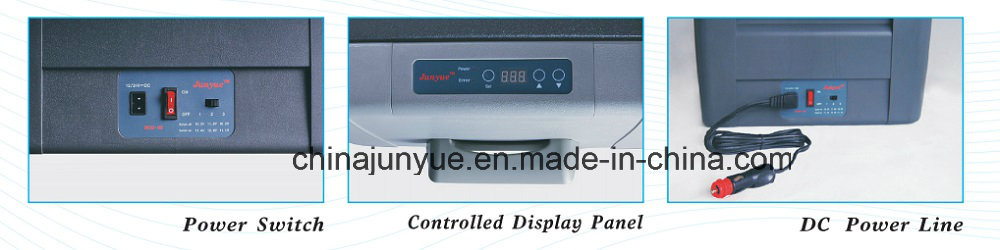

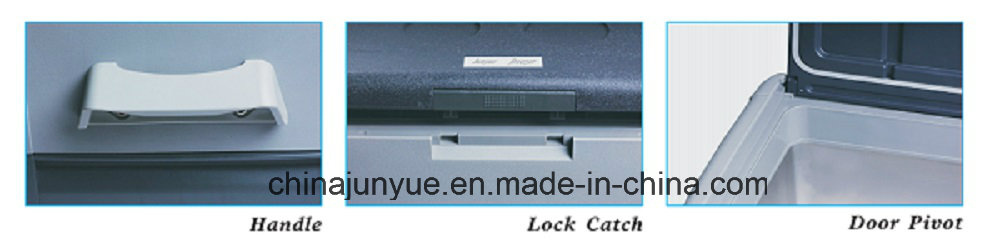

Some photos for the accessories.
Product detail
Refrigerator FAQ:1. How does a refrigerator work?
A refrigerator essentially works because of the properties of compressed gas. The compressor compresses the refrigerant gas which raises the pressure of the chemical refrigerant. It also raises the temperature. The heat exchanging coil that sits on the outside the refrigerator the allows the refrigerant to dissipate this excess heat caused by the pressurization which is why you feel heat coming from from the vent.
As the refrigerant cools, it condenses into a liquid. The liquid then flows into an expansion valve which allows it to move from high pressure to low pressure zone. This process forces it to expand and evaporate and in the same way that sweat keeps us cool in the summers, as the refrigerant evaporates, it absorbs heat which makes it cold.
There are inside the refrigerator which allow the refrigerant to absorb heat. This absorption process makes the inside of the refrigerator very cold. This cycle will repeat tima and time again until the desired temperature (set by the user) is reached.
2.How do I get rid of an odor in my refrigerator?
You might find that there are times where no matter how many boxes of baking soda you add to your refrigerator, there's nothing you can do to remove an unpleasant odor. The best way answer this refrigerator FAQ for you to follow this step by step process:
Start by removing all items from the refrigerator. You may want to be sure to remove the items from the freezer as well as something in there might also be a culprit.
Throw away any spoiled foods. This might seem like a given, but take a close look at the food in the fridge and be sure that it hasn't gone bad. This applies to more than just a few bags of fruits and veggies. Open the jars, bottles, leftovers and all drawers. You might be surprised what you find.
Clean the shelving. Many refrigerators have spill guard shelves which allow you to take them out and wash them in the sink. Also remove any other parts that are meant to be removed. Hand wash these items with hot soapy water. Do not place them in the dishwasher as many of these parts are not meant to be exposed to great amounts of heat and could melt or warp.
Wash the door gasket with hot soapy water. Use a mild detergent (dish soap) and be sure you rinse the area well once you're done because any leftover soap residue could keep the door from closing properly.
If you've tried everything listed above and still find that the odors are still present, then unfortunatley, it may have penetrated its way into the insulation. Only a skilled professional can replace the insulation, so you may need to contact a repairman to get an estimate. (Though hopefully the answer to this refrigerator FAQ will help prevent your having to call in for help.)
Warranty3 years warranty for compressor
PACKING & SHIPPING:1.By EMS,DHL,FEDEX,TNT,UPS or other expresses (door to dor)
2.By air
3.By sea
Ningbo Junyue Refrigeration Equipment Co., Ltd.
---Professional manufacturer of portable fridge, specialized in DC refrigerator
mini fridge, chest freezer, upright freezer
---Advanced technology
manual operation, LCD/LED display, DC 12/24V DC power supply
solar photovoltaic systems power supply, automatic voltage identification and switching
refrigeration capacity of 35 ºC C to - 20 ºC (95 ºF to - 4 ºF)
---Meet different demands
memory setting, multiple protection, automatic detection & prompt, frequent conversion control environmentally- friendly efficient energy-saving refrigeration
---Various suit occations
home, supermarket, vehicle, ship, outdoor activities like family camping and recreation
