Prod Model: |
1231 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model Number: |
1231 |
Type: |
Dual Chanel 31-Band Equalizer |
Input Connectors: |
1/4" Trs, Female XLR (Pin 2 Hot), and Barrier Term |
Input Type: |
Electronically |
Input Impedance: |
Balanced 40 Kohm, Unbalanced 20 Kohm |
Max Input: |
>+21dbu Balanced or Unbalanced |
Cmrr: |
>40db, Typically >55db at 1kHz |
Output Type: |
Impedance-Balanced/Unbalanced, RF Filtered |
Output Impedance: |
Balanced 200 Ohm, Unbalanced 100 Ohm |
Bandwidth: |
20Hz to 20kHz, +0.5/-1db |
Noise: |
<95dB |
Hi-Fi: |
Hi-Fi |
Operation Mode: |
Button Control |
Application: |
Professional Performance |
Certification: |
SGS |
Product Description

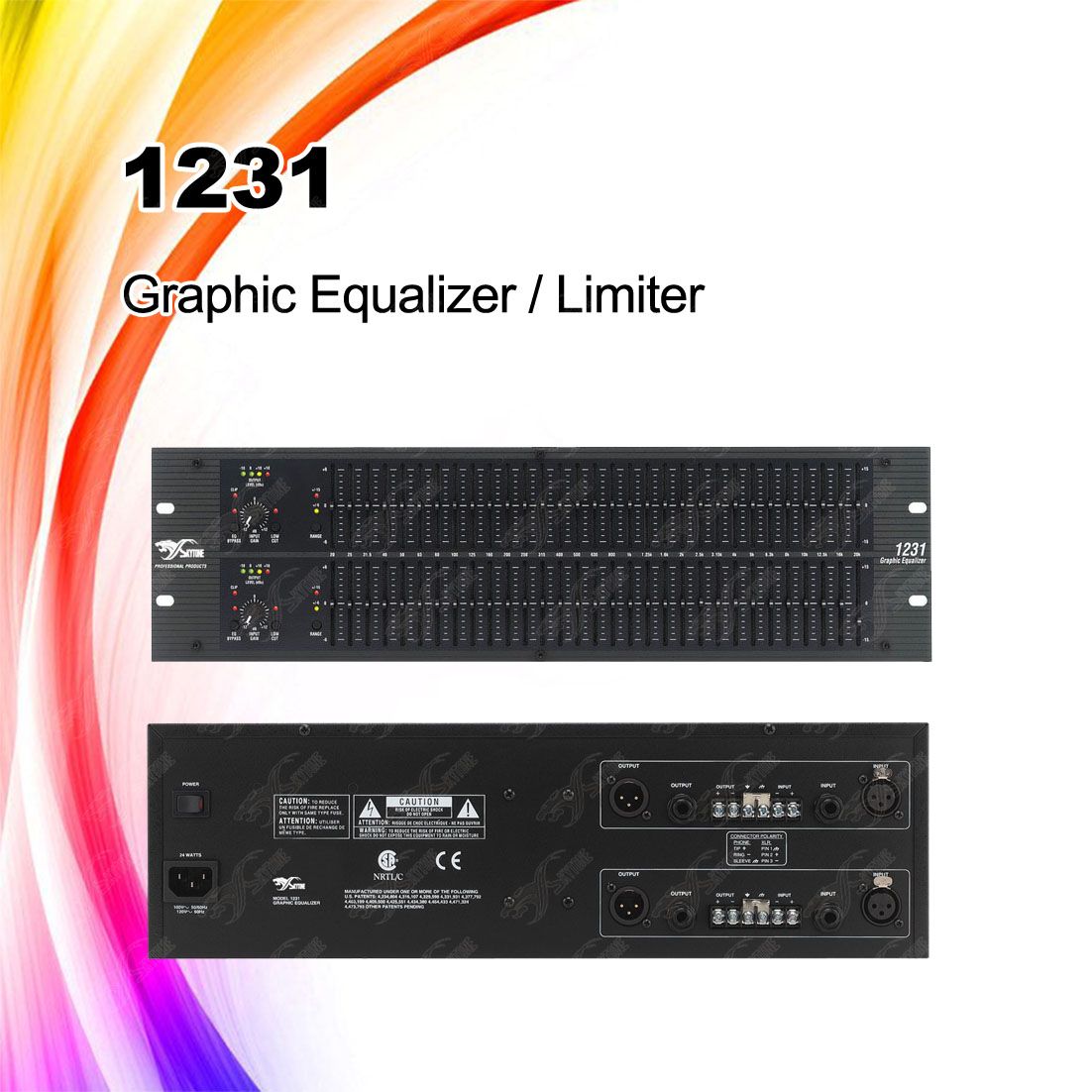

DBX1231 Professional 2 Channel Stereo Graphic Equalizer
Dbx 1231 Style Dual Channel 31-Band Equalizer
DBX style 1231 Equalizer(EQ-1231)
Dbx style1231 Dual Channel 31-Band Equalizer
Audio equalizer
Music equalizer
Sound equalizer
The dbx style 12 Series were designed to meet the needs of the most demanding sound reinforcement environments, while offering the simplicity of straightforward controls. The 1231 provides standard features like dual-channels, 31 1/3 octave bands, ISO frequency centers, +/- 12 dB input gain range, and switchable 40Hz/18 dB per octave low-cut filters, but also includes other insightful features. These include 45 mm faders; Selectable +/-6dB or +/-15dB boost/cut range for precise gain adjustments; XLR, barrier strip, and 1/4'' TRS connectors for installation ease; Balanced inputs and outputs for quiet operation; And chassis/signal ground lift capabilities for quick hum isolation. The visionary design of the dbx 12 Series makes your job easier.
Features;
--Switchable boost/cut ranges of ± 6 or ± 15 dB
--Electronically balanced/unbalanced inputs
--Servo balanced/unbalanced outputs
--RF filtered inputs and outputs
--XLR, Barrier Strip, and 1/4" TRS connectors
-- -12dB/+12dB input gain range
--18dB/octave 40Hz Bessel low-cut filter
--Chassis/signal ground lift capability
--Internal power supply transformer
--Power-off hardwire relay bypass with 2-second power-up delay
1231 Specifications |
Input Connectors | 1/4" TRS, female XLR (pin 2 hot), and barrier terminal strip |
Input Type | Electronically balanced/unbalanced, RF filtered |
Input Impedance | Balanced 40 kOhm, unbalanced 20 kOhm |
Max Input | >+21dBu balanced or unbalanced |
CMRR | >40dB, typically >55dB at 1kHz |
Output Connectors | 1/4" TRS, male XLR (pin 2 hot), and barrier terminal strip |
Output Type | Impedance-balanced/unbalanced, RF filtered |
Output Impedance | Balanced 200 ohm, unbalanced 100 ohm |
Max Output | >+21dBu balanced/unbalanced into 2 kOhm or greater; >+18dBm balanced/unbalanced (into 600 ohm) |
Bandwidth | 20Hz to 20kHz, +0.5/-1dB |
Frequency Response | <10Hz to >50kHz, +0.5/-3dB; +/-15dB range; +/-6dB range |
Dynamic Range | 109dB; 115dB |
Signal to Noise Ratio | 90dB, 97dB |
THD+Noise | <0.005% |
Interchannel Crosstalk | <-80db, 20Hz to 20kHz |
Bypass Switch | Bypasses the graphic equalizer section in the signal path |
Low cut Switch | (recessed) Activates the 40Hz 18dB/octave Bessel high-pass filter |
Range Switch | (recessed) Selects either +/- 6dB or +/- 15dB slider boost/cut range |
I/O Meter | 4-LED bar graph (Green, Green, Yellow, Red) at -10, 0, +10, and +18dBu |
Indicators | EQ Bypass (Red); Clip (Red); Low Cut (Red); +/-6dB (Yellow); +/-15dB (Red) |
Operating Voltage | 100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz |
Power Consumption | 24W |
Power Connector | IEC receptacle |
Dimensions | 5.25" H X 19" W X 7.9" D (13.4cm x 48.3cm x 20.1cm) |
Unit Weight | 10.6 lbs. |
Shipping Weight | 11.6 lbs. |
