| Prod Model: |
Driverack 260 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Driverack 260 |
| Export Markets: |
Global |
| Number Of Inputs: |
(2) Line Inputs.(1) Rta Mic Input |
| Type: |
Electronically Balanced/RF Filtered |
| Cmrr: |
> 45db |
| Number Of Outputs: |
(6) Line Outputs |
| Maximum Input Level: |
>+30dbu |
| Max Output Level: |
+22dbu |
| Dimensions: |
44mm(H)×146mm(D)×482mm(W) |
| Weight: |
2.5 Kg |
| Operation Mode: |
Button Control |
| Application: |
Commercial |
| Certification: |
RoHS |
| Monitor: |
LED Screen |
Product Description
Products Description

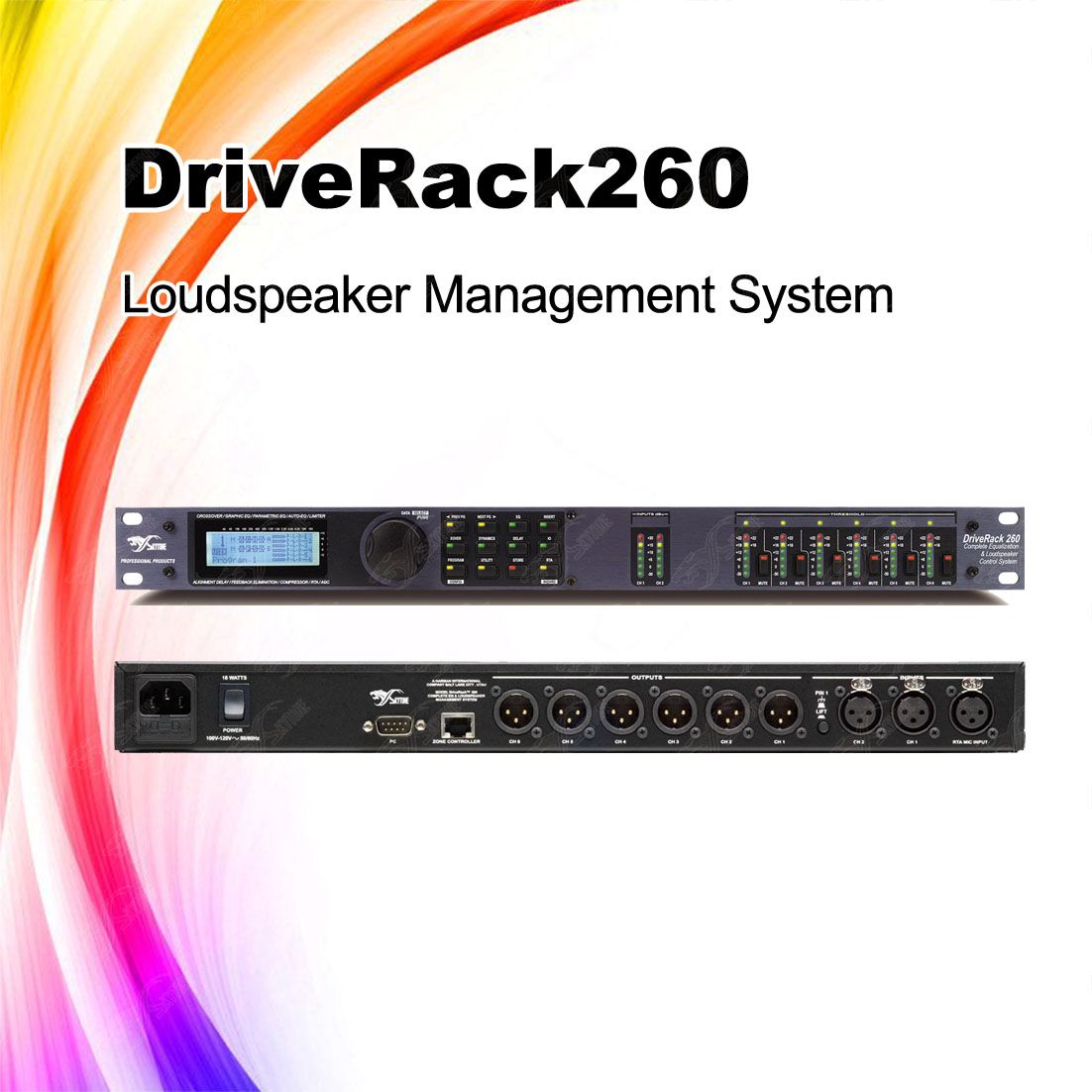

DBX Driverack 260 audio system digital signal processor
Dbx Driverack260 Style Processor
Audio processor
Sound processor
28-Band Graphic Equalizer
The 260 provides full bandpass and crossover configurations as well as independent output processing and a full time RTA for live sound applications. Contractors will appreciate its control inputs for wall-panel logic control and the patent-pending Advanced Feedback Suppression
Featues:
--Feedback Elimination
--2.7 Seconds of Alignment and Zone Delay
--RS-232 PC GUI control
--Classic dbx Compression and Limiting
--Graphic and Parametric EQ
--Auto-EQ Function
--Full Bandpass, Crossover, and Routing Configurations
--Auto Gain Control
--Pink Noise Generator and fulltime RTA
--Setup Wizard with JBL speaker and Crown Power Amplifier Tunings
--Security Lockout
--Wall Panel Control Input
What we assure:
1. Quality is first
2. Service is best
3. Delivery on time
Driverack 260 Technical Specification |
|
| Number of Inputs: | (2) Line inputs.(1) RTA Mic input |
| Type: | Electronically balanced/RF filtered |
| Maximum Input Level: | >+30dBu |
| CMRR: | > 45dB |
| Number of Outputs: | (6) Line Outputs |
| Type: | Electronically balanced, RF filtered |
| Max Output Level: | +22dBu |
| Dynamic Range: | (line) >113 dB, A-weighted, >110 dB unweighted |
| THD+N: | 0.003% typical at +4dBu, 1kHz, 0dB gain |
| Frequency response: | 20Hz - 20kHz, +/- 0.5dB |
| Interchannel Crosstalk: | >110dB, 120dB typical, (input-to-output: >100dB) |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Power Requirements: | 25 W |
| Weight: | 2.5 kg |
| Dimensions: | 44mm(H)×146mm(D)×482mm(W) |
Filters |
| Type | Constant Q/Wein Bridge |
| Number | 2x31 |
| Bandwidth | 1/3 Octave |
| Tolerance | ±3% |
| Range | ±15dB |
| Subsonic Filter | 12dB/Octave @ 14-280Hz |
| Power Requirements |
| Nominal Voltage | 100-240 VAC (50-60 Hz) |
| Minimal Voltage | 85 VAC |
| Power | 30W |
| Physical |
| Shipping Weight | 15 lbs |
| Dimensions | 19"Lx5.25"Hx8"D (483 x 133 x 203mm) |
