Prod Model: |
K-832 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Kara Ok Sound Stwo Microphones |
Sensitivity: |
12dBuV (80dB S / N) |
Frequency Stability: |
± 0.005% |
Comprehensive Snr: |
> 105dB |
Spurious Rejection: |
-60dB |
Usage: |
KTV System |
Tube Type: |
Tube Amplifier |
Function: |
Pre-Amplifier, Amplifier Combined, Post Amplifier |
Application: |
Recording |
Signal Transmission: |
Wireless |
Directivity: |
Bi-direction |
Sound Channel: |
Stereo |
Transducer Principle: |
Electrodynamic Microphone |
Connector(',s): |
XLR Mini |
Style: |
Wireless |

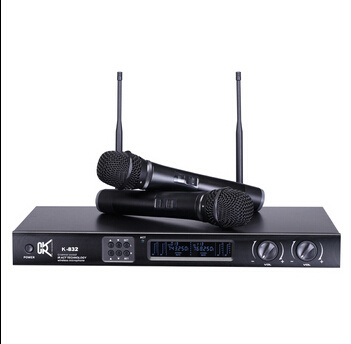

Product Description
DESCRIPTION and APPLICATION
Kara OK sound specifically for the two microphones, clear voice, singing relaxed, fit with entertainment speakers.
Receiver Specifications
Receiver mode: Double-conversion superheterodyne
IF: 110MHz, 10.7MHz
Antenna Access: BNC/50Ω
Sensitivity: 12dBuV (80dB S / N)
Sensitivity adjustment range: 12-32dBuV
Spurious Rejection: ≥ 75dB
Maximum output level: +10 dBV
Technical Specifications:
System operating frequency: 697-740, 740-800, 800-850MHz
Modulation: Wideband FM
Number of channels: 200
Channel spacing: 250KHz
Frequency stability: ± 0.005%
Dynamic range: 100dB
Maximum deviation: ± 45KHz
Audio Frequency Response: 80Hz-18KHz (± 3dB)
Comprehensive SNR: > 105dB
THD: ≤ 0.5%
Working distance: 100m (without interference)
Working temperature: -10 ° C - +50 ° C
Transmitter indicator
Antenna: Built-in helical antenna handheld microphone Peigua hair
Transmitter using a 1/4 wave whip antenna
Output power: High power 30mW, low power 3mW
Spurious Rejection: -60dB
Power supply: Two 1.5V alkaline batteries on the 5th
Battery life: Approximately the normal power transmission 10 hours,
About 15 hours at low power transmitter
Guangzhou CVR PRO-Audio Factory is a manufacturer specialized in producing professional audio equipment with an own brand "CVR "since 2005. Our 5, 000 square meters plant has R&D, sales and demonstration departments. Fully equipped demonstration facilities are available with knowledgeable staffs. CVR PRO AUDIO can easily provide you a wide range of professional sound gear like: PA speaker, indoor and outdoor line array speaker, subwoofer, floor monitor, Power amplifier and speaker management system. From the smallest conference room to the largest stadium.
CVR is the brand we set for global market, carrying great responsibility to satisfy our customers in every possible aspect as promise. The heart and soul of CVR has to be our attempt to strengthen our quality against the best in the world.
Our goal is to provide the best equipment with the best services. We have not deviated from this position since we began and will do it consistently.
