| Prod Model: |
CV-153C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Guangdong, China (Mainland) |
| Power: |
810W |
| Finish: |
Black Paint |
| Material: |
Plywood |
| Warranty: |
Two Years Free Warranty |
| Type: |
Two-Way, Coxial Monitor |
| Frequency Response: |
40Hz -20kHz ± 3db |
| Export Markets: |
Global |
| Woofer: |
15 Inch Woofer |
| Noise: |
<95dB |
| Application: |
Commercial |
| Certification: |
RoHS |
| THD: |
<0.005% |
Product Description
DESCRIPTION and APPLICATION

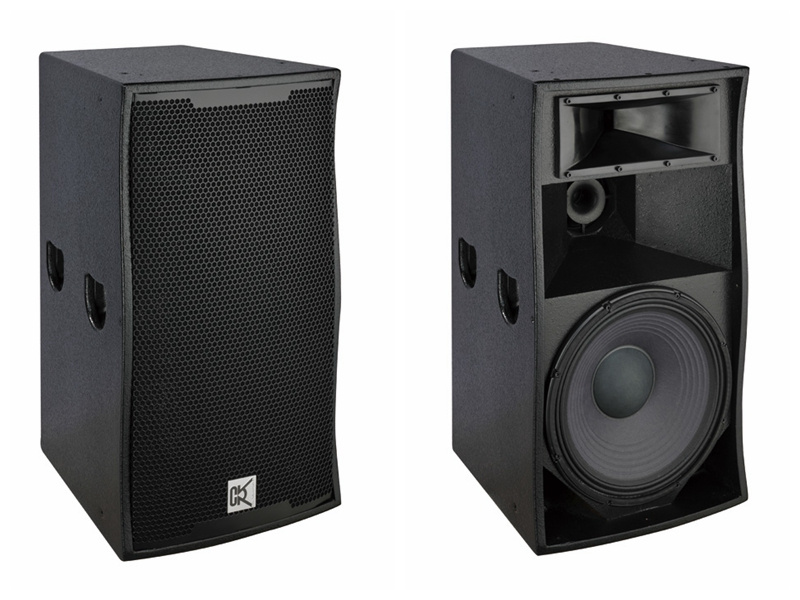

The ultra-compact CV-153C/CV-153P is a unique, innovative three-way, full range system. CV-153C/CV-153P is equipped with two 15" wave horn loading woofer, one 6.5"wave horn loading neodymium driver and one 2"titanium compression driver optimally splayed for smooth, powerful, mid-long throw wide coverage. Extremely versatile CV-153C/CV-153P blends pleasing aesthetics, uncompromising technical excellence with ease of installation to provide a high quality loudspeaker system to suit installed sound requirements of varied sizes venues such as bars, night clubs, conference centers, stadiums, arenas, etc. The CV-153P features a highly efficient power amp module.
Model | CV-153C & CV-153P(Active) |
| Type | Three-way full range system |
| Frequency Response | 40Hz-20kHz±3dB |
| Power handling | 650W(RMS)1300W(PEAK) |
| Power amp | 1000W/8ohm (CV-153P) |
| Amplifier type | Switching power amp, class
D circuit(CV-153P) |
| Sensitivity | 104dB(1W@1M) |
| [email protected] | 132dB(PEAK/1M) |
| LF section | 15"(380mm) woofer 100mm
(4in)coil |
| MF section | 6.5"(170mm)woofer 50mm(2incoil) |
| HF section | 2"compression driver with
51mm titanium diaphragm |
| Nominal impedance | 8 ohm |
| Output section | 3-channel |
| Dispersion pattern | 90°H×40°V |
| Surface finish | Black paint |
| Speaker cables | 1(+)1(-) |
| Input connectors | 2×NL4MP speakon |
| Dimensions | 443×814×469mm(W×H×D) |
| Package dimensions | 515×885×540mm/0.34cbm |
| Enclosure | Plywood |
| Net weight | 40kg(CV-153C)/41kg(CV-153P) |
| Gross weight | 45kg(CV-153C)/46kg(CV-153P) |
