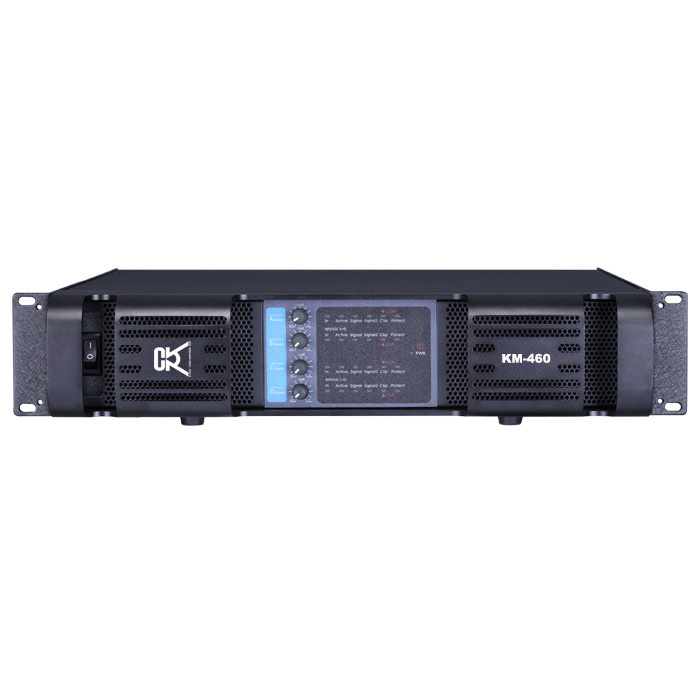

Cvr Perfect Protection Function Power Amplifier

Prod Model:	KM-460
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency Response:	20Hz-20kHz
Output Connectors:	Speakon &Touch-Proof Binding Posts
Dimensions:	88×483×430mm
Type:	Professional Amplifier
Usage:	KTV System
Tube Type:	Tube Amplifier
Function:	Pre-amplifier

Product Description

OVERVIEW
        1 Power supply design
Each equipment includes independent logic high rate of power supply,which can control electrical circuit to adjust power output and voltage from time to time, and to respond the request of signal and load,so it can  get the best power match under the wide range of load,so to ensure the power amplifier will not be overheating.

2 Power output grade
Adopt the balance output circuit,the same as fully symmetrical Bridge Road:compared with the normal single end of land output circuit,the same work voltage can generate the output power in 4 times,that is to say,in order to get the same output power,the work power voltage of power amplifier is much lower thannormal OCL model.The output power tube is with wide safety work area under the condition of low voltage,so it is with higher power and reliability  compared with normal OCL output  model. Most importantly, The distortion of it is much Lower and can  output better tone quality.

3 Sign Voltage Range
There is a limited voltage device within each input channel.By checking the output sign and controlling the input sign,so the power amplifier output will not be at the state of clipping in long time,and can protect the speaker.It can automatically control the input sign when the power amplifier is overheat,so can reduce the heat and keep safety.

4 Perfect protection function
Power amplifier provides various protecting function, such as .direct current protection,internal stoppage protection,input overload protection,filter of radio frequency distraction,output short circuit protection,mismatching load and high frequency overload protection, radiator and over temperature protection for radiator and transformer,over electricity protection.And the over temperature protection for output electricity is achieved by gradually lower the output signal.Only when the temperature keeps rising to the extremity,can it cut off the output electricity supply of this channel,so avoid the stop of play.

5 Heat dissipation system
There is an independent heat dissipation system for each channel,two groups of nonpolar speed adjusted Fan.The sealed air go through the radiator to strengthen the effect of heat dissipation,and at the same time,avoid the the dust and smog of stage to pollute the circuit board to ensure the equipment is in good working condition,and the temperature can get balance in some
ranges.
Model KM-460
 8Ω Stereo Power600W×4
 4Ω Stereo Power900W×4
 8Ω Bridged Mono1800W+1800W
Input Impedance>20K/>10K
Frequency response20Hz-20KHz
THD+N(Rated Power,4Ω/KHz)%0.05%
Input Sensitivity                                          0.775V/1.0V/1.4V
Input Connectors                                        XLR
Output Connectors                                      Speakon&touch-proof binding posts
Power Requirement                                 220V-240V,50-60Hz
conformation                                           steel and aluminum chassis
Airframe Dimension                          88×483×430mm
Net Weight                                      28kg



Model	KM-460
8Ω Stereo Power	600W×4
4Ω Stereo Power	900W×4
8Ω Bridged Mono	1800W+1800W
Input Impedance	>20K/>10K
Frequency response	20Hz-20KHz
THD+N(Rated Power,4Ω/KHz)%	0.05%
Input Sensitivity	0.775V/1.0V/1.4V
Input Connectors	XLR
Output Connectors	Speakon&touch-proof binding posts
Power Requirement	220V-240V,50-60Hz
conformation	steel and aluminum chassis
Airframe Dimension	88×483×430mm
Net Weight	28kg
