| Prod Model: |
CV-1B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Three Way, Bi-AMP,Full Range System |
| Size: |
15" Woofer,10"Mf, 3" Driver |
| Frequency Response: |
50Hz-18kHz |
| Sensitivity: |
Lf102db, Mf105db, Hf111db |
| Power: |
(RMS)Lf500W, Mf200W, Hf100W |
| Material: |
Plywood |
| Finish: |
Black Paint |
| Net Weight: |
61.5kg |
| Dimension: |
540X980X598mm |
| Warranty: |
Two Years Free Warranty |
| Application: |
Commercial |
| Certification: |
MET |
Product Description
CVR LIVE SOUND PRO AUDIO
DESCRIPTION & APPLICATION

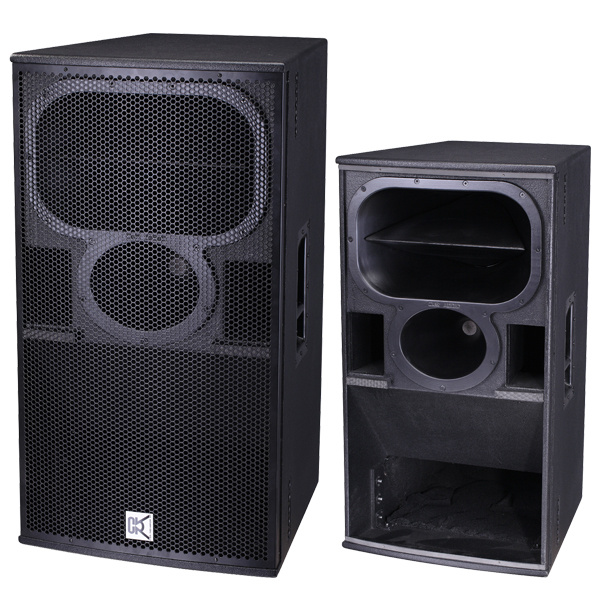

The ultra-compact CV-1B sound system is an unique, innovative three-way, bi-amps full range professional loudspeaker with crossover network built-in both MF/HF sections. CV-1B pa loudspeaker is equipped with one 15" wave horn loading woofer, one 10" wave horn loading neodymium driver and one 3" titanium compression driver optimally splayed for smooth, powerful, mid-long throw wide coverage. Extremely versatile CV-1B loudspeaker blends pleasing aesthetics, uncompromising technical excellence with ease of installation to provide a high quality loudspeaker system to suit installed sound requirements of varied sizes venues such as bars, night clubs, conference centers, stadiums, arenas, etc.
OUR TEAM
1. Any inquiries will be replied within 24 hours.
2. Provide high quality, fashion designs, reasonable and competitive price, fast lead time.
3. Delivery the goods to our customer all over the world with speed and precision.
Sample order in stock and 2-15 days for bulk production.
4. After-sale service:
All products will have been strictly quality checked before packing.
All products will be well packed before shipping.
All products have one year free warranty and lifetime follow-up service.
|
Model |
CV-1B |
|
Type |
Three-way,Bi-amp,full range system |
|
Frequency Response |
50Hz -18kHz ± 3dB |
|
Directivity index(DI) |
12(+2/-2)1.2KHz-16KHz |
|
Power handling |
LF 500W(RMS)1000W(PEAK) |
|
MF 200W(RMS)400W(PEAK) |
|
HF 100W(RMS)200W(PEAK) |
|
Sensitivity |
LF 102dB(1W@1M) |
|
MF 105dB(1W@1M) |
|
HF 111dB( 1W@1M ) |
|
[email protected] |
LF 129dB(PEAK/1M) |
|
MF 128dB(PEAK/1M) |
|
HF 131dB(PEAK/1M) |
|
LF section |
15"(380mm)woofer |
|
100mm(4in)coil |
|
Nominal impedance |
8 ohm |
|
MF section |
10"(260mm)neodymium MF |
|
65mm(2.75in)coil |
|
Nominal impedance |
8 ohm |
|
HF section |
3"compression driver with |
|
74mm titanium diaphragm |
|
Nominal impedance |
8 ohm |
|
Output section |
3-channel |
|
Dispersion pattern |
60°H×40°V |
|
Finish |
black paint |
|
Speaker cables |
LF 1(+)1(-) MF HF 2(+)2(-) |
|
Input connectors |
2×NL4MP speakon |
|
Recommend crossover |
LF 45Hz-400Hz |
|
MF/HF 400Hz-20KHz |
|
Dimensions |
540×980×593mm(W×H×D) |
|
Package dimensions |
610×1060×670mm/0.43cbm |
|
Enclosure |
plywood |
|
Net weight |
61.5kg |
|
Gross weight |
64kg |
