| Prod Model: |
P16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
256*128mm |
| Pixel Configuration: |
1r1g1b |
| Power Supply: |
5PCS |
| Best Viewing Angle: |
12-300m |
| Temperature: |
Working: -35~+85 |
| Working Voltage: |
AC220V/110V± 10% |
| Refresh Frequency: |
≥ 400Hz |
| Brightness Of White Balance: |
More Than 8000CD/Sqm |
| Mtbf: |
≥ 10, 000hours |
| Life Span: |
≥ 100, 000hours |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
16mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
600W / m² |
| Scanning Mode: |
Static Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
| Pixel Density: |
3906dots/Sqm |
Product Description

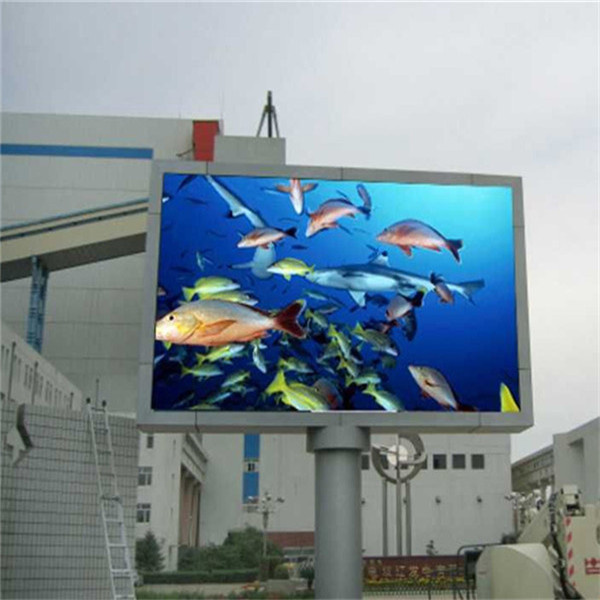

Outdoor LED Video Screen
1. Certification: CE, RoHS, UL, SGS
2. Warranty: 7years
3. Support TV, S-Video, DVI, AVI, MOV.
4. High resolution, 10, 000dots/sqm
| Description | Technical parameter |
| Unit module | Module size | 256*128mm |
| Pixel pitch | 16mm |
| Pixel density | 3904dots/m2 |
| Pixel configuration | 2R1G1B |
| Led specification | Φ 5ellipse |
| Pixel resolution | W: 16dots*H: 8dots |
| Cabinet | Dimension | 1024mm*768mm*170mm |
| Quantities of module | 24pcs |
| Power supply | 5pcs |
| Thermal discharge | Fan*2pcs |
| Total weight | 55kg |
| Best viewing angle | 12-300m |
| Temperature | Storage: -35~+85 |
| Working: -35~+85 |
| Thickness | 17cm can adjustable |
| Remarks: cabinet size can changed, upon project need. |
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 250-480W |
| Max. Power consumption | ≤ 560W/sqm |
| Current | ≤ 20mA(single LED) |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control method | Synchronization |
| Main technical parameter | Driving device | Static scanning |
| Drive type | Constant Current driver IC |
| Refresh frequency | ≥ 400Hz |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color |
| Brightness of white balance | More than 8000cd/sqm |
| Brightness adjustment | 256 levels of each color(R/G/B)by software |
| Operating ambient humidity | 10%--95% |
| Video signal | PAL/NTSC |
| Control system | DVI display card+full color controller card |
| MTBF | ≥ 10, 000hours |
| Life span | ≥ 100, 000hours |
| Flatness | Tolerance of interpixel ≤ 0.3mm |
| Tolerance of modules clearance≤ 0.6mm |
| Power switch | Automatic switch |
| Display mode | 1024*768 |
| Communication distance | Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM |
| Software | LED media player |
