| Prod Model: |
JHD12864-G82BTB-BL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Type: |
Custom Small LCD Display |
| Pixel: |
8192 |
| Model Number: |
Jhd12864-G82btb-Bl |
| Drive Power Supply Voltage: |
3.0V/3.3V |
| Interface: |
30pin 0.5mmpin Gap |
| Drive Type: |
1/64 Duty, 1/9 Bias |
| Color: |
Orange Words Over Black Background |
| Active Area: |
40.93(W)X 24.93(H)Mm |
| Back Light: |
Orange |
| Resolution: |
128*64 |
| Type: |
Graphic |
| Display Technology: |
FSTN/CSTN |
| Usage: |
Small-sized LCM |
| Viewing Angle: |
6.00 O'clock |
Product Description

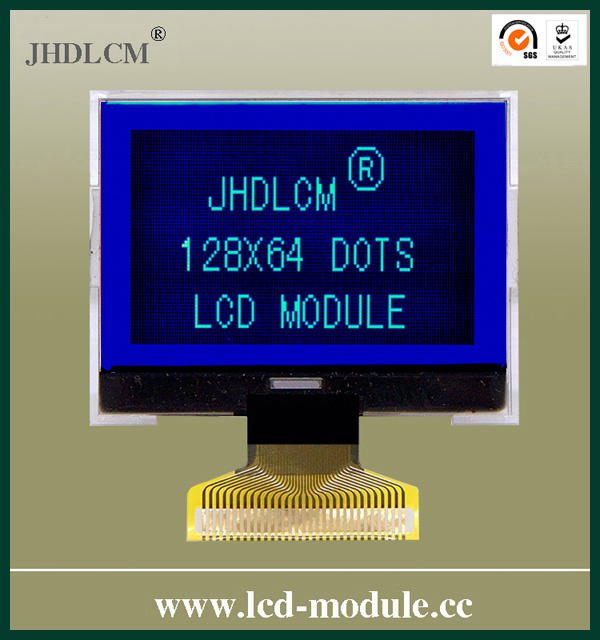

Custom small LCD display JHD12864-G82BTB-BL
Packaging and Delivery:
1. Packaging Details: Carton, Capboard, EPE, Blister Tray. About how many products can be contained in one package, it is up to different size of the products.
2. Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
Specifications:
1-custom small LCD display
2-High Contrast
3-High Resolution
4-Interface: Serial
5-Backlight replaceable
Custom small LCD display is elaborated as follows:
Advantages:
1. Backlight Replaceable
2. WLED backlight, with LED driver
3. LVDS, MCU
4. Wide view angle
5. High Quality
6. Produced in our own factory
7. Reasonable Price
Payment Terms: T/T, L/C etc.
Shipping: Any shipping way you can choose, UPS/ FedEx/ DHL/ EMS.
PS: The shipping fee which you must pay for it. But we will give you the best price of shipping fee
1. Q: Are you manufactory or trade company?
A: We are the ODM and OEM manufactory specialized in FSTN, STN and TFT more than 7 years in Shenzhen! Our factory have passed IS09001: 2000, SGS Factory Audit and ISO14001: 2004. Our advanced full set equipments make sure good quality and competitive price!
2. Q: How can I get the samples?
A: If you need samples, we can make as per your request. You should pay the sample fee and freight. Sample lead time always be within 2-5 days.
3. Q: How much the transportation freight of samples?
A: The freight depends on total weight and volume and your address.
4. Q: How long can I expect to get the sample?
A: The samples will be ready for delivery in 5~7days. The samples will be sent via express and arrive in 5~7 days.
5. Q: When can I get the datasheet?
A: When we get your inquiry, you shall first tell us the part number you want, then we can send you the datasheet immediately.
6. Q: What is the difference between different part number?
A: We make the part number according to the different colors and different display effects of LCD. For example, this part number JHD12864-G13BSW-B, "12864" means the resolution of LCD, "BSW" describe the backlight, "B" in "BSW" means "backlight", "S" in "BSW" means "three LEDs in the backlight", "W" in "BSW" means the color of backlight "white; Last letter"B" means the display effects of LCD, signifies "Blue", therefore, in a words, this part number means the LCD is "white words over blue background, white backlight".
7. Q: Can you design the LCD in acccordance with our demand?
A: Sure. We will give you the best tooling charge.
8. Q: How to order LCD?
A: Please send us your purchase order by Email or Fax or by Escrow, or ask us to send you one invoice. We need to know the following information for your order.
1)Product information-Quantity, part number
2)Delivery time required.
3)Shipping information-Company name, Street address, Phone&Fax number, Destination sea port.
4)Forwarder's contact details if you have any in China.
Contact us:
For more details, pls feel free to contact us at anytime.
24 hours hot-line tel: 0086 13316894211 Alice Wang will be happy to serve you.
|
Main Parameters |
|
Item |
lcd dot matrix display |
|
Model name |
JHD12864-G82BTB-BL |
|
Color |
blue words over black background |
|
Pixel |
8192 |
|
Resolution |
128*64 |
|
Contrast Ratio |
300:1 |
|
Brightness |
blue BL |
|
Outline Dimension |
50.0(W)X39.0 (H)X4.0(T)mm |
|
Viewing Area |
44.00(W)X 29.00(H)mm |
|
Active Area |
40.93(W)X 24.93(H)mm |
|
Resolution |
128*64 |
|
Dots |
128*64 |
|
Pitch |
0.32mm |
|
Drive Power Supply Voltage |
3.0V/3.3V |
|
Viewing Angle |
6.00 o'clock |
|
Operation Temperature |
-20 °C ~ +70 °C |
|
Storage Temperature |
-30 °C ~ +80 °C |
|
Display Mode |
FSTN, negative, blue words over black background |
|
FPC Length |
30.0mm |
|
Response Time |
100ms |
|
IC |
ST7565R |
|
IC Packaging |
COG |
