| Prod Model: |
SC15024-10.1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3.5" Inch |
| Structure: |
Pet + Glass |
| Connector: |
Pin 6 12c Interface |
| Thickness: |
1.4 ± 15 mm |
| Touch Media: |
Finger, Touch Pen |
| Type: |
Projection Capacitive Touch Screen |
| Ratio: |
16:9 |
| Resolution: |
1024*600 |
| Keyword: |
LCD Touch Screen |
| Aspect Ratio: |
16:9 |
| Application: |
Medical Services System |
| Screen Type: |
Capacitive |
| Resistive Touch Screen Type: |
Analog |
| Customized: |
Customized |
| Screen Size: |
10 Inch |
Product Description
Product Description

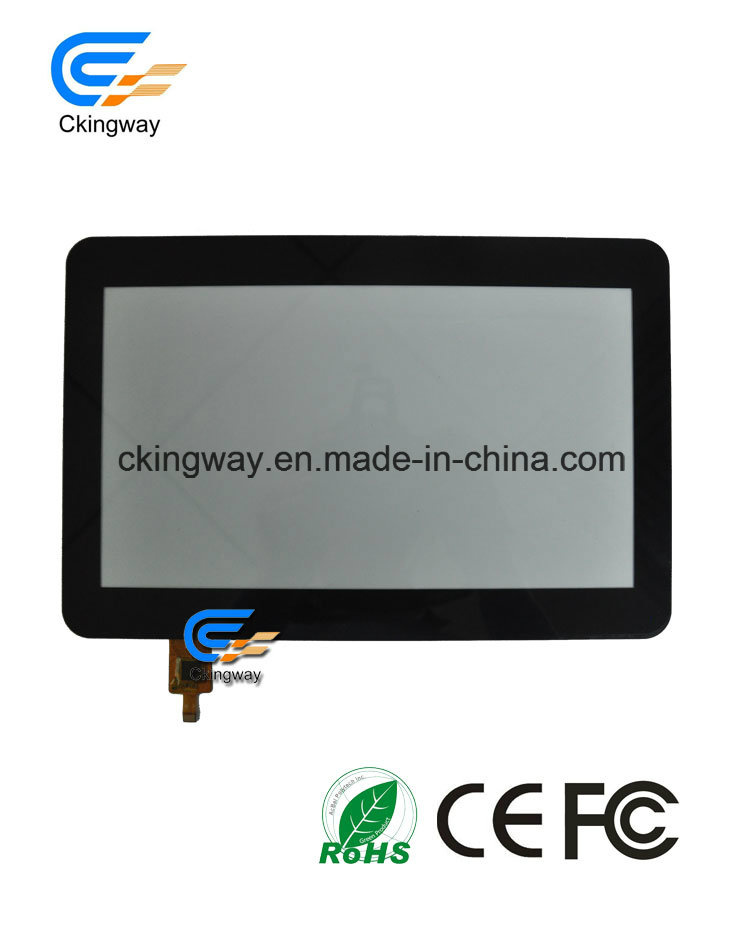

the feature of Custom or standard 10.1'' lcd touch screen with Pin 6 IIC Interface as below:
1.Operates with any medium (finger, pencil, gloves, etc.)
2. Consistently accurate , accurate response
3.Relatively resistant against dirt and spray water
4.Very thin frame
5. Exact registration and precision due to high touch resolution
6. Light and compact design
7. Lowest priced technology that is most frequently used
8. Available custom Service
| Size | 10"00 inch |
| Structure | PET + Glass |
| Connector | Pin 6 12C interface |
| Thickness | 1.4 ± 15 mm |
| Touch Media | Finger, Touch Pen |
| Type | Projection Restistive Touch screen |
| Ratio | 16:9 |
| Resolution | 1024*600 |
| Response Time | ≤ 10 ms |
| Supply Voltage | 2.8 ~ 3.3 V DC |
| Transparent | ≥ 83% |
| Screen Resistance | / |
| Insulation Resistance | ≥20MΩ(10V DC) |
| Pressure | 10 g |
| Surface Hardness | 3H |
| Life Span | > 1,000,000 time knocking ;
≥ 100,000 time in paddling |
| Operating Temperature | - 20ºC ~ +70ºC |
| Storage Temperature | - 30ºC ~ +80ºC |
| Storage Humidity | 20 ~ 85% RH (except congeal fog) |
| Custom Service | Available |
Custom or standard 10.1'' lcd touch screen with Pin 6 IIC Interface for packing:
Anti-Static Foam+Paper Card+Ragged Bag+Carton
Custom or standard 10.1'' lcd touch screen with Pin 6 IIC Interface for Term of payment:
1.Full payment before delivery
2.Prepay 30% as the deposite,T/T 70% the balance before delivery
3.Prepay 50% as the deposite and mould fee ,T/T 50% the balance before delivery
4.Payment method can be nogotiated
About Warranty: 1 Year without damaged by people actions.
FAQ
Q:Sample Policy
A:Free sample,freight cost paid by customer.
Q: Sample leading time ?
A:3-5 days if you need to print your logo.
1-2days for our exsiting samples for reference.
Q :Production time ?
A:10-15 days after sample confirmed.
Q:shipping?
A:Usually we deliver our goods by DHL,UPS, FedEx for the small orders, for large quantity you can choose by sea or by air.
Q:Place an order as OEM to produce under our own brand?
A:Yes, our company accepts OEM and ODMONLY for the following types:
Resistive Touch Panel (3.5 inch to 24 inches)
The sizes of the Touch Panel can be adjusted according to the customers' requirements
