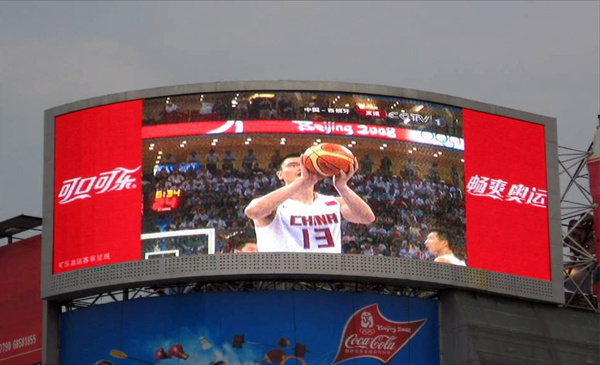

Curved Shape Outdoor LED Display

Name: Curved Shape Outdoor LED Display
Brand: ec-portal.com
SKU: 686091242
Availability: InStock
Rating: 4.5 (26 reviews)

Price:	US $ 500-800/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Send Inquiry

Showroom Product Company Profile

Prod Model:	P16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Brightess:	10000 Nits, Customized Brightness Is Availble
Driving IC:	Mbi 5020, Mbi 5024, Mbi5026 or Mbi5041, Mbi 5042
Refresh Rate:	>600 Hz
Control System:	Asynchronous or Synchronous
Warranty:	2 Years Warranty
Technical Support:	Life Long Technical Support
Training:	in House Factory Training or on Site Training
Display Type:	LED Video Display
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Configuration:	1R, 1G, 1B
Pixel Pitch:	16mm
Display Function:	Video Display
Scanning Mode:	Static Scan
Certification:	FCC
Pixel Density:	3906
Average Power Consumption:	390

Product Description

outdoof full color led display Partner for Guangzhou Asian Games, Shanghai World Expo, Beijing Olympic Games, China-Asian Expo and Boao Asian Forum. Product Description P16 Full Color outdoor LED Display /LED display screen/LED sign/LED wall: 1. Full color outdoor LED display/LED display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the speciality of dampproof, windproof, sunproof, static-proof, anti-freezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc. (LED stage display, LED Outdoor video wall, Wedding LED display, The stage LED electronic screen, LED large screen full color display, advertising LED display, outdoor LED display, indoor LED display) 2. P16 Outdoor LED display Features of the product: 1) High brightness and be adjustable, meets the need of the changing requirement of customer in environment. 2) Having good lightening accordance and no mosaic. 3) Using virtual pixels, better viewing effect for both text & graphic and video. 4) Having larger viewing angle: Horizontal angle 110 degree / elevation angle 50 degree. Getting vivid effect within any position of the viewing range. 5) Any LED in each pixel can be respectively repaired, which reduce the cost of the display maintenance 6) Good heat emission capability 7) Environmental-friendly. 3. Description: LED Display /LED display screen/LED sign/LED video wall 1). Model No.: P10m, P12mm, P16mm, P20mm, P21.33mm, P25mm, P31.25mm, P62.5mm (DIP LED) 2). Display Color: 256*256*256 3). LED Chips: Epstar, Silan 4). Raw Materials: Toshiba IC, MBI IC, , Mean well Power Supply, ball-bearding fans, . UL- approval cable 5). Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with South colock, for hung and rental and so on. 6). Package: Flight box, wooden box package 7). Guarantee: 1 year with parts P16 Outdoor Full Color LED Display /LED screen/LED sign/LED video wall: Ability Integration of industrial chain Advanced Technology Large-scale, standardized Production Custom Design Cost Control Qualification 2010 Shanghai World Expo official sponsor 2012 Asia Game LED Display supplier 19 years design and manufacture full color display experience Classic projects all over the world that would be time-tested Curved Shape Outdoor LED Display Effect Picture: AOUT HIVISI:

P16 outdoor full-color high-contrast LED display
Item	Details	Parameters
Pixel	Physical	16mm
Pixel	Pixel Configuration	1R1G1B
Module	Module resolution	16*16 pixels
Module	Module Size	256*256mm
Cabinet	Physical resolution	64*64 pixels
	Cabinet Size	1024*1024mm HxW
	Physical density	4096 pixels/cabinet
	Module quantity	16pcs=4(h)*4(w)
	Material	steel
	Weight	55 kg Approx
	Power supply(5V60A) Quantity	4 pcs
	Average power consumption	410W
	Max power consumption	1220W
Electricity parameter	Brightness	9000 nits
	Brightness adjusted	100 grade by software or by Auto-optic induced
	Color processing	8 bits
	Display color	16 millions
	Color temperature(k)	7200k
	Physical density	3906 pixels/per square meter
	Whole display flatness	≤ 1.2mm Juncture
	Best view distance	9-65m
	Best viewing angle	H≥100° V≥50°
	Storage temperature	40 degree -5 degree
	Working temperature	20 degree -50 degree
	Driving Method	Constant driving current Scan: static
	Refresh frequency	up to 300Hz
	Frame rate	75Hz
	Humidity(RH)	10%-90%
	Protection grade	Front IP65, Rear IP54 if not specified
	Working voltage	DC 5V
	Power supply	AC 110V ±10% / 220V ±10%
	Average power consumption	400W/M2
	Max power consumption	1200W/M2
	MTBF	8,000 hours
	Screen lifetime	100,000 hours
Control System	Control System	Linsn
	Signal Interface	DVI
	Communication distance	CAT5cable:≤100m Fiber Cable:≥500m
	Signal transfer mode	dot to dot synchronized with computer monitor

About Hivision

Guilin Hivision Technology Co., Ltd. Was founded in 1994, starting as a spin-off of a Bank Database System with LED display project at Computer Science department of Guilin Electronic Engineering University. Through the years, Hivision has grown from a small startup to a full-fledge LED sign and light manufacturer.

Hivision is an ISO9001 certified LED manufacturer with extensive in-house R&D capabilities.

Why choose Hivisi?

In-house LED package ability

We complete the entire LED manufacturing process in-house. Our fully automated LED production process includes from die and wire bonding to package, populating, wave soldering and so on.

Three-step QC process with 1st class inspection equipments

Our strict QC process involves 3-step:

1. Incoming Quality Assurance -BOM

2. Inspection Process Quality Control -Producing

3. Final Quality Assurance - Finished product

Throughout these process, we conduct brightness, white balance, vibration and turning-in tests starting with modules, then panels and completed displays. Once finished, we perform high-pressure water resistance assessments to conform to IP65 standards.

Lastly, we assemble the LED cabinets for video aging and on-site simulations, as well as aesthetic inspections on cabinets and internal components. And prior to shipment, all spare parts are evaluated one last time.

Backed by heavy investment and a strong R&D team composed of 20 professionals with average ten years' experience covering software, firmware, hardware, and mechanical engineering, we are able to provide to you customized need.

Aftersales service

When you receive your shipment, you will find an array of materials to assist you with installation and operation. Documentation and user manuals, as well as software will provide you with all the information that you need to get your LED displays up and running.

Technical support

Free training for operation, maintenance and trouble shooting before the shipment in factory

Life-long free Technical support through Skype and Teamviewer (remote operating your computer).

We strive to understand, inspire and enable our customers and partners to turn their large image dreams into results with known outcomes. We are keeping the aim to add value, through our industry leading competence, with a complete range of high impact screens for permanent installations as well as the rental and staging markets. If you are looking for a reliable partner to realize your project, Hivisi is the right man for the job.
