| Prod Model: |

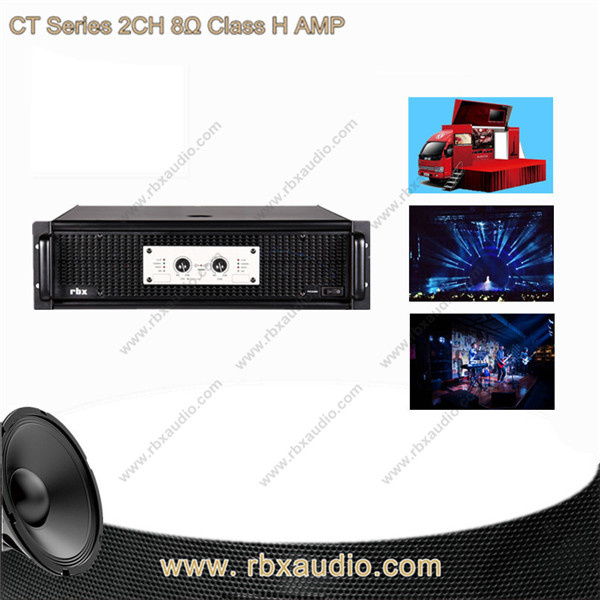

CT Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Aging Test: |
4 Hours |
| System: |
2 Channel Speaker Sound Power Amplifier |
| Rack Size: |
3u |
| 8ohms RMS Options: |
1300W/1100W/800W/600W/520W/420W/320W |
| Housing: |
Metal |
| Heat Sink: |
Air Cooling |
| Input: |
3-Pin XLR |
| Output: |
Neutrik |
| Transformer: |
Toroidal |
| Color: |
Customized |
| Type: |
Professional Amplifier |
| Usage: |
Stage,Club,Project,Sports Field |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Sound Channel: |
2 |
| Output Number: |
2 |
| Conductive Mode: |
H |
Product Description
Featurers:
a. Input Sensitivity is 0.775V/1V/1.4V,so it can change the sensitivity as you need.
b. Class H circuit.
c. Automatic SMT technology, there will be little mistake in producing.
d. Zero current transition system protects the amplifier well.
e. DC protection, Overload protection, Overheat protection, Short circuit protection, Soft start,
f. 4 hours of aging test make every amplifier work smoothly before package.
g. Whole ventilation system makes the amplifier cool down quckly.
h. Changeable Cover make it easy when you clean the amplifier.
i. Warranty: 1 year Guarantee
1. Application:
Stage, Convention Centers, Ballrooms, Conference room, Theaters, Club, Church, Concert and etc.
2. Related Products:
| Mode | CT-220 | CT-320 | CT-420 | CT-520 | CT-600 | CT-800 | CT-1100 | CT-1300 |
| Power8 Ω | 220W×2 | 320W×2 | 420W×2 | 520W×2 | 600W×2 | 800W×2 | 1100W×2 | 1300W×2 |
| Power 4 Ω | 350W×2 | 480W×2 | 650W×2 | 800W×2 | 920W×2 | 1250W×2 | 1700W×2 | 2000W×2 |
| Power 2 Ω | 450W×2 | 750W×2 | 1100W×2 | 1300W×2 | 1500W×2 | 1800W×2 | 2300W×2 | 2700W×2 |
Push-Pull
Power 8 Ω | 650W | 1000W | 1550W | 1900W | 2100W | 2500W | 3200W | 4050W |
Push-Pull
Power4 Ω | 950W | 1500W | 2500W | 2800W | 3200W | 4000W | 4800W | 5400W |
| Frequency | 20Hz-20KHz, -3dB@100KHz |
| THD | <0.05% |
| SNR | >90dB |
| Sensitivity | 0.775V/1.0V/1.4V |
| Net weight | 20kg | 22kg | 24kg | 27kg | 28kg | 36kg | 39kg | 40kg |
| Package size | 490mm×100mm×500mm(W/H/D) | 490mm×135mm×500mm(W/H/D) |
