| Prod Model: |

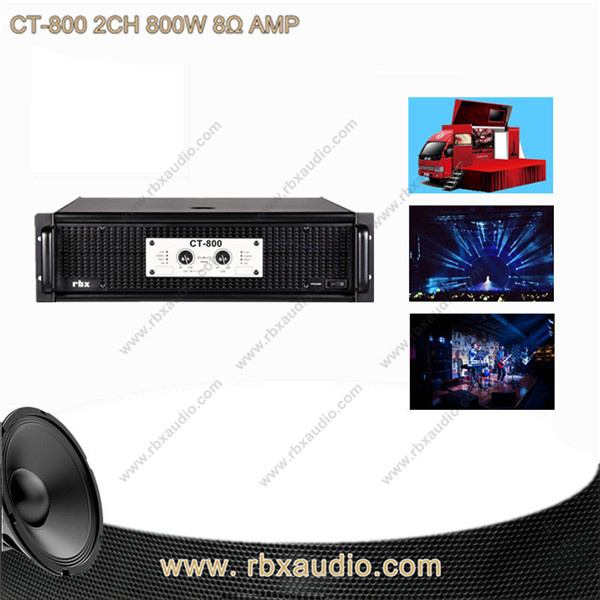

CT-800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Aging Test: |
4 Hours |
| System: |
2 Channel Active Modules Amplifiers |
| Rack Size: |
3u |
| 8ohms RMS Options: |
1300W/1100W/800W/600W/520W/420W/320W/220W |
| Housing: |
Metal |
| Heat Sink: |
Air Cooling |
| Input: |
3-Pin XLR |
| Output: |
Neutrik |
| Transformer: |
Toroidal |
| Color: |
Customized |
| Type: |
Professional Amplifier |
| Usage: |
Stage,Club,Project,Sports Field |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Sound Channel: |
2 |
| Output Number: |
2 |
| Conductive Mode: |
H |
Product Description
Featurers:
a. Input Sensitivity is 0.775V/1V/1.4V,so it can change the sensitivity as you need.
b. Class H circuit.
c. Automatic SMT technology, there will be little mistake in producing.
d. Zero current transition system protects the amplifier well.
e. DC protection, Overload protection, Overheat protection, Short circuit protection, Soft start,
f. 4 hours of aging test make every amplifier work smoothly before package.
g. Whole ventilation system makes the amplifier cool down quckly.
h. Changeable Cover make it easy when you clean the amplifier.
i. Warranty: 1 year Guarantee
1. Overview:
Small the cabinet space and light weight.
Peak power can reach 4000W.
CT-800 uses level 3 class H power technology, it can still keep 70% of efficiency under the peak power.
CT-800 specifically choose pairing power pipe with excellent performance, dynamic response and sound performance make the machine more outstanding.
CT-800 uses a dedicated audio power amplifier toroidal transformers, to provide more than 3 times therated power reserve, its overload capability is very good.
2. Application:
Stage, Convention Centers, Ballrooms, Conference room, Theaters, Club, Church, Concert and etc.
3. Specification:
| Mode | CT-800 |
| Power8 Ω | 800W×2 |
| Power 4 Ω | 1250W×2 |
| Power 2 Ω | 1800W×2 |
| Push-Pull Power 8 Ω | 2500W |
| Push-Pull Power4 Ω | 4000W |
| Frequency | 20Hz-20KHz, -3dB@100KHz |
| THD | <0.05% |
| SNR | >90dB |
| Sensitivity | 0.775V/1.0V/1.4V |
| Net weight | 36kg |
| Package size | 490mm×135mm×500mm(W/H/D) |
