Prod Model: |
MA2402 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Rated Power: |
600W |
Imdepance: |
8ohms |
Power Supply: |
110-220V, 50/60Hz |
Input Sensitivity: |
0.775V. 1.0V. 1.55V |
Frequency Response @ 1 Watt Into 8: |
+0.1db 20Hz-20kHz |
Input Impedance: |
10k/20k Ohurs, Unblanced or Blanced |
Imput Cmrr: |
≤ -75db |
Indicators: |
Signal, Protect, Clip, Limited |
Plug: |
Customize |
Color: |
Silver |
Type: |
Professional Amplifier |
Used For: |
Professional |
Tube Type: |
Tube Amplifier |
Function: |
Post Amplifier |
Sound Channel: |
2.1 |
Output Number: |
8 |
Voltage: |
AC 220V |
Element Number: |
Push-Pull Amplifier |
Conductive Mode: |
AB |
Usage: |
Professional Performance |
Product Description

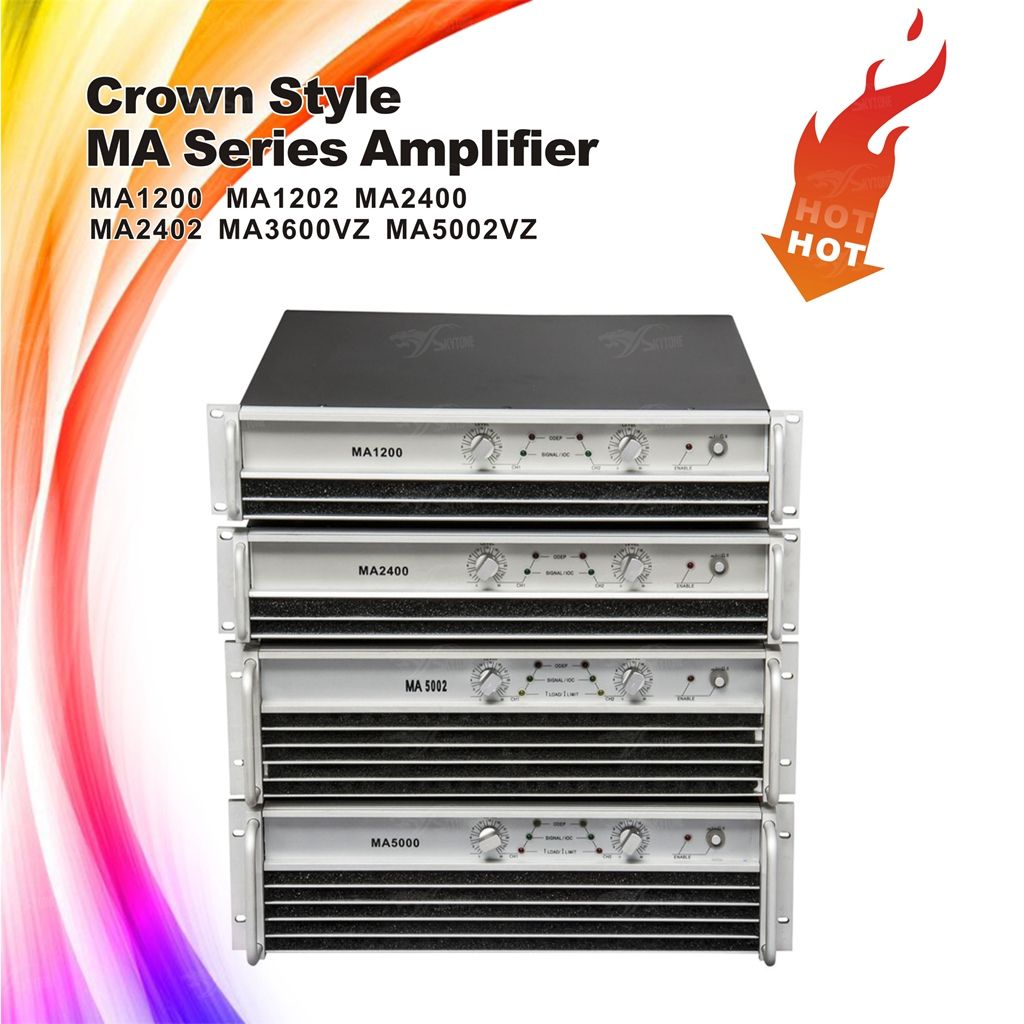

Crown style Ma2402 Stereo Power Amplifier
2U power amplifier
Professional amplifier
Features
--Steel chassis with durable black finish
--Aluminum front panel with Lexan overlay
--Two balanced -inch phone jacks on the back panel and two balanced three-pin female XLR connectors
--Two sets of color-coded 5-way binding posts Output Connectors
--Ultra-Low Distortion:
--VZ Power Supply Technology
--On-Board Compressors
--Loudspeaker Offset Integration
--ODEP(R) Protection
--Distortion Indicator
--Selectable Mono Modes
--Unique Dual-Level Design
--Selectable Sensitivities
--THX Approved
Here we assured:
1. Quality is first.
2. Provide the best serivce.
3. Promise deliver the goods on time.
Other models of CROWN MA SERIES power amplifier:
1. MA1200 power amplifier
2. MA1202 2 channels audio amplifier
3. MA2400 professional speaker amplifier
4. MA3600VZ pro audio amplifier
5. MA5002VZ amplifier
Choose according to your requirements. If you are hesitate, please let me know your demands, I'll choose the most suitable model for you.
Any question regarding to MA2402 pro audio amplifier, please don't hesitate to contact us, we're pleased to help you.
Crown style professional power amplifier |
Model | MA1202 | MA2400 | MA3600 | MA5002 |
Output 8ohms 1KHz0.1% THD Stereo Model: | 2x350W | 2x600W | 2x850W | 2x1100W |
Output 4ohms 1KHz0.2% THD Stereo Model: | 2x500W | 2x850W | 2x1180W | 2x1650W |
Output 2ohms 1KHz0.3% THD Stereo Model: | 2x700W | 2x1250W | 2x1650W | 2x2300W |
Output 8ohms 1KHz0.4% THD bridge Model: | 1000W | 1700W | 2200W | 3000W |
Output 4ohms 1KHz0.5% THD bridge Model: | 1500W | 2500W | 3200W | 4500W |
Signal/noise: | 103dB | 105dB | 105dB | 106dB |
Slew Rate: | 60v/us | 60v/us | 80v/us | 80v/s |
Damping factor: | 400: 01: 00 | 450: 01: 00 | 500: 01: 00 | 550: 01: 00 |
Fuse: | T8A | T10A | T12A | T15A |
Power Supply: | 220V 50/60HZ |
Input Sensitivity: | 0.775V. 1.0V, 1.55V |
Frequency Response @ 1 Watt into 8ohms: | +0.1dB 20HZ-20KHZ |
THD+N: | ≤ 0.01% Rated Power @ 8Ω 1KHZ |
IMD: | ≤ 0.01% Rated Power @ 8Ω |
Input Impedance: | 10K/20K ohurs, unblanced or blanced |
Crosstalk at Rated Output 8ohms 1KHZ" | ≤ -70dB |
Imput CMRR: | ≤ -75dB |
Indicators: | Signal, Protect, Clip, Limited |
New Weight: | 16.3kg | 18.45kg | 19.45kg | 32kg |
Dimensions(mm): | 483Wx480Dx88H | 483Wx480Dx133H |
