| Prod Model: |
MA1200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Ma1200 |
| Power Supply: |
220V 50/60Hz |
| Input Sensitivity: |
0.775V. 1.0V, 1.55V |
| Input Impedance: |
10k/20k Ohurs, Unblanced or Blanced |
| Imput Cmrr: |
≤ -75db |
| Tube Type: |
Tube Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
2.1 |
| Output Number: |
8 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
Product Description

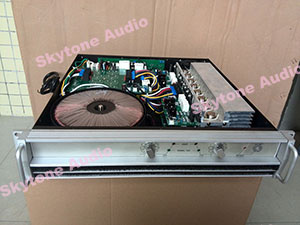

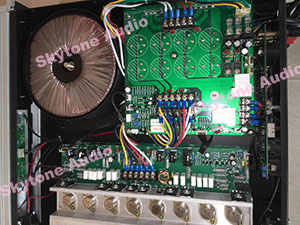

Crown Style MA1200 Power Amplifier
Professional amplifier
--Steel chassis with durable black finish
--Aluminum front panel with Lexan overlay

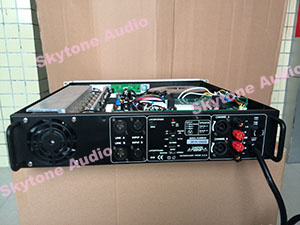

--Two balanced -inch phone jacks on the back panel and two balanced three-pin female XLR connectors
--Two sets of color-coded 4-way binding posts Output Connectors
--Ultra-Low Distortion:
--VZ Power Supply Technology
--On-Board Compressors
--Loudspeaker Offset Integration
--ODEP(R) Protection
--Distortion Indicator
--Selectable Mono Modes
--Unique Dual-Level Design
--Selectable Sensitivities
--THX Approved
| Crown style professional power amplifier |
| Model | MA1202 | MA2400 | MA3600 | MA5002 |
| Output 8ohms 1KHz0.1% THD Stereo Model: | 2x350W | 2x600W | 2x850W | 2x1100W |
| Output 4ohms 1KHz0.2% THD Stereo Model: | 2x500W | 2x850W | 2x1180W | 2x1650W |
| Output 2ohms 1KHz0.3% THD Stereo Model: | 2x700W | 2x1250W | 2x1650W | 2x2300W |
| Output 8ohms 1KHz0.4% THD bridge Model: | 1000W | 1700W | 2200W | 3000W |
| Output 4ohms 1KHz0.5% THD bridge Model: | 1500W | 2500W | 3200W | 4500W |
| Signal/noise: | 103dB | 105dB | 105dB | 106dB |
| Slew Rate: | 60v/us | 60v/us | 80v/us | 80v/s |
| Damping factor: | 400: 01: 00 | 450: 01: 00 | 500: 01: 00 | 550: 01: 00 |
| Fuse: | T8A | T10A | T12A | T15A |
| Power Supply: | 220V 50/60HZ |
| Input Sensitivity: | 0.775V. 1.0V, 1.55V |
| Frequency Response @ 1 Watt into 8ohms: | +0.1dB 20HZ-20KHZ |
| THD+N: | ≤ 0.01% Rated Power @ 8Ω 1KHZ |
| IMD: | ≤ 0.01% Rated Power @ 8Ω |
| Input Impedance: | 10K/20K ohurs, unblanced or blanced |
| Crosstalk at Rated Output 8ohms 1KHZ" | ≤ -70dB |
| Imput CMRR: | ≤ -75dB |
| Indicators: | Signal, Protect, Clip, Limited |
| New Weight: | 16.3kg | 18.45kg | 19.45kg | 32kg |
| Dimensions(mm): | 483Wx480Dx88H | 483Wx480Dx133H |
