| Prod Model: |
PRO8200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Response: |
20Hz-20kHz |
| Power Handling: |
800W X2 RMS |
| Thd: |
<0.05% |
| S/N: |
>108db |
| Install Space: |
2u |
| Type: |
Professional Amplifier |
| Used For: |
Professional |
| Tube Type: |
Tube Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
2.1 |
| Element Number: |
Push-Pull Amplifier |
| Usage: |
Professional Performance |
| Output Number: |
2 |
| Voltage: |
AC110-120V or AC220-240V |
| Conductive Mode: |
H |
Product Description

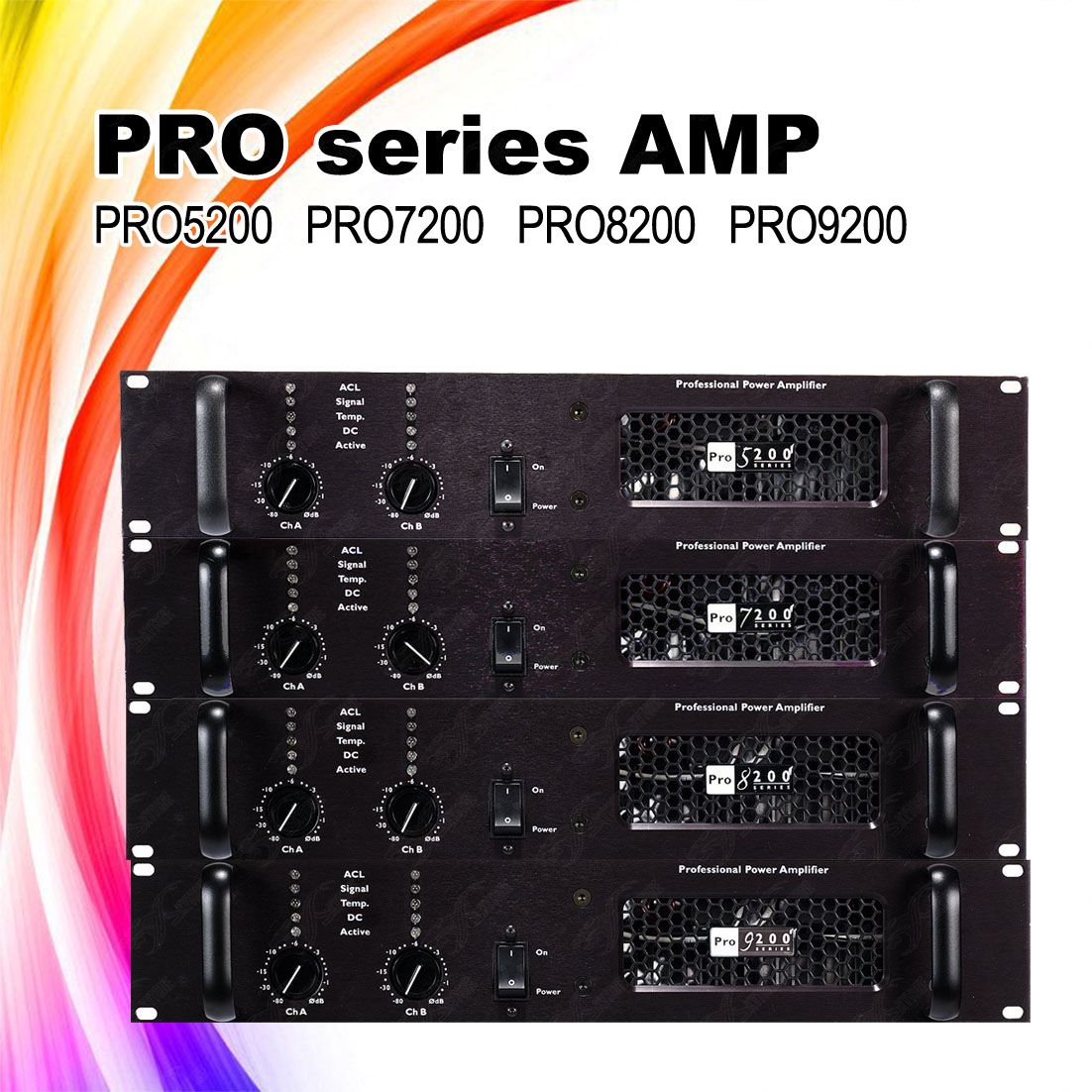

Crest PRO8200 style Pro Audio Power Amplifer
Professional amplifier
power amplifier
Features:
---Popular H-class amplifier
---DC Protection
---Short circuit protection
---Overheat protection
---Overput protection
---Limiting protection
Other model of Crest style Pro series:
Pro 5200 professional power amplifier
Pro 7200 audio amplifier
Pro 9200 two channels speaker amplifier
Any question about Pro 200Series amplifier, welcome for details!
Specifications:
| PRO Series Amplifier |
| Technical Specification | PRO5200 | PRO7200 | PRO8200 | PRO9200 |
| PMPO(peak power) | 4 ohms Bridge | 1711 | 2282 | 3042 | 4183 |
| 8 ohms Bridge | 1316 | 1755 | 2340 | 3218 |
| 2 ohms Stereo | 1800 | 2400 | 3200 | 4400 |
| 4 ohms Stereo | 1350 | 1800 | 2400 | 3300 |
| 8 ohms Stereo | 675 | 900 | 1200 | 1650 |
| (20Hz-20KHz, ≤ 0.1%THD) (rated power) | 4 ohms Bridge | 1141 | 1521 | 2028 | 2789 |
| 8 ohms Bridge | 878 | 1170 | 1560 | 2145 |
| 2 ohms Stereo | 761 | 1014 | 1352 | 1859 |
| 4 ohms Stereo | 585 | 780 | 1040 | 1430 |
| 8 ohms Stereo | 450 | 600 | 800 | 1100 |
| safe protection | Dc protection | √ |
| Short circuit protection | √ |
| Sensitivity overheating management system | √ |
| Overheat protection | √ |
| Input overload protection | √ |
| Output overload protection | √ |
| Soft start protection | √ |
| Limiting protection | can reach 10V |
| Frequency Response(1W 8ohms) | 20Hz-20KHz(± 3dB) |
| Sensitivity (8ohms 1KHz) | 0.775v | 0.775v | 0.775v | 0.775v |
| Link | Input link | XLR, 1/4Jack | XLR, 1/4Jack | XLR, 1/4Jack | XLR, 1/4Jack |
| Output link | SPEAKON | SPEAKON | SPEAKON | SPEAKON |
| Filter electrolysis capacity | 40000uf | 40000uf | 60000uf | 60000uf |
| Input impedance | Balance input | 20Kohms |
| Unbalanced input | 10Kohms |
| String sound attenuation (20Hz-20KHz, 8ohms | ≥ 65dB |
| S/N (Rated Power: 8Ohm) | ≥ 108dB |
| Damping coefficient(1KHz& 8ohms) | ≥ 900 |
| (Intermodulation distortion)(20Hz-20KHz) | ≤ 0.02% |
| (Total harmonic distortion) (20Hz-20KHz) | ≤ 0.05% |
| (Phase response) (1W& 8ohms, 20Hz-20KHz) | ≤ ± 8° |
| Conversion rate | ≥ 60V/µ s |
| Output circuit type | H |
| (Power consumption ) 4ohms, 1/8RMS/230V | 250 | 450 | 550 | 650 |
| Installation space | 2U |
| Cooling system | intelligent system, automatic adjustment according to changing temperature |
| (Size) (W× H× D) | 482× 88× 460mm |
| (Net Weight) | 15.5kg | 17.65kg | 19.9kg | 25.5kg |
| Technical support and after-sales service | 1 years Warranty (non-artificial damage) |
