| Prod Model: |
PRO7200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
600W |
| Impedance: |
8ohms |
| String Sound Attenuation (20Hz-20kHz): |
≥ 65db |
| S/N (Rated Power: 8ohm): |
≥ 108db |
| Damping Coefficient(1kHz& 8ohms): |
≥ 900 |
| (Intermodulation Distortion)(20Hz-20kHz: |
≤ 0.02% |
| Total Harmonic Distortion(20Hz-20kHz): |
≤0.05% |
| Phase Response(1W&8ohms, 20Hz-20kHz): |
≤±8° |
| Conversion Rate: |
≥60V/Us |
| Power Plug: |
Customize |
| Type: |
Professional Amplifier |
| Usage: |
Performance |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
2.1 |
| Output Number: |
4 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
Product Description

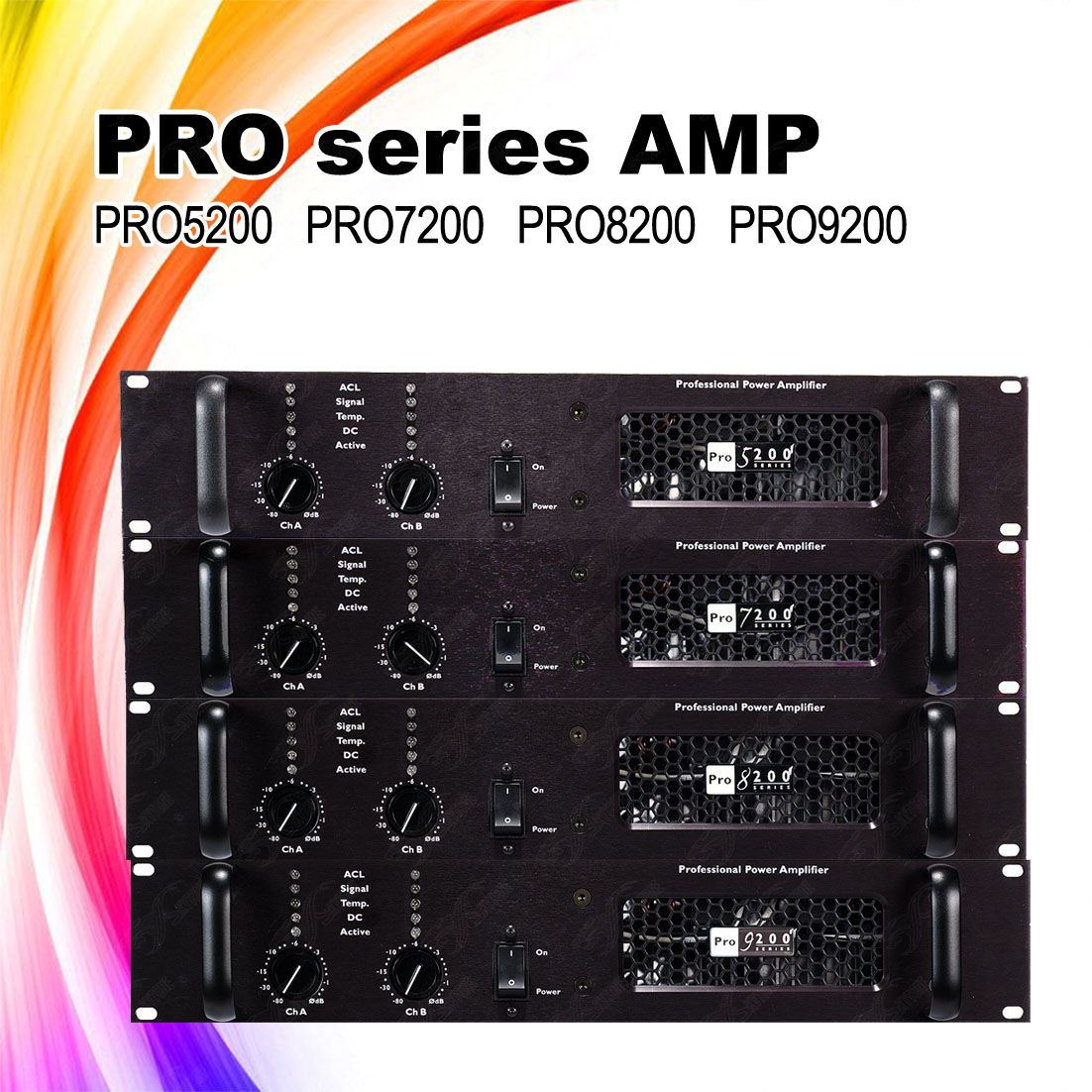

Crest PRO7200 style Professional Power Amplifier
----2 channels pro aamplifier
----professional power amplifier
----audio amplifier system
----pro power amplifier equipment
----Popular H-class Amplifier
Crest style PRO7200 has following protections:
1. DC Protection
2. Short Circuit protection
3. Overheat protection
4. Overload protection
5. Soft start protection
6. Limiting protection
Any question about Crest style PRO7200 PRO Amplifiers(PRO Series), welcome for details, we're glad to help you. We'll stick by you and won't let you down.
| PRO Series Amplifier |
| Technical Specification | PRO5200 | PRO7200 | PRO8200 | PRO9200 |
| PMPO(peak power) | 4 ohms Bridge | 1711 | 2282 | 3042 | 4183 |
| 8 ohms Bridge | 1316 | 1755 | 2340 | 3218 |
| 2 ohms Stereo | 1800 | 2400 | 3200 | 4400 |
| 4 ohms Stereo | 1350 | 1800 | 2400 | 3300 |
| 8 ohms Stereo | 675 | 900 | 1200 | 1650 |
| (20Hz-20KHz, ≤ 0.1%THD) (rated power) | 4 ohms Bridge | 1141 | 1521 | 2028 | 2789 |
| 8 ohms Bridge | 878 | 1170 | 1560 | 2145 |
| 2 ohms Stereo | 761 | 1014 | 1352 | 1859 |
| 4 ohms Stereo | 585 | 780 | 1040 | 1430 |
| 8 ohms Stereo | 450 | 600 | 800 | 1100 |
| safe protection | Dc protection | √ |
| Short circuit protection | √ |
| Sensitivity overheating management system | √ |
| Overheat protection | √ |
| Input overload protection | √ |
| Output overload protection | √ |
| Soft start protection | √ |
| Limiting protection | can reach 10V |
| Frequency Response(1W 8ohms) | 20Hz-20KHz(± 3dB) |
| Sensitivity (8ohms 1KHz) | 0.775v | 0.775v | 0.775v | 0.775v |
| Link | Input link | XLR, 1/4Jack | XLR, 1/4Jack | XLR, 1/4Jack | XLR, 1/4Jack |
| Output link | SPEAKON | SPEAKON | SPEAKON | SPEAKON |
| Filter electrolysis capacity | 40000uf | 40000uf | 60000uf | 60000uf |
| Input impedance | Balance input | 20Kohms |
| Unbalanced input | 10Kohms |
| String sound attenuation (20Hz-20KHz, 8ohms | ≥ 65dB |
| S/N (Rated Power: 8Ohm) | ≥ 108dB |
| Damping coefficient(1KHz& 8ohms) | ≥ 900 |
| (Intermodulation distortion)(20Hz-20KHz) | ≤ 0.02% |
| (Total harmonic distortion) (20Hz-20KHz) | ≤ 0.05% |
| (Phase response) (1W& 8ohms, 20Hz-20KHz) | ≤ ± 8° |
| Conversion rate | ≥ 60V/µ s |
| Output circuit type | H |
| (Power consumption ) 4ohms, 1/8RMS/230V | 250 | 450 | 550 | 650 |
| Installation space | 2U |
| Cooling system | intelligent system, automatic adjustment according to changing temperature |
| (Size) (W× H× D) | 482× 88× 460mm |
| (Net Weight) | 15.5kg | 17.65kg | 19.9kg | 25.5kg |
| Technical support and after-sales service | 1 years Warranty (non-artificial damage) |
