| Prod Model: |
12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Two Chemical Process: |
Sodium Chlorite + Hydrochloric Acid |
| Type: |
Flow/Residual Clo2 Remote Control Clo2 Generator |
| Specification: |
30g-20000g/H |
| Function: |
Main Equipment |
| Usage: |
Special Equipment |
| Processing Methods: |
Chemistry |
| Water Pollution Control Equipment Type: |
Chemical Treatment Equipment |
| Pullution Sources: |
Water Pollution Control |
| Structure: |
Equipment |
Product Description
Waterman brand Chlorine Dioxide Generator is specially designed for water purification. It is a disinfection system of producing chlorine dioxide solution on site and adding them to water for disinfection, algae removal, bleaching, deodorization, etc.
It has many unique and prominent features of optimized structural design, good materials choice, good quality, low cost, safe and reliable operation and good applicability.
We always provide the most economical, reasonable and suitable disinfection solutions to our customers according to their special requirements and special circumstances of the scene.

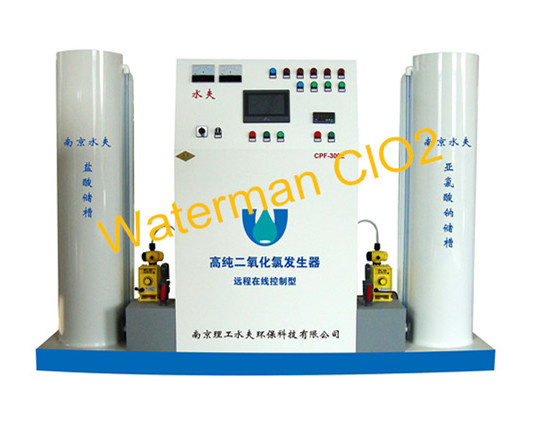

CPF-E series ClO2 generator is a kind of positive pressure and remote automatic control disinfecting system. It is adopted Positive Pressure dosing technology for the first time in the world. It can brought disinfectant solution directly to the pressured water with simple, safe, reliable, stable operation and other characteristics. It can be realized site-control and remote-control. The clo2 generating system can be incorporated into the user's central control system.
The way of clo2 producing:
5NaClO2+4HCl = 4ClO2+5NaCl+2H2O
Use of raw materials:
Sodium Chlorite: 78% Industrial Sodium Chlorite
Hydrochloric Acid: 31% Industrial Hydrochloric Acid
Technology:
Use sodium chlorite and hydrochloric acid as raw materials, transmission of raw materials through two metering pumps to the reactor, produce the concentration of more than 95% of high-purity chlorine dioxide solution added to water for disinfection. It can automatically adjust the dosage of clo2 solution through flow control and residual chlorine display system. When lack of raw materials, the liquid level alarm system will give audible and visible alarm signals and automatically cut off the power supply of equipment. The entire control system use PLC as the core, on-site parameters setting through the touch screen and remote control through the computer, to realize high-performance automated management of disinfection system. Raw materials conversion rate is more than 95%.
Main parameters:
Working temperature: 5 ~ 40 degrees Celsius
Operating voltage: 220V plus or minus 10% / 380V plus or minus 10%
Operating current: < 10A
There should be no strong electric field and magnetic field interference around equipment.
Maximum pressure of water-pipe-line: < 0.7Mpa
Function: PLC control
Computer Remote Control
Work data records
Flow control, Residual-chlorine-on-line display, or manual control
Low liquid level alarm of raw materials
Linkage with water pump
| Index Model | ClO2 Production (g/h) | Disinfection capacity | Overall Dimensions (mm) |
| Drinking Water | Hospital Foul Water | Swimming Pool Water | Industrial Circulating Cooling Water |
| CPF-50E | 0~50 | 50~100 | 2.5~5 | 25~50 | 25~150 | 1400×470×1550 |
| CPF-200E | 0~200 | 200~400 | 10~20 | 100~200 | 100~600 | 1500×470×1620 |
| CPF-500E | 0~500 | 500~1000 | 25~50 | 250~500 | 250~1500 | 1800×550×1620 |
| CPF-1000E | 0~1000 | 1000~2000 | 50~100 | 500~1000 | 500~3000 | 2000×600×1860 |
| CPF-5000E | 0~5000 | 5000~10000 | 250~500 | 2500~5000 | 2500~15000 | 2400×660×1860 |
Nanjing Ligong Shuifu Environment Protection Technology Co., Ltd (in short Shuifu E. P. ), which is known for its advanced technology, has more than 10 years experiences in designing, researching, manufacturing chlorine dioxide products and application processes in water/waste water treatments to meet all kinds of different needs. Our main products are waterman brand chemical chlorine dioxide generator and waterman chlorine dioxide disinfectant. The products technology has reached international advanced standards.
ClO2 has been recognized and confirmed by WHO and EPA(USA) as the safe, efficiency, wide-spectrum and powerful bactericide. It is internationally accepted as the ideal substitute for Gas Chlorine in all fields of water treatments. It has been widely used as good bactericide, decolor and removal of taste agent, oxidant and bleaching agent.
Waterman brand chemical chlorine dioxide generator has many unique and prominent features of optimized structural design, good materials choice, good quality, low cost, safe and reliable operation and good applicability. It has formed varieties and serialized products covering from manual negative pressure generator to automatic positive pressure generator.
Waterman brand chlorine dioxide powder is a kind of high - effective, safe, broad-spectrum disinfectant used with unique formula technology and three components packaged in one bag.
Now thousands of water works, hospitals, chemical plants, municipal sewage system etc. In China have been installed chlorine dioxide generators with efficiency working no need of daily maintenance and easy operation. We look forward to more extensive cooperation and exchanges with the new and old friends all over the world.
