| Prod Model: |
IPZZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: |
Home |
| Brand: |
Imposol |
| Tube Size: |
58*1800 |
| Warranty: |
8years |
| Package: |
Export |
| Max. Capacity: |
>200L |
| Structure: |
Compact Type |
| Pressure: |
Pressurized |
| Interior Material: |
Copper |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Tank Insulation |
| Certification: |
CCC |
Product Description

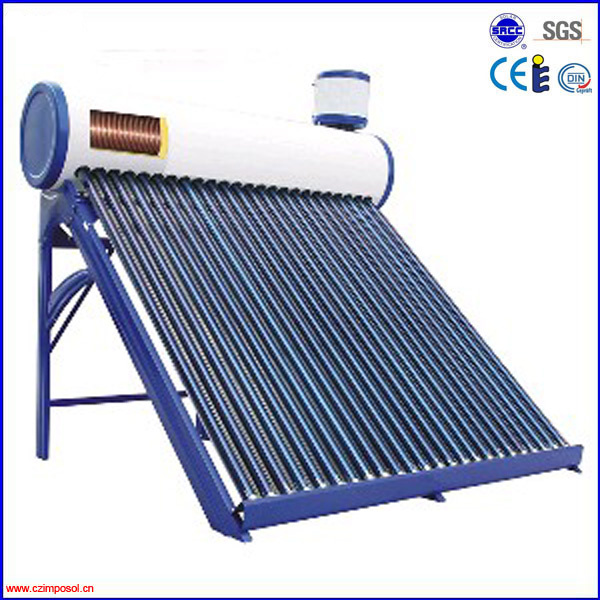

Copper Coil Solar Water Heater
ZhiZhun series is pressurized solar water heater with copper coil inside of water tank.
Specification:
Pressurized solar water heater(thermosiphon) provide energy and get hot water by a efficient coppper coil fixed in water tank. Different from other common solar water heaters, this type could be used pressurized. As water in tank can store energy, when cold water goes through copper coil, it could absorb heat from water in tank. The copper coil is20-60 m long.
Tank installation should be according to local condition. Thermosiphon solar water heater system is suitable for family, swimming pool, solar water furnace system and floor heating. It is suitable in areas with cold weather and bad-quality water. It could be used as pressurized system, with much lower price than solar water heater with pressurized water tank.
Copper Coil Heat Exchanger Specifications
HE Material
Diameter: 12mm, 14mm, 16mm; Thickness: 1.0mm copper pipe
HE Surface Area
1.5m² For 30 tube water heater
HE Testing Pressure
9 bar
| Copper Coil Heat Exchanger Specifications |
| HE Material | Diameter: 12mm, 14mm, 16mm; thickness: 1.0mm copper pipe |
| HE Surface Area | 1.5m² for 30 tube water heater |
| HE Testing Pressure | 9 bar |
| Model | Ligthing
(m2) | Vacuum Tube | Qty (20' /40' FCL) |
| diameter | length | tube |
| IPZ58/20 | 2.88 | Ø 58mm | 1800mm | 20 | 39/96 |
| IPZ58/24 | 3.46 | Ø 58mm | 1800mm | 24 | 32/76 |
| IPZ 58/30 | 4.32 | Ø 58mm | 1800mm | 30 | 28/66 |
Imposol New Energy Co., Ltd., locates in Changzhou City, Jiangsu Province, Changzhou, a prefecture-level city in Jiangsu province, is located on the southern bank of the Yangtze River near the river mouth. Our company is a professional solar energy company in China which includes research, manufacture and marketing. In recent years, our products have been well accepted by the European market, Australia, Africa and the Asian market because of its high performance and reasonable price. We pay much attention to products' Quality and company' S credit.
As an OEM factory in China, it specializes in manufacturing solar water heaters and vacuum tubes. It has a workshop covering 6000 square meters with a capacity of 100 thousand solar water heaters and 1 million vacuum tubes every year. These products have enjoyed great popularity among many countries for many years because of their high performance and reasonable price. We have also designed some wonderful solar water projects which use solar collectors with metal vacuum tubes for hospitals, schools, factories and families. Customers either at home or abroad highly praise our projects for their high efficiency and excellent energy-saving system.
As the shortage of energy and pressure of environment pollution appear, the importance of the solar energy is increasing day by day. Thus in order to benefit people, Imposol will do its utmost to provide various solar products with high quality and efficiency.
