| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Auto Defrosting: |
Yes |
| Type: |
Central Air Conditioners |
| Capacity: |
27000-48000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
>50dB |
| Certification: |
BEB |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
Product Description

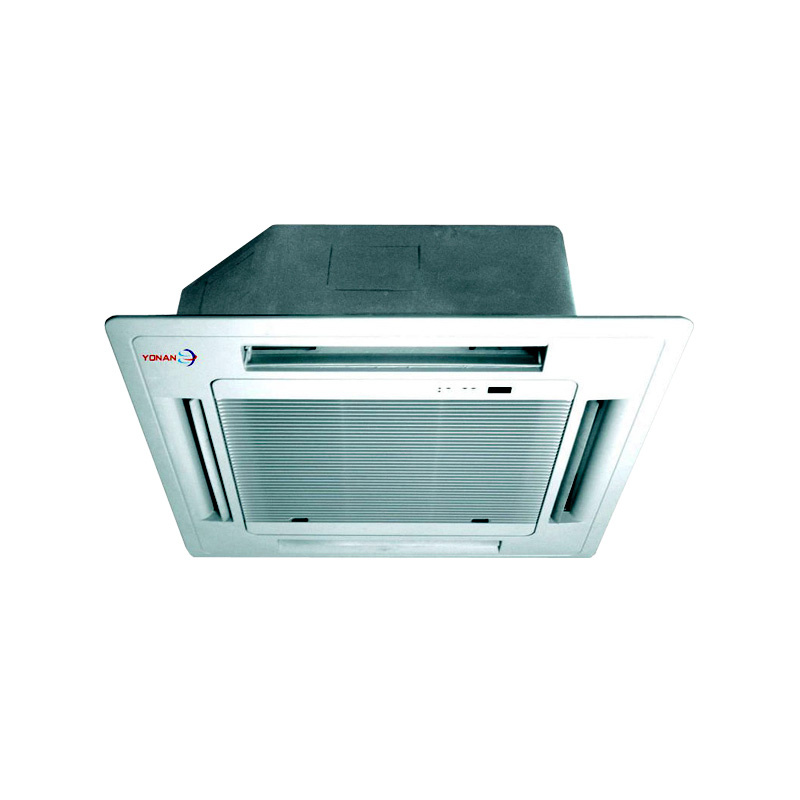

Cooling Only Ceilling Mounted Cassette Air Conditioner
Feature
1. Heat exchanger adopting Aluminum Foil/Inner Copper tube, high efficiency.
2. High control technology, long distance air supply.
3. Large airflow, low noise due to large diameter scroll fan.
4. Famous brand water pump discharge condensing water, to raise water height as high as 750mm.
5. Touchable electric contactor controls the water level. When the condensing water height in the fan coil is beyond the fixed height, the unit will stop running.
6. Adjust temperature exactly, the difference within ±1°C,using delicate resistance temperature sensor.
7. High efficiency sterilization filter screen to ensure the healthy new air cycle air.
8. Fresh air opening can introduce part of outdoor fresh air, to keep the indoor air quality
Specification
Power supply | V-ph-Hz | 220~240-1-60 |
| Cooling | Capacity | Btu/h | 38000 |
| Input | W | 4125 |
| EER | W/W | 3.0 |
| Heating | Capacity | Btu/h | / |
| Input | W | / |
| COP | W/W | / |
| Indoor fan motor | Model | | YDK90-6F |
| Qty | | 1 |
| Input | w | 160/124/95 |
| Capacitor | uF | 3.5UF/450V |
| Speed(hi/mi/lo) | r/min | 750/610/500 |
| Indoor coil | a.Number of rows | | 2 |
| b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 |
| c.Fin spacing | mm | 1.5 |
| d.Fin type (code) | | Hydrophilic aluminium |
| e.Tube outside dia.and type | mm | Φ7,Inner grooved tube |
| f.Coil length x height x width | mm | 1990x252x26.74 |
| g.Number of circuits | | 12 |
| Indoor air flow (Hi/Med/Lo) | m3/h | 1545/1354/1187 |
| Sound level (sound pressure) | dB(A) | 44/42.5/41 |
| Throttle type | | / |
| Indoor unit | Dimension (W x Dx H)(body) | mm | 840x840x300 |
| Packing (W x Dx H)(body) | mm | 900x900x320 |
| Dimension (W x Dx H)(panel) | mm | 950x950x55 |
| Packing (W x Dx H)(panel) | mm | 1035x1035x90 |
| Net/Gross weight(body) | kg | 30/35 |
| Net/Gross weight | kg | 5/8 |
| Design pressure | MPa | 4.2/1.5 |
| Drainage water pipe dia. | mm | ODΦ32 |
| Refrigerant piping | Liquid side/ Gas side | mm | Φ9.52/Φ15.9(3/8"/5/8") |
| Controller | | RG51Q1/BGE |
| Operation temperature | Cooling | ºC | ≥17 |
| Heating | ºC | /
|
