| Prod Model: |
Y-E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Refrigerant: |
R410A |
| Type: |
Window Mounted Air Conditioners |
| Usage: |
Room |
| Indoor Machine Noise: |
>50dB |
| Certification: |
BEB |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling Only |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
| Capacity: |
7000BTU |
Product Description

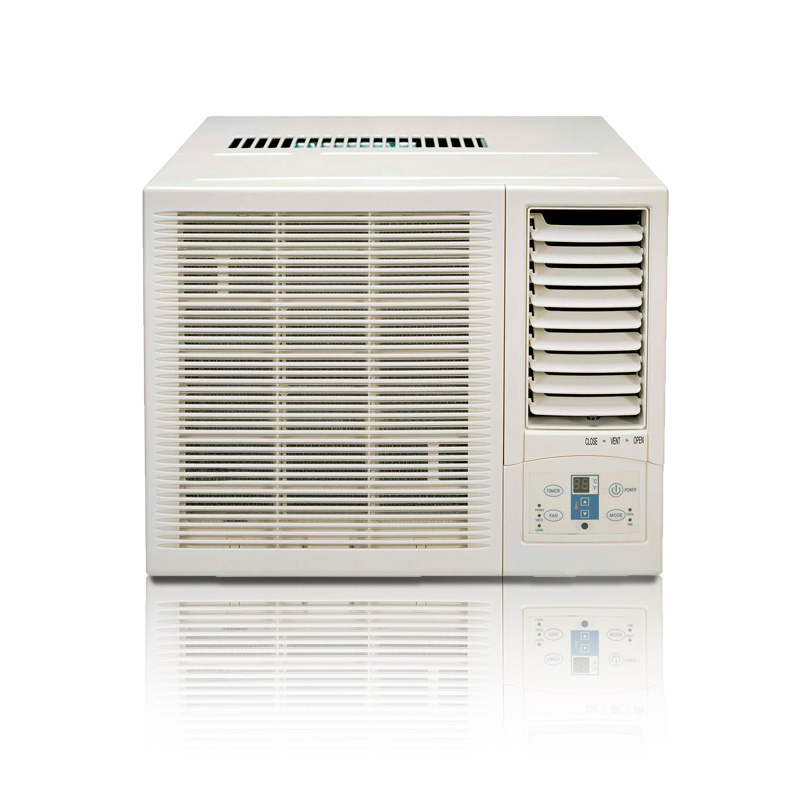

Cooling Only 7000Btu R410a Mini Window Type Air Conditioner
Feature
1. R410a window type air conditioner
2. The known brand compressor, with best quality
3. Low noise opration
4. Intelligent defrosting(optional)
5. Intelligent control, easy operation
6. Independent de-humidifying
7. Automatic restart function
8. 5 years warranty for compressor, and 2 years for complete unit
9. 1% free spare part of total amount
Specification
Power supply | Ph-V-Hz | 1Ph,220-240V~ ,50Hz |
| Cooling | Capacity | Btu/h | 2.2KW |
| Input | W | 635 |
| Current | A | 2.6 |
| EER | W/W | 3.5 |
| Heating | Capacity | Btu/h | N/A |
| Input | W | N/A |
| Current | A | N/A |
| COP | W/W | N/A |
| Moisture Removal | L/h | 0.8 |
| Rated input consumption | W | 950 |
| Rated current | A | 4.8 |
| Starting current | A | 15 |
| Compressor | Model |
| PA79M1C-4DZDE1 |
| Type |
| ROTARY |
| Brand |
| GMCC |
| Fan motor | Model |
| YSK40-6F |
| Brand |
| Welling |
| Input | W | 99/85/78 |
| Capacitor | uF | 4.0 |
| Speed(Hi/Mi/Lo) | r/min | 890/810/730 |
| Evaporator | a.Number of rows |
| 2 |
| b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 |
| c.Fin spacing | mm | 1.3 |
| d.Fin type (code) |
| Hydrophilic aluminium |
| e.Tube outside dia.and type | mm | Φ7,innergroove tube |
| f.Coil length x height x width | mm | 355x336x26.74 |
| g.Number of circuits |
| 4 |
| Indoor side air flow(Hi/Mi/Lo) | m3/h | 380/345/310 |
| Indoor side noise level (Hi/Mi/Lo) | dB(A) | 51/48/45 |
| Condenser | a.Number of rows |
| 2 |
| b.Tube pitch(a)x row pitch(b) | mm | 19.5x11.6 |
| c.Fin spacing | mm | 1.3 |
| d.Fin type (code) |
| UnHydrophilic aluminium |
| e.Tube outside dia.and type | mm | Φ5,innergroove tube |
| f.Coil length x height x width | mm | 621x351x23.2 |
| g.Number of circuits |
| 2 |
| Outdoor side noise level(Hi) | dB(A) | 60/57/55 |
| Refrigerant type | kg | R410A/0.43 |
| Design pressure | MPa | 4.2/1.5 |
| Plug type |
| 1.0x3/SAA |
| Control type |
| Remote control |
| Operation temp | indoor(cooling/heating) | ºC | 17-32/--- |
| outdoor(cooling/heating) | ºC | 18-43/--- |
| Application area | m2 | 11-18 |
| Dimension(W*D*H) | mm | 600x560x380 |
| Packing (W*D*H) | mm | 685x620x430 |
| Net/Gross weight | Kg | 35/39 |
| Loading quantity 20' /40' /40'HQ | Pieces | 135/285/342 |
