| Prod Model: |
QOMA-CD/1380 and QOMA-CD/1000 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Power Supply: |
Electric |
| Application: |
Household, Industrial, Greenhouse, Licestock, Poulty House and Workshop. |
| Power: |
>300W |
| Type: |
Ventilation Fan |
Product Description

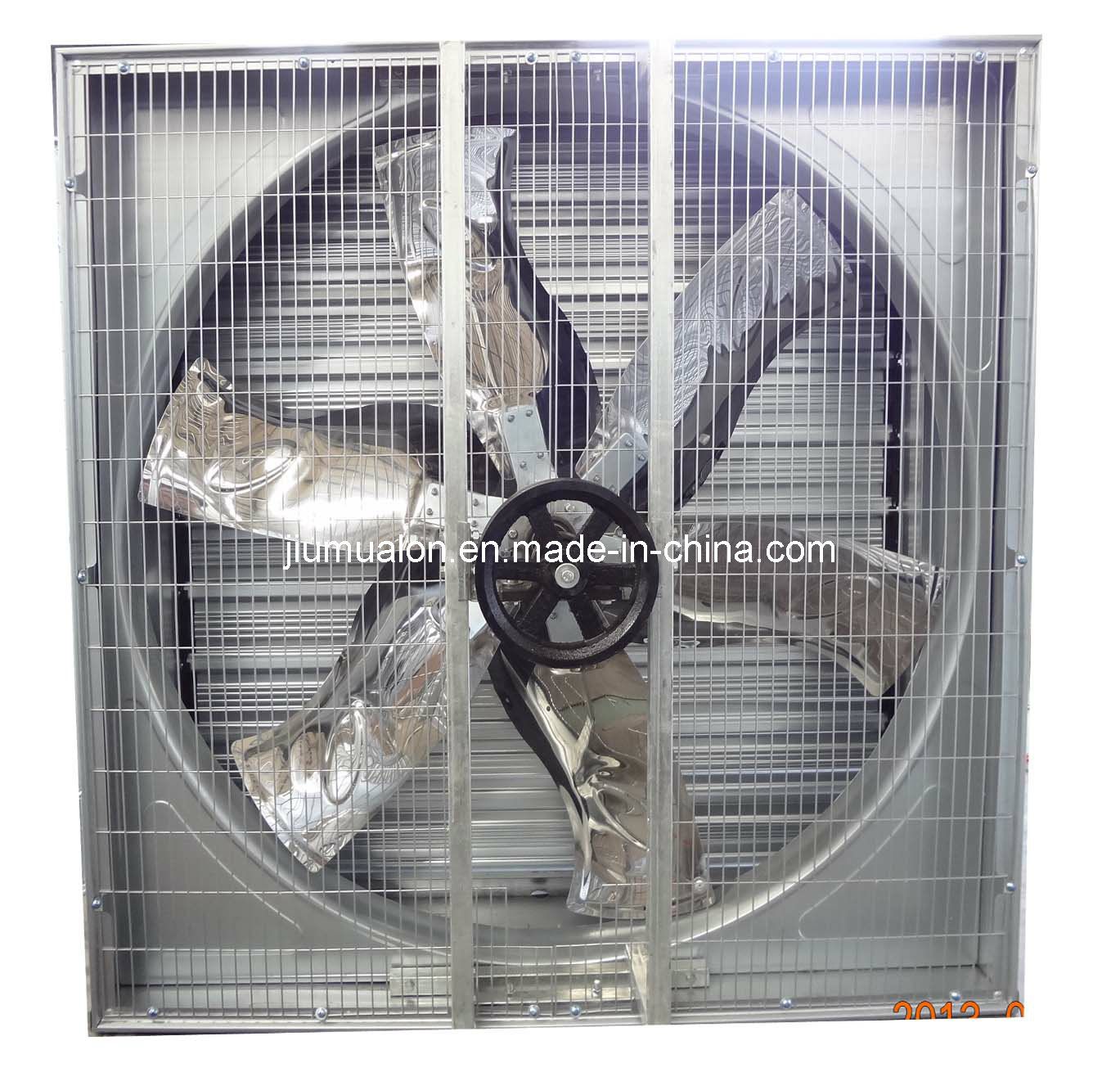

THTE TECHNICAL DATA OF COOLING FAN WITH MORE EFFICIENT
Fan frame: Hot galvanized sheet frame
Sheet thickness is 1mm(left and right is 0.8mm)
Zink thickness is 275G/M
2
Fan blades: Germany-imported mirror face stainless steel,
Fan blades No: 6
Fan Blade RPM: 460r/min
Fan blade Thickness: 1.2mm
Fan blade surfacegrfinishgrade.: BA
Blades all pass the balance test after assembled, which can assure steady running and even airflow during the operational life span of the life.
Fan motor: The high efficient and energy-saving Simens motor (others motor accordingly ).
Fan motor protection grade: IP55
Fan motor insulation class: F
Fan belts: Japanese Mitsubishi brand
Fan centrifugal system: Adopt high quality nylon PA66 to ensure the
Long service life. The fasteners of centrifugal
System all a copper rivets, wear-resisting and
No rust, flexible
Fan shutter: High strength hot-galvanized steel sheet, The middle shutter thickness is 1.5mm, others are 0.8mm, with a centrifugal system which can ensure he shutter Opens with the angle of 90 degree under all the condition Ensure the lowest air resistance and biggest air volume. When closing, the sealing can efficiently block light and Wind into the poultry farm house.
Free maintenance: The whole use period is all free maintenance
Performance: Cooling pad used together with better effect, it is used for longitudinal ventilation
|
Model |
Blade
/mm |
Frequency
/HZ |
Motor Speed(r/min) |
Capacity(cubic meters/h) |
power/w |
Noise(db) |
Voltage/v |
Size (mm) |
|
QOMA-DD/1000 |
910(36in) |
50 |
≥ 1400 |
20800 |
750 |
≤ 64 |
380 |
1000x1000x450 |
|
QOMA-DD/1380 |
1270(50in) |
50 |
≥ 1400 |
43170 |
1100 |
≤ 64 |
380 |
1380x1380x450
|
