| Prod Model: |
AS4028 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
PLC |
| CPU Card Size: |
Full-size Card |
| CPU Type: |
586 |
| Screen Size: |
11-15'' |
| Case Type: |
3U |
| Power Supply Type: |
ATX |
| Hard Disk Rack Type: |
Partition |
| System Expansion Slot: |
14 Slot |
| Touch Screen: |
Without Touch Screen |
| Installation: |
Wall-Mounted |
| Accessories: |
Passive Backplane |
| Application: |
Medical |
Product Description

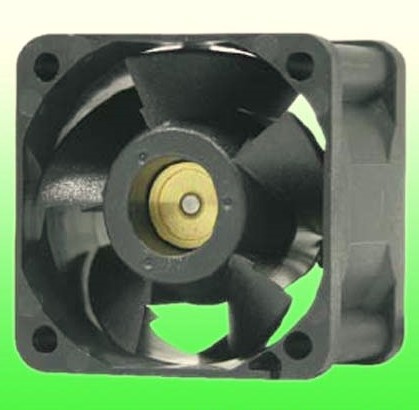

ADDA 40X40X28mm 12V DC fan AD4028DS
1. Frame size(mm): 40X40X28
2. Bearing type: Ball bearing
3. Max air flow: 25.7CFM
4. Max noise: 59dBA
|
1 |
Frame size(mm) |
40X40X28 |
|
2 |
Bearing type |
ball bearing |
|
3 |
Rated voltage |
12V |
|
4 |
Rated speed |
13000~16000RPM |
|
5 |
Max air flow |
25.7CFM |
|
6 |
maxiam pressure: |
50.8mmAq |
|
7 |
Maxiam noise |
59dBA |
|
8 |
Functions |
by impedance,by IC, FG,PWM,RD |
|
9 |
safety approvals |
CE,TUV,UL,cUL |
|
10 |
Electric Strength |
5mA msx at 1500VAC for 1 min between lead wire and frame |
|
11 |
Insulation Resistance |
10M ohm between lead wire and frame(DC 500V) |
|
12 |
Life Expectancy(Ball bearing) |
7000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
13 |
Life Expectancy(Hypro bearing) |
>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
14 |
Operation Temperature |
-10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F) |
|
15 |
Storage Temperature |
-40~75 degree C(-40~167 degree F) |
|
16 |
Protection |
Motor protection and polarity protection |
|
17 |
Lead wire |
UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 |
|
18 |
Plastic Material |
Black PBT (UL94V-0) glass fiber |
Shenzhen Wangjing Technology Co., Ltd. is a professional company in selling ADDA fans. ADDA products are with low noise, low power consumption, long life and high air flow. Manufacturing factories have passed ISO9001, ISO14001, QS9000, TS14969 together with TUV, VDE, CSA, UL / cUL, CE, CCC quality certification.
ADDA product line includes: DC series cooling fan (DC FAN), AC series cooling fan (AC FAN), blower series cooling fan (BLOWER FAN), waterproof series cooling fan (waterproof), VGA cooler, high air flow high pressure series fan...Products are widely used in communications equipment, power supplies, medical equipment, security equipment, industrial equipment, instrumentation, automotive and other products.
