| Prod Model: |
YPK |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Black Panel: |
12000BTU to 14000BTU |
| Self-Evaporative: |
Four Way Caster |
| C Shape Condenser: |
Compact Body |
| New Design: |
Popular Model |
| Type: |

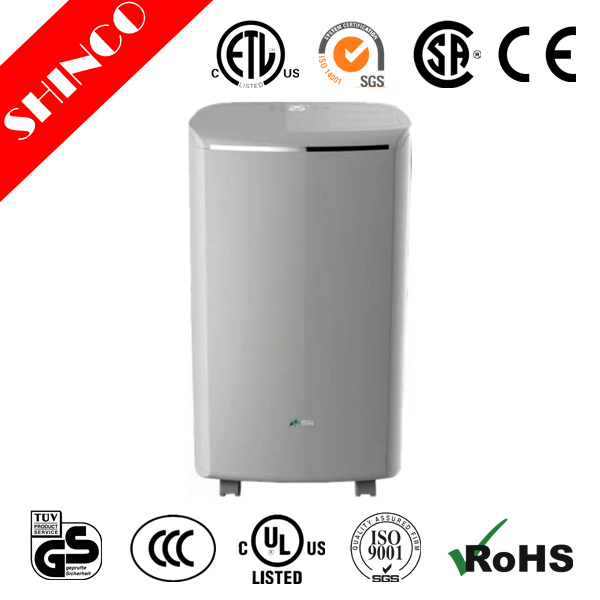

Portable Air Conditioner |
| Capacity: |
12000-15000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
>50dB |
| Certification: |
BEB |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
DC |
| Condition: |
New |
Product Description
Model | Cooling capacity |
| YPK-12C | 12000BTU/3500W |
| YPK-14C | 14000BTU/4100W |
Features
1. Self-evaporative, new generation, Water generated inside is
reused , no need to empty water, power saves.
2. C shape Condenser, make body compact and high efficient.
3. High loading quantity is about two times than normal, save
logistics cost.
4. Easy to install exhaust hose to the unit.
5. Self-diagnosis function and 24 hour ON/OFF timer.
6. With four way caster, easy to move.
|
European Market | North American Market |
| Model | Unit | YPK-12C | YPK-12C | YPK-14C |
| Cooling capacity | Btu/h | 12000 | 12000 | 14000 |
| W | 3516 | 3500 | 4100 |
| Heating capacity | Btu/h | 13000 | 13000 | 15000 |
| W | 3810 | 3800 | 4400 |
| Power Supply | V~,Hz,Ph | 220-240,50 | 115,60 | 115,60 |
| Rated input | Cooling | W | 1400 | 1265 | 1455 |
| Rated Current | Cooling | A | 6 | 11 | 13 |
| Rated input | Heating | W | 1300 | 1200 | 1300 |
| Rated Current | Heating | A | 5.6 | 10.5 | 11.5 |
| EER for Cooling(R410A) | Btu/W.h | 8.91 | 8.5 | 9.6 |
| W/W | 2.61 | 2.5 | 2.9 |
| COP for Heating(R410A) | Btu/W.h | 10.2 | 9.5 | 11.5 |
| W/W | 3 | 2.8 | 3.2 |
| Moisture Removal | L/h | - | 1.56 | 1.34 |
| Air Circulation | m³/h | 440 | 460 | 460 |
| Noise | High | dB(A) | 56 | 56 | 56 |
| Middle | dB(A) | 54 | 54 | 54 |
| Low | dB(A) | 52 | 52 | 52 |
| Body Size | W×H×D | mm | 353×420×796 | 353×420×796 | 353×420×796 |
| Package Size | W×H×D | mm | 442×482×870 | 442×482×870 | 442×482×870 |
| Net Weight/Gross Weiht | kg | 29/35 | 29/35 | 29/35 |
| Appliation Area | m2 | 35~40 | 25~30 | 35~40 |
| Loading Quantity | Set/40"HQ | 375 | 375 | 375 |
| Set/40"GP | 250 | 250 | 250 |
| Set/20" | 120 | 120 | 120 |
| Remarks: : 1.The above technical data are for reference only. Yoau reserves the right to modify them without notice |
| 2. If you want to use the above data for artwork of carton, user manual etc, please ask Yoau for confirmation. |
Thia parameter is for Europen market, we also have US market, pls enquire from us.
