Containerized Compact Design Energy and Cost Saving Block Ice Machine Ice Maker for Block Ice 5ton/24h
| Price: |
US $ 29999/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
IBC5T-R2W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Block Ice Machine |
| Capacity: |
5000kg/24h |
| Cooling Mode: |
Air Cooled |
| Refrigeration Capacity: |
48.8kw |
| Total Power Consumption: |
28kw |
| Ice Shape: |
Ice Block |
| Certification: |
SGS |
| Condition: |
New |
| Application Fields: |
Cooling Processing |
Product Description
Product Description

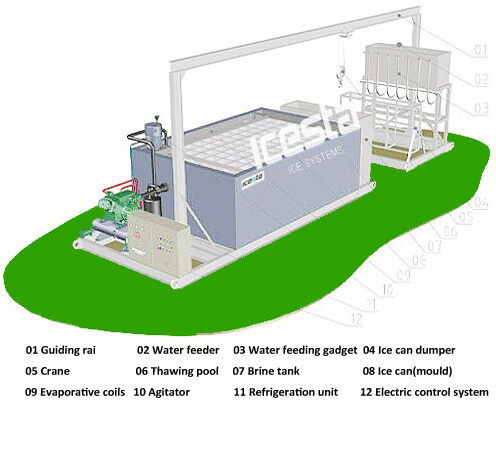

China Best TOP Manufacturer 5T/24h Brine cooling Block ice machine for concrete cooling, fishery, ice distribution factory
Icesta block ice machines adapt famous name brand components,like Germany Bitzer compressor, Korea vibration eliminator, Danfoss valves, Schneider electrics, Korea LG PLC or Germany Siemens PLC and touch screen, definitely make sure the robust quality of machine.
Model Parameters | IB2T-R2W | IB3T-R2W | IB5T-R2W | IB10T-R2W |
| | | | |
Compressor Model | 4TES-9 | 4JE-15 | 6HE-28 | 6HE-28*2 |
Design capacity | 2000kg/24h | 3000kg/24h | 5000kg/24h | 10000kg/24h |
Refrigeration capacity | 17.9kW | 27.4kW | 48.8kW | 97.6kW |
Evaporating temp. | -15ºC | -15ºC | -15ºC | -15ºC |
Condensing temp. | 40ºC | 40ºC | 40ºC | 40ºC |
Total input | 9.13 kW | 15.27 kW | 27.85 kW | 50.5kW |
Power of compressor | 6.7 kW | 11.9kW | 18.6 kW | 18.6*2 kW |
Water pump of cooling tower | 0.75kW | 1.5kW | 2.2kW | 5.5kW |
Power of cooling fan | 0.18 kW | 0.37 kW | 0.75kW | 1.5 kW |
Water pump input | 1.1 kW | 1.1kW | 2.2 kW | 2.2 kW |
Power of electric hoist | 0.4kW | 0.4kW | 0.4kW | 0.4kW |
Agitator | | | 3.7 kW | 3.7 kW |
Power supply | 380V/3P/50Hz |
Water feeding pressure | 0.1Mpa-0.5Mpa |
Refrigerant | R22 |
Design ambient temp. | 30ºC |
Design water inlet temp. | 20ºC |
Ice temp. | -10ºC |
Each weight of the block ice | 25kg |
Dimension of ice | 390*120*600 |
Each freezing time | 11h | 11h | 11h | 11h |
Each doff ice time | 0.4h | 0.4h | 0.5h | 0.8h |
Ice Machine Diameter | 1800*1000*1350 | 1800*1000*1350 | 2050*1000*1370 | 2160*1400*1940 |
Dimension of cooling tower | φ920*1830 | φ1165*1645 | φ1385*2150 | φ1880*2120 |
Unit weight | 5.5t | 6t | 7.5t | 9t |
Unit Operating Weight | 9t | 10t | 13t | 16t |
