Product Description

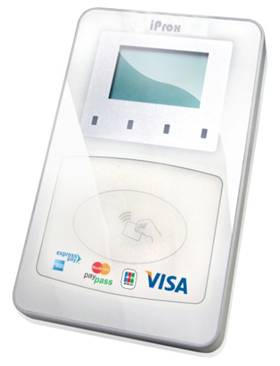

Designed to be stylish, the iProx has a unique semi transparent light in a large circular form at the contactless reading area to ensure that the transaction status can be easily noticed. It supports Mifare cards, ISO 14443 Type A and B contactless smart cards. There reader is certified with MasterCard PayPass, Visa payWave program and JCB J/Speedy contactless program. The iProx is built to be flexible and modular with a maximum memory capacity of 8MB Flash and 2MB SRAM. This large memory ensures full support in multiple applications in the same reader. It can be easily be integrated with existing EDC terminals, ECRs and PCs via the USB, RS232 or RS485 interface. Also, the overylay, cable and casing are all customizable.
Features:
- Support Mifare cards and ISO14443 type A/B cards
- Comply with MasterCard® PayPass™ (contactless Mag Stripe and M/Chip)
- Comply with Visa® (contactless MSD/Wave)
- Enable quicker transactions in a secure environment
- Easy integration with POS and ECR systems
- Large memory capacity: Maximum 8MB Flash and 2MB SRAM
- Support USB or RS232 or RS485 interface
- Built in 4 SAM slots
- 8 Programmable LEDs (4 on the front side and the other 4 on the rear side)
- Large LCD(128*64) with backlight
Typical Applications:
- Point of sales
- E-purse
- Ticketing
- Automatic fare collection
- Transportation
- Parking and toll collection
- Loyalty
- PC Logon
- Internet Transaction
- Internet Access
- Identification and physical access control
- Mobile Payment (via the NFC)
Specifications:
- Dimension: 166.20mm(L) x 107.70mm(W) x 31.20mm(H), 6.1in(L) x 4.2in(W) x1.6 in(H)
- Weight: Approx 270g (0.60 pounds)
- Housing Material ABS
- Cable: Connecting iProx to a host, EFTPOS or terminal. It is optional and customized is accepted.
- Power Input: : AC110V/220V Adapter
- Power Output: 500mA/ DC9V
- Host Interface: RS232 (Communication speed: Up to 115200 bps), Full speed USB (12M bps), RS485(optional)
- Contactless Card Interface: Mifare classic protocol ISO14443 type A & B (T=CL)
- Working frequency: 13.56Mhz
- SAM Card Interface: Up to 4 SAM Slots. Comply with ISO7816-3 T=0 and T=1 protocol
- Human Interface: 8 LED indicators, 128x64 dot matrix graphics
LCD with back light
- Environmental Operation temperature: 0º C ~ 50º C
- Storage temperature: -15º C ~ 70º C
- Contrary humidity: 20% ~ 90%
