| Prod Model: |
EZWave104R, EZWave104U |
Product Description

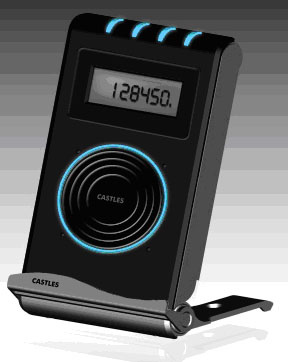

EZWave is a stylish, compact, high performance and cost-effective contactless reader which supports Mifare cards and ISO 14443 Type A/B cards. It supports either USB or RS232 interface and is also designed to ease the integration into any type of equipment for different kind of applications and environment. It has 4 SAM slots which will enhance the security and also allow multiple applications to be configured on the same reader. The LCD display can support graphics with normal (8x16) and large (13x24) font. Users can also program 4 LEDs for different functions. Plus, there is a large blue circular light sensor which functions as an indication of the position to wave the contactless cards and at the same time show the data processing status. EZWave is designed with a unique adjustable stand and also can be wall-mounted.
Features:
- Support Mifare cards and ISO14443 type A/B cards
- Support USB or RS232 interface
- Built in 4 SAM slots
- 4 Programmable LEDs
- LCD can display normal font (8*16) and big font (13*24)
- Stylish and compact design
- Communication distance up to 10cm
- Supports all current and emerging international standards
- Unique large blue circle light sensor and show the data processing status
- Removable card holder design
- On / off power switch
- 3 adjustable angles(0° /45°/75°) of foot stand for various placement.
- Wall-mountable
- Support Windows operating system include 98, ME, 2K and XP
Typical Applications:
- Point of sales
- Automatic fare collection
- Parking and toll collection
- Ticketing
- PC Logon
- Identification and physical access control
- Transportation
- E-Commerce
- Internet Access
Specifications:
- Dimension: 141mm(L) x 106mm(W) x 22mm(H)
- Weight: Approx. 200 g
- Housing Material: ABS
- Cable Length: 180 cm
- Power: RS232- Powered by keyboard interface (PS/2) or via external AC adaptor 110/220V, USB - Through USB bus 5V +5‰ , Power consumption: 220mA (max. )
- Host Interface: RS232 (communication speed: Up to 115200 bps), Full speed USB (12M bps)
- Contactless Card Interface: Mifare classic protocol, ISO 14443 type A & B (T=CL), Working frequency 13.56 MHz, Communication speed up to 424K bps, Operating distance about 10 cm
- SAM Card Interface: Comply with ISO 7816-3 T=0 and T=1 protocol, Communication speed: SAM 1 up to 115, 200 bps, SAM 2-4 up to 38, 400 bps
- SAM Card Connector: Up to 4 SAM slots, minimum 5, 000 insertions
- Human Interface: 4 LED indicator, 122x32 dot matrix graphics LCD with backlight
- API/SDK: Propriety SDK for Windows OS, Other OS: Upon request
- Environmental: Operation temperature: 0-50º C, Storage temperature: -15-70º C, Contrary humidity: 20-90‰
