| Prod Model: |
PD-1102/PD-1200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

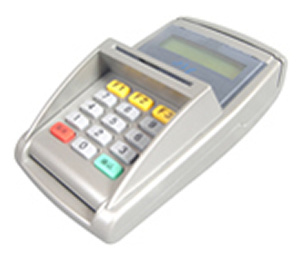

Product Name / Picture PD Multifunction Desktop series (in line with EMV2000 Level 1, Social Security specification)
Non-contact reading and writing area (1)
Standard ISO14443-TypeA
Operating Frequency 13.56MHz
Smart card read / write rates of 106kbps
Support Card Type mifare ® Std 1k, mifare ® Std 4k, mifare ® UltraLight, mifare ® DESFire mifare ® PRO, FeliCa RF interface, mifare ® Classic, Fudan University, Watchdata, G & D and other CPU Cards
Sensing range 0-20mm
Contactless Card Interface
Standard ISO7816, ISO18092
CARD-contact IC card slot 2, SAM card slot 2 (up to 4), magnetic stripe card slot 1 (read-only two or three tracks, to support high-low draw card)
Support Card Type ISO7816: T = 0, T = 1 Smartcard
MEMORY: AT24CXX, AT88SC102, AT88SC1604, SLE4442/SLE4428 Series
Computer Interface
Means of communication RS232 serial communication, USB1.1/HID
Parameters USB port to take power, 5V, baud rate 38400BPS
Man-machine interface
122x32 DOT matrix LCD display, 4x15 characters, 2x7 Chinese characters
Monotonous tone buzzer
Voice prompt Please enter your password, please enter your password again
15-bit password key keypad, 10 numeric keys, 5 function keys
Operating temperature 0 ° C to 50 ° C
Dimensions 172x90x40mm
Development Kit
Demo Tools
Development Documentation
Driver support Windows98, 2000, XP
Demo sample Visual C + +6, Visual Basic5, Dephi5, PowerBuilder5, C #, Visual C + +. Net
Typical applications banks, shopping malls, chain membership
