| Prod Model: |
KD100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
SD Card |
| Interface: |
RS232 |
| Card Slots: |
All in 1 & Multi in 1 |
| Installation: |
External |
Product Description

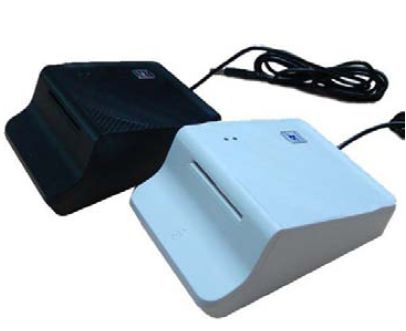

KD-100 Contact Reader
Product Description
KD-100 series is a contact reader accord with the Ministry of Construction, the social security standard certification and certified by PBOC2.0 Level1 and EMV2001 Level1. Support for ISO7816 contact card, also support HID, PC/SC, CCID Communications, with multiple PSAM card slot.
The USB full equipment designed for PC environment, also it's the bridge of smart card communicate with computers.
Features
Contact Card Interface: ISO/IEC 7816-1/2/3 Standard CPU card;
Contact Card Communication Rate: Support PPS(Protocol and Parameters
Selection), reading and writing speed of 9600-115200 BPS;
Communication Protocol: Support T=0, T=1 CPU Card, SLE4442/4428, 24C Series;
Communication Interface: USB, RS-232;
Human-machine Interface: A light to indicate power and operational status;
Certification: ISO/IEC 7816-1/2/3, GSM11.11, FCC, CE.
Application
Social security, network access control, e-bank and online shopping, e-cpmmerce, e-purse balance inquiries, software lock, digital signatures, customer bonus and promotions.
|
Parameter |
Index |
|
MP(Main Processor) |
32-bit processor, the frequency of not less than 70MHz |
|
IC card reader module |
An IC card reader, ISO 7816 standards |
|
SAM card connector |
2 SAM card |
|
RS232 port |
1 RS232 port |
|
USB Interface |
1 USB Full- speed Interface |
|
Humidity |
40%~80% |
|
Voltage |
USB automatically take power, DC 5V |
|
Current |
300mA |
|
Operating System |
Win2000/2003/XP/Vista/Win7 |
