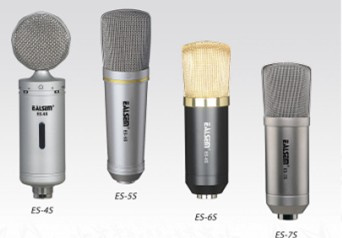

| Prod Model: |
ES-4s |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colour: |
Black/Blue/Red/Green |
| Signal Transmission: |
Wired |
| Application: |
Recording |
| Directivity: |
Uni-direction |
| Transducer Principle: |
Condenser Microphone |
| Sound Field Force: |
Combined Type |
Product Description
Element 34Pressure Gradient Transducer
Polar Pattern Uni-directional
Frequency Response 20Hz-20kHz
Sensitivity -34dB± 2dB (0dB=1V/PA at 1kHz)
Output Impedance 150Ω ± 30% (at 1kHz)
Load Impedance ≥ 1000Ω
Self Noise 16dB A Max.
Input SPL 132dB (at 1kHz ≤ 1% T. H. D)
S/N Ratio 78dB
Phantom Power Requirement 48V DC Phantom Power
Electrical Current 3mA
Net Weight 346g
Body Dimension 46X150mm
Enping Yixing Electronic Equipment Co., Ltd, a professional microphone manufacturer, is located in Enping city, Guangdong province, is famous for the hot spring and producing microphones, also with the convenient traffic and pretty view.
Yixing was founded in 1995. Since then, We have been devoted ourselves to exploiting, producing and selling microphone in order to push out fashionable and market demand products. We have also established OEM department, accepting special orders and providing special services according to the client's requirements. EALSEM are well known brand in China and abroad country. Exporting to Southeast Asia, South America, Africa, Middle East, Europe and Russia etc. After 10 year's development, Yixing have owned a group of experts in this field and supervisor, approx 200 workers, take 6000 square meters(In 2012 New buil 21000 square meters of new standard workshop), Advance producing instruments. With expanding scale, Yixing will come into being a producing system that include studying and developing products, Processing parts, Producing products, Inspecting and repairing. We will do our utmost to realize our goal that become a big producing scale, various products, scientific management group enterprise.
Face the keen marketing competition. Yixing have a good faith in high quality and honesty business, We are always hoping to cooperate and develop with you together for a mutual benefit. LOOK FORWARD TO YOUR ENQUIRY AND CONSULTANCY!
