Concrete Cooling Used Flake Ice Maker

Prod Model:	FIF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Compressor:	Bitzer/Bock/Copeland/Fusheng
Refrigerant:	R22/R404A
Cooling Mode:	Air Cooled/Water Cooled/Evaporative Cooled
Ice Size:	40*40mm
Ice Thickness:	1.5~2mm
Ice Shape:	Flake Ice
Certification:	CE
Condition:	New

Product Description

Focusun headquarter is located in Shanghai city, production and R&D team is located in Taizhou city, Jiangsu province, with more than 35,000 square meters of standardized modern plant. Our main products include all kinds of ice maker, cold storage, vacuum cooler, snow making machine, mine cooling system, etc.

There must be one product suits your business! Professional sales teams combined with excellent working experience production. Bring products from factory directly to you, cost of different marketing channels saving.

Flake ice feature:
The thin ice can be directly used for stirring and mixing refrigerated materials.
No acute edges and corners so it will not damage the surface of the cooled object.
Large contact area and fast cooling speed.
Easy to crush and mold.

Application fields:
Medicine
Man-made ice project
Food processing
Supermarket/hotel fresh keeping
Concrete moxing project
Fisheries and aquatic food processing

Focusun supply 3 types flake ice maker:
1. fresh water system;
2. seawater system;
3. 20ft/40ft containerized system;

Fresh water system flake ice maker:
small capacity: 500kg/day~3000kgs/day;

Model	Daily capacity	Refrigerant	Electric consumption	Installment power	Operating weight	Size (L×W×H)
FIF-05A	0.5T	R22/R404A	2.56kw	2.2kw	208kg	1200×740×590mm
FIF-08A	0.8T	R22/R404A	4.43kw	2.8kw	235kg	1200×740×650mm
FIF-10A	1T	R22/R404A	5.16kw	4.2kw	380kg	1200×740×780mm
FIF-12A	1.2T	R22/R404A	6.63kw	4.5kw	420kg	1400×960×780mm
FIF-15A	1.6T	R22/R404A	7.72kw	5kw	450kg	1560×1200×880mm
FIF-20A	2T	R22/R404A	11.17kw	6.5kw	480kg	1560×1200×960mm
FIF-25A	2.5T	R22/R404A	12.62kw	8kw	550kg	1560×1200×1150mm
FIF-30A	3T	R22/R404A	14.35kw	10kw	550kg	1560×1200×1150mm

medium capacity: 5000kg/day~20000kgs/day;

Model	Daily Capacity	Refrigerant	Electricity consumption	Install power	Operating weight	Size (L×W×H)
FIF-50	5T	R22/R404A	17.72kw	22kw	1250kg	2200×1050×1550mm
FIF-80	8T	R22/R404A	25.55kw	30kw	1800kg	3400×1550×1800mm
FIF-100	10T	R22/R404A	34.31kw	42kw	2200kg	3550×1550×2100mm
FIF-120	12T	R22/R404A	38.80kw	50kw	3000kg	3720×1650×2050mm
FIF-150	15T	R22/R404A	49.35kw	60kw	3200kg	4000×1850×2400mm
FIF-200	20T	R22/R404A	60.40kw	80kw	3600kg	4200×2000×2914mm

Large capacity: 25000kg/day~60000kg/day;

Model	Daily Capacity	Refrigerant	Electricity consumption	Install power	Operating weight	Size (L×W×H)
FIF-250	25T	R22/R404A	78.85	53KW	(unit):2500kg	2500×2000×2000mm
					(evaporator):3000kg	2050×1660×2450mm
FIF -300	30T	R22/R404A	102.45kw	125kw	(unit):4500kg	2800×2200×2200mm
					(evaporator):4500kg	2400×2000×3000mm
FIF -350	35T	R22/R404A	115.35kw	140kw	(unit):2800kg	2800×2200×2200mm
					(evaporator):4600kg	2400×2000×3200mm
FIF -400	40T	R22/R404A	147.35kw	180kw	(unit):3000kg	2800×2200×2200mm
					(evaporator):5500kg	2800×2400×3600mm
FIF -500	50T	R22/R404A	176.3kw	220kw	(unit):3200kg	2800×2200×2200mm
					(evaporator):6500kg	3000×2500×4500mm
FIF -600	60T	R22/R404A	214.9kw	280kw	(unit):4500kg	3400×2200×2200mm
					(evaporator):6500kg	3000×2500×4500mm

Seawater system Flake Ice Machine:
Marine Used Seawater Flake Ice Machine
Feature:
Adopt Bitzer deepened oil tank and marine used seawater condenser
Module design adopted with all spare parts welded
Onboard ice machine operates normally regardless of the vessel's pitching and rolling

Model	Daily Capacity	Refrigerant	Electricity consumption	Operating weight	Size (L×W×H)
FIF-50WB	5T	R404A	21.8kw	1120kg	2200×1050×1550mm
FIF-60WB	6T	R404A	22kw	1600kg	2150×1350×1580mm
FIF-80WB	8T	R404A	26kw	1800kg	2450×1650×1600mm
FIF-100WB	10T	R404A	34.3kw	3000kg	3550×1550×2100mm
FIF-150WB	15T	R404A	49.35kw	3400kg	4000×1850×2400mm
FIF-200WB	20T	R404A	68.4kw	3600kg	4200×2000×2914mm

Land Used Seawater Flake Ice Machine
Feature:
Use seawater as inlet water, which is mainly suitable for coastal areas
Adopt special anti-corrosion materials for pipes, deepened oil tank and marine used seawater condenser
A number of different daily capacities models are available

Model	Daily Capacity	Refrigerant	Electricity consumption	Operating weight	Size (L×W×H)
FIF-05	0.5T	R404A	2.5kw	530kg	1100×700×630mm
FIF-08	0.8T	R404A	3.67kw	560kg	1200×740×650mm
FIF-10	1T	R404A	4.3kw	620kg	1200×740×800mm
FIF-20	2T	R404A	7.15kw	680kg	1560×1200×960mm
FIF-30	3T	R404A	11.3kw	720kg	1700×900×1200mm
FIF-40	4T	R404A	14.94kw	780kg	1700×900×1201mm
FIF-50	5T	R404A	17.28kw	860kg	2200×1050×1550mm
FIF-60	6T	R404A	21.24kw	950kg	2200×1050×1606mm


Containerized flake ice machine
Focusun containerized flake ice maker is divided into two types: 20ft (5T/DAY~20T/DAY) and 40ft (25T/DAY~60T/DAY). Container integrated structure enables easiness on installation, transportation and production; Economically saving on operation and convenient maintenance.

Model		Daily  Capacity	Refrigerant	Electricity  consumption	Operating weight	Size (L×W×H)
20ft	FIF-50C	5T	R404A	17.72kw	3600kg	6058×2438×2591mm
	FIF-100C	10T	R404A	34.31kw	4700kg	6058×2438×2591mm
	FIF-120C	12T	R404A	38.8kw	5500kg	6058×2438×2591mm
	FIF-150C	15T	R404A	49.35kw	5500kg	6058×2438×2591mm
	FIF-200C	20T	R404A	60.41kw	6100kg	6058×2438×2591mm
40ft	FIF-250C	25T	R404A	78.85kw	6500kg	12192×2438×2895mm
	FIF-300C	30T	R404A	102.45kw	6800kg	12192×2438×2895mm
	FIF-400C	40T	R404A	147.35kw	8000kg	12192×2438×2895mm
	FIF-500C	50T	R404A	176.3kw	8500kg	12192×2438×2895mm
	FIF-600C	60T	R404A	204.9kw	9200g	12192×2438×2895mm

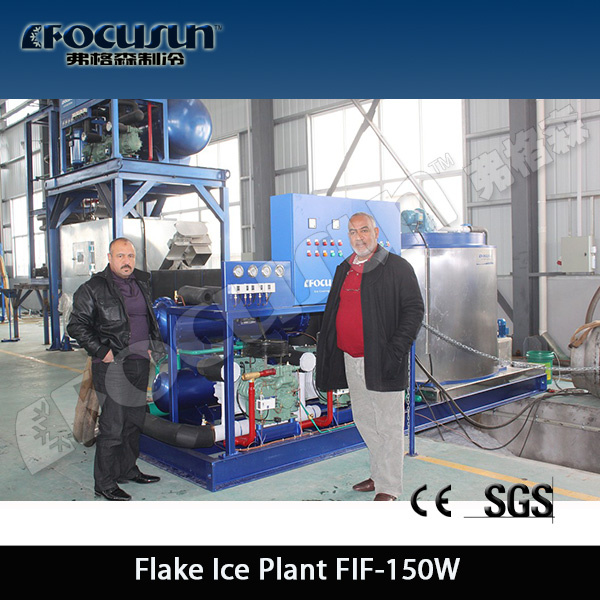

  Pic. of pur products:




To suggest you a suitable flake ice maker, please tell us your needs (as specific as possible), like wanted daily capacity, ice usage, ie maker location, etc..

PS: Standard ice maker is designed on 33ºC dry ball temp. and 25ºC water temp. (If temp. different, please inform us when enquiry, can be customized. If your local temp. very very high, above 45ºC, don't worry, just let us know, we'll provide you right solution.

FAQ:
Q1: How many steps can I get the machine from your factory to my hand?
a. send us enquiry, tell us your demand as specific as you can;
b. phone/online communication → the most suitable models suggested → design drawings → comments & modification → quote;
c. visit factory if required,
d. down payment → production → balance payment → delivery;
e. local preparation ready → engineers fly to installation if needed → after sales;
Q2: Production time?
It usually takes 38~45 working days to produce since the day when we confirm your down payment, for series equipments may need more days, will inform you before order.
Q3: Payment method?
100% TT is preferred, 50% TT before production, the balance 50% before delivery.
You're invited to visit our official website www.focusun.com, if any other questions, please don't hesitate to contact us, we're glad to help with your business project!

Perfect service system:   All Focusun ice machines come out with 15 months full warranty. If the machine breaks down in 15 months, Focusun will send the parts for free, even send the technician over if situation needed. When beyond the warranty, Focusun will supply the parts and service only for factory cost.
Process:	Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:	Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
A	We will dispatch our Quality and Problems Appraisers to make a confirmation.
B	Have a negotiation of the compensation and sign agreements
C	Our After-Sales Department will perform the duties as the agreement
